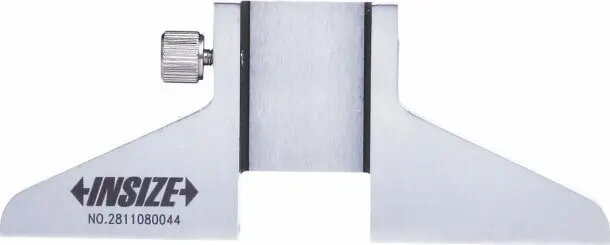

Depth Gauge Base INSIZE 6140 — accessory base for depth calipers, stable support for precise depth measurement

INSIZE 6140 depth gauge base is an accessory designed to provide a stable support for depth calipers and depth gauges. It offers a flat, rigid reference surface that helps reduce measurement variability and enables repeatable depth readings. The base is intended for workshop and quality-control environments where a controlled contact surface improves measurement accuracy and instrument stability.

Advantages

The accessory base creates a consistent datum for depth measurements, minimising errors caused by uneven contact or hand instability. Its rigid construction ensures the measuring instrument sits firmly, improving repeatability of results. The base is compact and simple to position, allowing quick setup and consistent alignment with depth calipers and gauges. Using a dedicated base reduces the need for improvised supports and helps maintain instrument calibration by avoiding uneven loads.

Suitable for

• Workshop depth measurements on parts, slots, and recesses
• Quality-control inspections requiring repeatable depth readings
• Use with depth calipers and dedicated depth gauges to improve stability
• Lab or inspection benches where a flat reference surface is needed

When it may not be suitable

The INSIZE 6140 base is intended as a reference support and does not replace full metrology stands or specialised fixtures for highly constrained measurement tasks. It may not be appropriate for measuring very large components where the base cannot be positioned to support the instrument adequately. For applications requiring traceable calibration certificates for the accessory itself, check with the supplier whether calibration options are available.

Key specifications

• Function: stable accessory base for depth measurements
• Reference surface: flat, rigid contact area for depth gauges
• Compatibility: designed for use with depth calipers and depth gauges
• Typical use environment: workshops, inspection benches, quality-control stations
• Design emphasis: stability and repeatability of depth readings

How to use

Place the INSIZE 6140 base on a stable, flat bench or fixture and position the depth caliper or depth gauge so its measuring rod or probe rests against the base's reference surface. Align the instrument over the feature to be measured, lower the measuring rod into the recess or slot until it contacts the workpiece, and read the depth value from the instrument display or scale. Ensure the base and the workpiece are clean and free of debris to maintain accurate contact and repeatability.

What to consider before purchase

• Ensure the base dimensions and reference surface suit the size of parts and measuring instruments you use
• Confirm compatibility with your depth caliper or depth gauge model
• Assess whether a simple accessory base meets your accuracy and traceability requirements or if a calibrated fixture is needed

Usage recommendations

Use the INSIZE 6140 base on a clean, level surface and verify instrument alignment before each measurement. Regularly inspect the base reference surface for wear or contamination, and handle the accessory to avoid knocks that could affect flatness. For critical measurements, combine the base with stable fixturing and follow laboratory calibration procedures as required.
