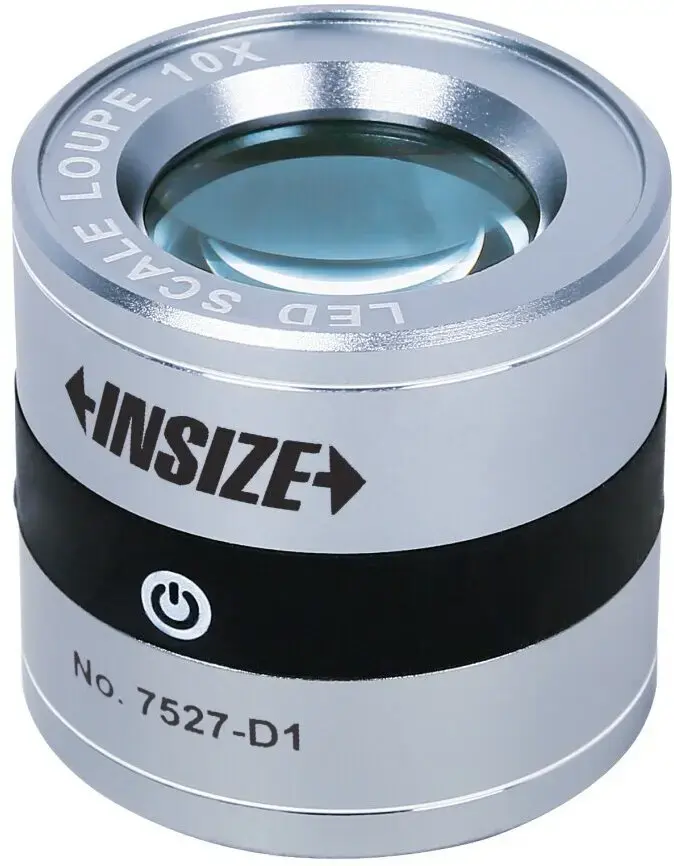

Insize 7527-D1B Measuring Magnifier 10x with 12-0-12 mm Scale and 0.1 mm Graduation

The Insize 7527-D1B measuring magnifier is a professional optical instrument designed for high-precision inspection and measurement tasks. Featuring a 10x magnification power, this tool allows users to examine small components, surface finishes, and fine details with exceptional clarity. It is equipped with a precise glass reticle featuring a 12-0-12 mm scale and a 0.1 mm graduation, ensuring reliable and accurate measurements for industrial and laboratory environments.

Advantages

This measuring magnifier offers superior optical performance, providing a sharp and undistorted view across the entire field of vision. The robust construction ensures durability in demanding workshop conditions, while the integrated scale allows for immediate measurement without the need for additional tools. Its ergonomic design facilitates comfortable handling during extended inspection sessions, making it an essential asset for maintaining quality standards in precision engineering.

Suitable for

• Quality control and inspection of small mechanical parts
• Laboratory analysis and research
• Precision engineering and manufacturing
• Verification of printed circuit boards and electronic components
• General surface inspection and measurement

When it may not be suitable

This magnifier is not intended for applications requiring extremely high magnification levels beyond 10x. It is also not suitable for measuring large objects that exceed the 24 mm total range of the integrated scale.

Key specifications

• Magnification: 10x
• Scale range: 12-0-12 mm
• Graduation: 0.1 mm
• Optical type: Measuring magnifier

How to use

To use the Insize 7527-D1B, place the base of the magnifier directly onto the surface of the object you wish to inspect. Adjust the focus ring until the image and the reticle scale appear sharp and clear to your eye. Align the zero mark of the scale with the edge or feature of the component you are measuring and read the dimension directly from the scale. Ensure the area is well-lit for optimal visibility.

What to consider before purchase

• Verify that the 10x magnification is sufficient for your specific inspection needs.
• Ensure the 24 mm total measurement range covers the dimensions of the parts you intend to measure.
• Consider the working environment to ensure the scale remains readable under your specific lighting conditions.

Usage recommendations: Keep the lens clean by using a soft, lint-free cloth to prevent scratches. Store the magnifier in a protective case when not in use to maintain the accuracy of the optical system and the scale.
