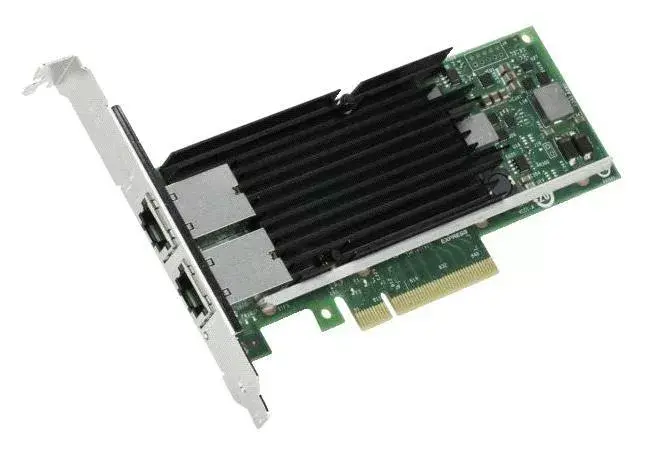

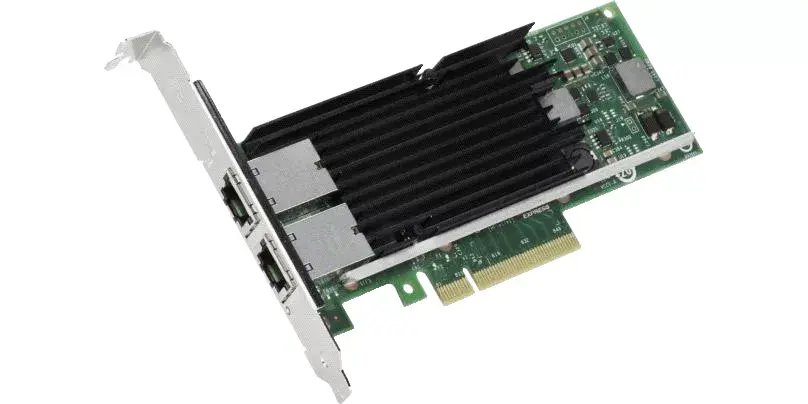

Network Card Intel X540T2 Internal Ethernet 10000 Mbit/s

Controller type:

Intel® Ethernet Controller X540

Cabling type:

RJ45 Category 6 up to 55 m; Category 6A up to 100 m

Harmonized System (HS) code:

8517620090

Export Control Classification Number (ECCN):

5A992C

Commodity Classification Automated Tracking System (CCATS):

G135872

Bracket height:

Low-Profile (LP) / Full-Height (FH)

Ports & interfaces

Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.

Wired

Interface: Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2.

Ethernet

Host interface: Interface that enables a host controller to communicate with a driver.

PCI Express

Internal: The product is built in.

Yes

Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

2

PCI version:

2.1

Bandwidth

Maximum data transfer rate: The maximum speed with which data can be transmitted from one device to another.

10000 Mbit/s

Network

Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.3ad, IEEE 802.3, IEEE 802.1Q, IEEE 802.1p

Chipset: Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.

X540

Ethernet LAN: An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.

Yes

Maximum operating distance: The maximum distance from which you can operate the device.

100 m

LAN controller:

Intel® X540

Ethernet LAN data rates: The different speed levels of the Ethernet LAN connection.

1000, 100, 10000

Antenna

Quality of Service (QoS) support:

Yes

Performance

Thermal power: The amount of heat that the device can generate. Often measured in watts (W).

13.4 W

Windows operating systems supported: Windows vesions wich can be used with the device.

Yes

Linux operating systems supported: 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)

Yes

Intel® Virtualization Technology (Intel® VT): Simplify Virtualization and Reduce Overheads Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other.

VT-c

Intel Virtual Machine Device Queues (VMDq):

Yes

PCI-SIG* SR-IOV Capable:

Yes

On-chip QoS and Traffic Management:

Yes

Intel Flexible Port Partitioning:

Yes

Speed & slot width:

5.0 GT/s, x8 Lane

Intelligent Offloads:

Yes

iWARP/RDMA:

No

Intel Ethernet Power Management:

No

Intel Data Direct I/O Technology:

Yes

Ethernet adapter ARK ID:

58954

Technical details

Number of QPI links:

0

Thermal Design Power (TDP):

13.4 W

Product type: The sub-category of the product.

Network Interface Card

Status:

Launched

Launch date:

Q1'12

Product name:

Intel Ethernet Converged Network Adapter X540-T2

Product brief URL:

http://www.intel.com/content/www/us/en/network-adapters/10-gigabit-network-adapters/ethernet-x540-t2-brief.html

Born on date:

Q1'12

Network interface card type:

Server

Network interface card cable medium:

Copper

Market segment:

Server

Last change:

64826822

Design

Product series:

500 Series Network Adapters (up to 10GbE)

Product family:

Intel 10 Gigabit server adapter

PCI Card form factor: Design of the PCI Card.

Half-height (low-profile)

Other features

Interface type:

PCIe v2.1 (5.0 GT/s)

Cable type: Type of cable e.g. electicity cable, optical cable.

RJ45 Category 6 up to 55 m; Category 6A up to 100 m

Compatible operating systems: List of desktop operating systems tested as compatible with this product.

https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html

Low halogen options available:

No

Intel Virtualization Technology for Connectivity (VT-c): Simplify Virtualization and Reduce Overheads Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other.

Yes

Storage Over Ethernet:

iSCSI, FCoE, NFS
