Net Toner and Probe Kit Intellinet 515566

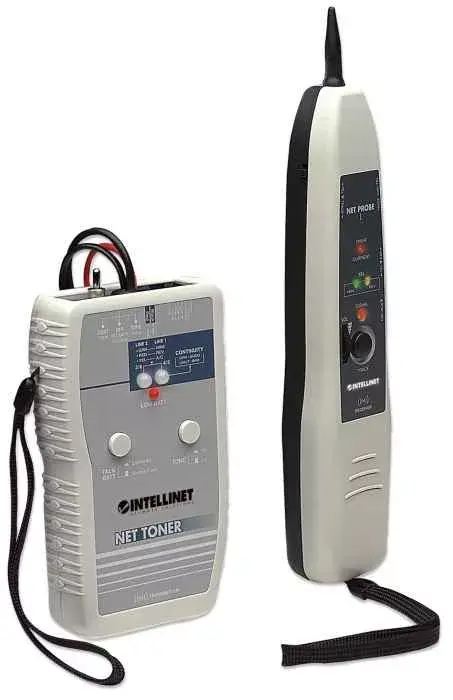

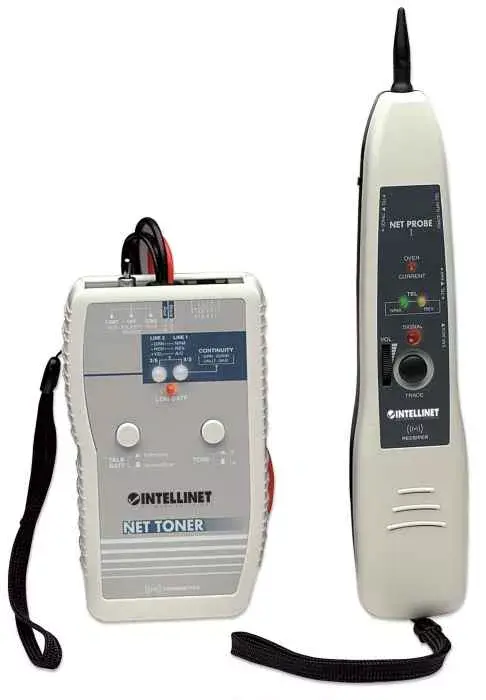

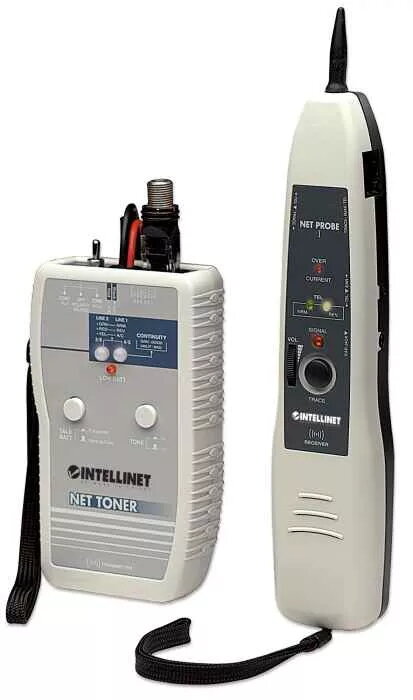

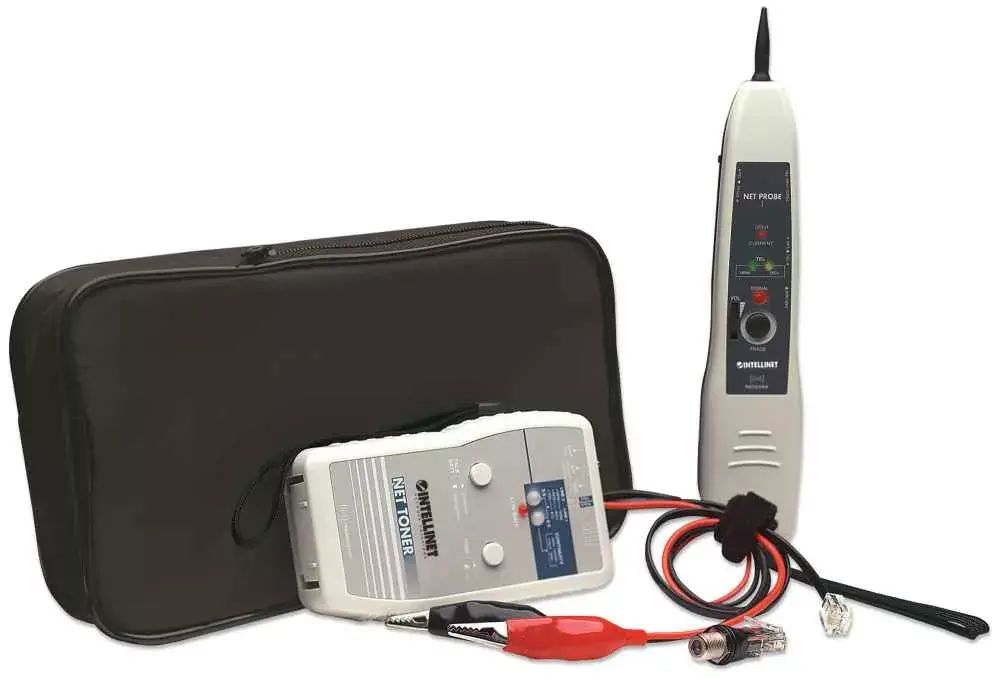

The Intellinet 515566 Net Toner and Probe Kit is a handheld toolset for locating and identifying cables and testing connectivity in datacom, telecom, security, video and audio networks. The kit includes a toner capable of single- or multi-tone output and a matching probe, along with a set of leads, modular cables and adapters supplied in a carry pouch. Powered by a 9V alkaline battery, the kit is lightweight and made for field use by network technicians.

Advantages

The two-position switch lets you select single-tone or multi-tone signaling for flexible cable tracing. LEDs indicate line polarity, continuity and presence of voltage to give quick visual feedback. An enhanced talk battery mode supplies power for voice communications over inactive pairs. The kit includes RJ45 and RJ12 connectors, alligator clips and a replaceable plastic probe tip to reduce the risk of accidental shorts. An optional F-connector is also available for coax tracing.

Suitable for

• Tracing and identifying individual wires and cable pairs in bundles
• Testing connectivity in datacom and telecom installations
• Verifying security, video and audio cable runs
• On-site troubleshooting and maintenance by network technicians

Key specifications

• Brand: INTELLINET
• Model / MPN: 515566
• Power: 9V alkaline battery
• Weight: approximately 480 g

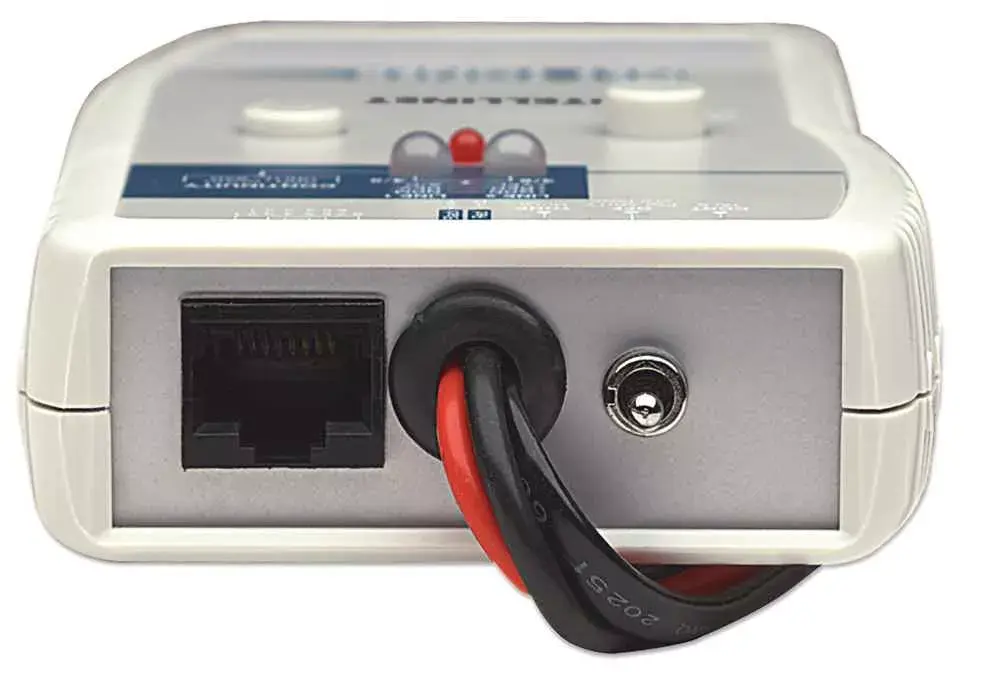

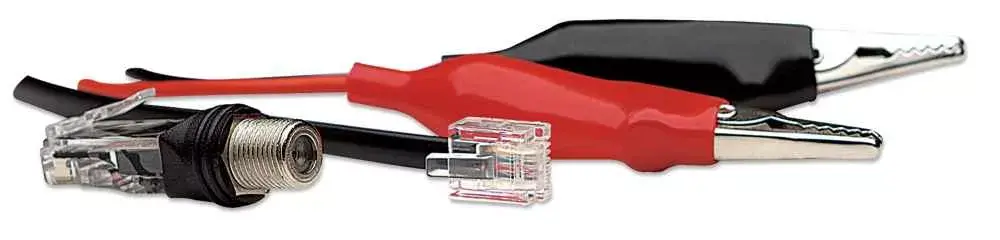

• Connectors included: RJ45 jack, RJ12 plug, alligator clips; optional F-connector
• Functions: single- and multi-tone generation, polarity/continuity/voltage LEDs, talk battery mode

How to use

Connect the toner to the cable or wire using the appropriate lead, jack or clip. Set the toner switch to single- or multi-tone as required and use the probe to follow the tone along the cable bundle until the target wire is located. Observe the probe LEDs to check line polarity, continuity or presence of voltage. Replace the probe's plastic tip if worn to maintain safe contact and avoid shorts. For voice testing on inactive pairs, enable the talk battery mode to provide the necessary power.

Usage recommendations

Use the replaceable plastic tip to prevent accidental shorts and always verify voltage presence with the LEDs before making contact. Store the kit in its carry pouch and remove the 9V battery for long-term storage to avoid leakage.
