AiO.lv Networking Equipment Security Systems Surveillance Cameras

IP security camera Hikvision DS-2DE3A400BW-DE(F1)(S5) Dome

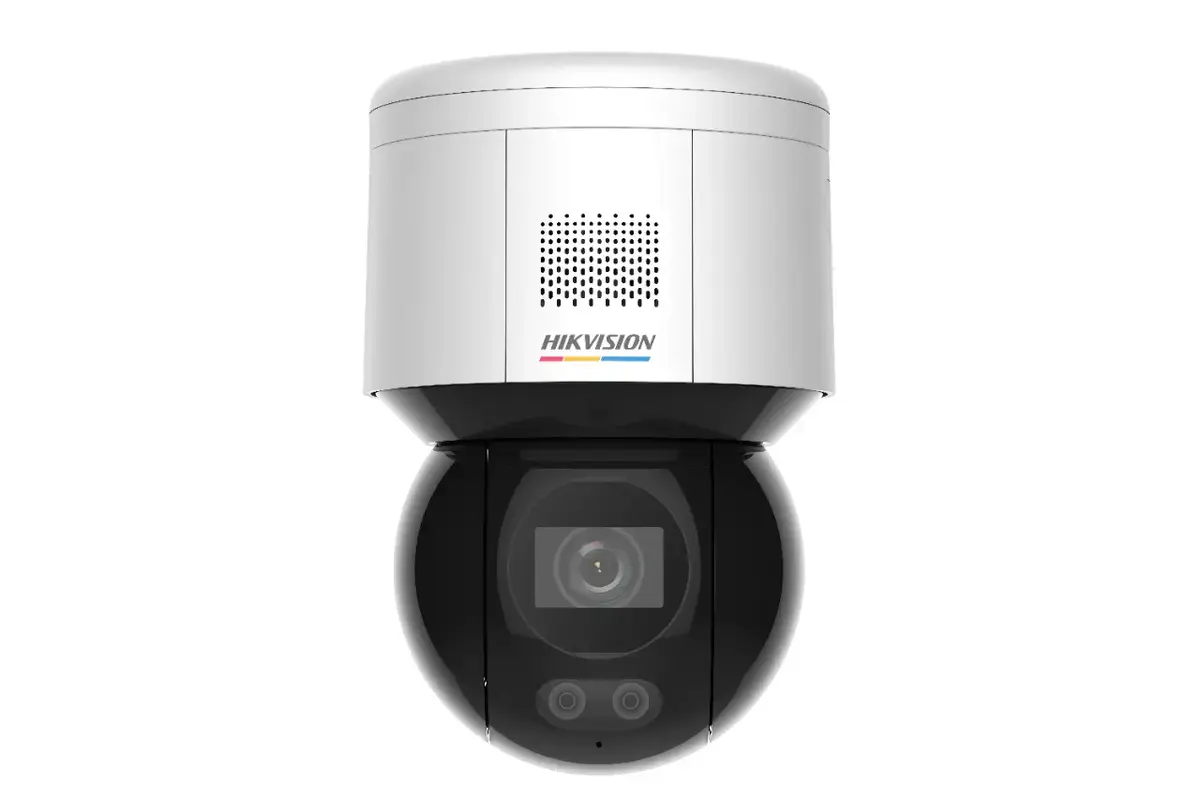

IP security camera Hikvision DS-2DE3A400BW-DE(F1)(S5) Photo 1

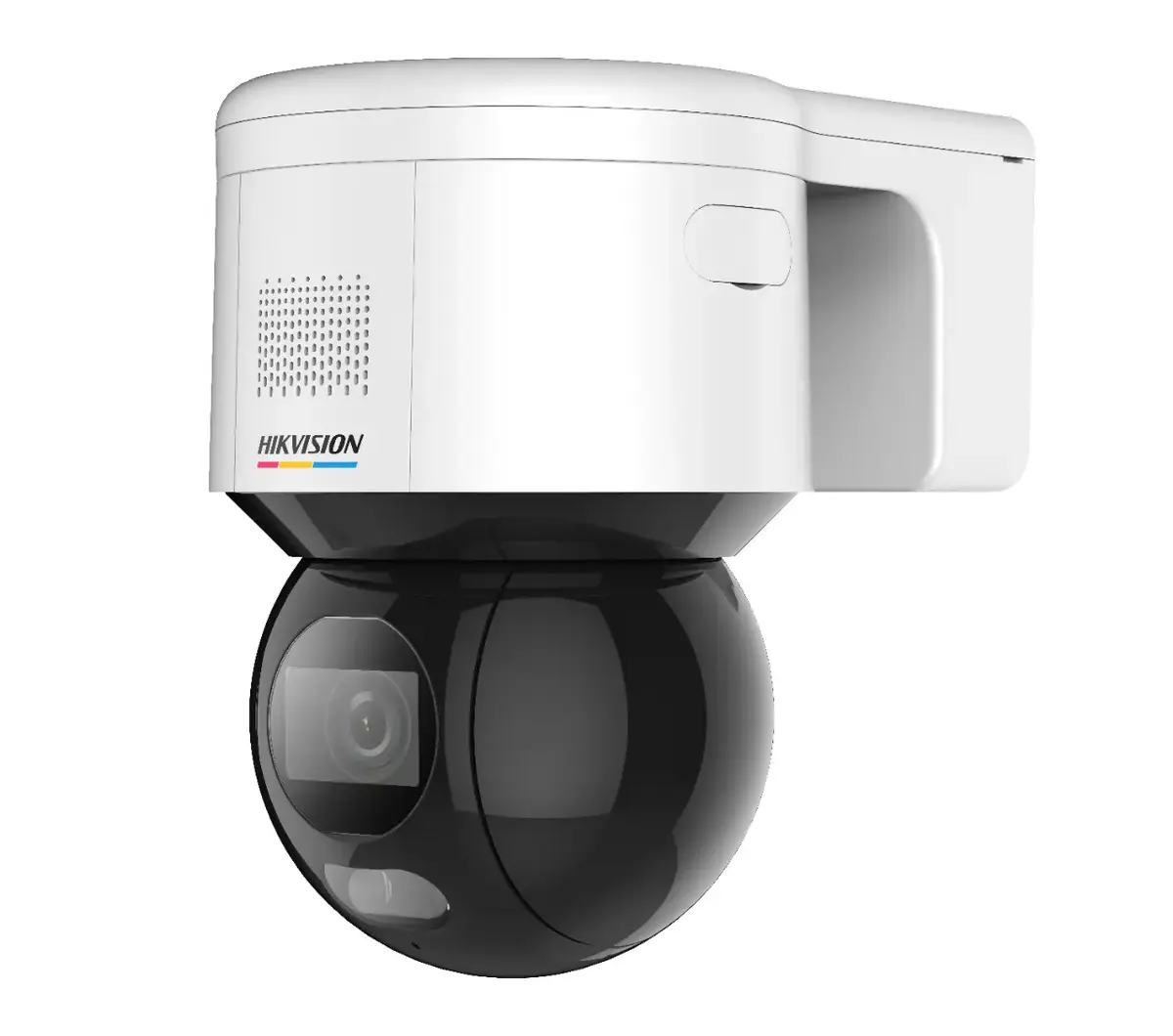

IP security camera Hikvision DS-2DE3A400BW-DE(F1)(S5) Photo 2
IP security camera Hikvision DS-2DE3A400BW-DE(F1)(S5) Photo 1
IP security camera Hikvision DS-2DE3A400BW-DE(F1)(S5) Photo 2
IP security camera Hikvision DS-2DE3A400BW-DE(F1)(S5) Photo 1
IP security camera Hikvision DS-2DE3A400BW-DE(F1)(S5) Photo 2
IP security camera Hikvision DS-2DE3A400BW-DE(F1)(S5) Photo 1
IP security camera Hikvision DS-2DE3A400BW-DE(F1)(S5) Photo 2
IP security camera Hikvision DS-2DE3A400BW-DE(F1)(S5) Dome
Out of stock.
View similar!
Out of stock.
View similar!

Short description

The Hikvision DS-2DE3A400BW-DE(F1)(S5) is a versatile IP security camera designed for both indoor and outdoor use. With a resolution of 2560 x 1440 pixels, it provides high-quality video surveillance. The camera features a dome form factor, making it suitable for ceiling or wall mounting. It offers a wide horizontal viewing angle of 88.7°, vertical angle of 46.5°, and diagonal angle of 105°. The CMOS sensor and 4 mm fixed focal length ensure clear images, while the 16x digital zoom allows for detailed observation.
Warranty: 2 Years
SKU: 11444569
delivery
Information regarding the items availability for purchase will be posted on this site
price
Item cost information will be published on this site
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Hikvision DS-2DE3A400BW-DE(F1)(S5) Dome is an IP security camera designed for indoor and outdoor video surveillance. It records video at a resolution of 2560 x 1440 pixels using a CMOS sensor and has a fixed 4 mm focal length. The dome form factor supports ceiling or wall mounting and the camera is available in a two-tone finish of black and white. Connectivity is wired via Ethernet LAN and the device supports video motion detection and digital zoom up to 16x for closer inspection of recorded scenes.

Advantages

This camera provides high-resolution 2560 x 1440 imagery suitable for general monitoring tasks, with a 30 fps frame rate for smooth motion capture. The dome housing provides a discreet installation that can be mounted on ceilings or walls and is specified for both indoor and outdoor placement. Wired Ethernet connectivity ensures a stable network link, while the built-in video motion detection assists in event-driven recording and alerting.

Suitable for

  • Small and medium-sized business perimeter and interior monitoring
  • Retail spaces and point-of-sale area surveillance
  • Office common areas, lobbies and corridors
  • Residential property entrances and driveways

Key specifications

  • Resolution: 2560 x 1440 pixels
  • Sensor: CMOS
  • Focal length: 4 mm (fixed)
  • Digital zoom: 16x
  • Horizontal viewing angle: 88.7°; Vertical viewing angle: 46.5°; Diagonal viewing angle: 105°
  • Frame rate: 30 fps
  • Placement: indoor and outdoor
  • Mounting: ceiling or wall
  • Connectivity: wired Ethernet LAN
  • Video motion detection: yes
  • Color: black and white
  • Weight: 1.125 kg

How to use

Install the dome on a suitable ceiling or wall surface using appropriate fasteners and ensure the camera is positioned to cover the desired field of view within its 88.7° horizontal and 46.5° vertical angles. Connect the camera to a network switch or recorder via Ethernet cable to provide power and data (or use a separate PoE injector if required by your installation). Configure network settings and enable motion detection in the camera’s web interface or management software, set recording schedules and adjust digital zoom when reviewing footage to inspect details.

Usage recommendations

Place the camera at a height and angle that avoids direct exposure to strong light sources to maintain image clarity. For outdoor use, mount under an overhang where possible to reduce direct weather exposure. Regularly check firmware updates and test motion detection sensitivity to reduce false alerts while ensuring important events are captured.

Specifications

Frame rate:
30 fps
Weight:
1.125 kg
Ethernet LAN:
Yes
Wi-Fi:
No
Video motion detection:
Yes
Placement supported:
Indoor & outdoor
Connectivity technology:
Wired
Mounting type:
Ceiling/Wall
Type:
IP security camera
Product colour:
Black, White
All features

Camera

White balance:
ATW, Auto, Fluorescent, Indoor, Manual, Outdoor, Sodium lamp
Camera shutter speed:
1/1 - 1/30000
Minimum illumination:
0 lx
Tilt angle range:
0 - 90
Pan range:
0 - 350
Pan speed:
60 °/sec
Tilt speed:
50 °/sec
Camera pan control:
Yes
Camera tilt control:
Yes
Lens viewing angle, horizontal:
88.7
Lens viewing angle, vertical:
46.5
Lens viewing angle, diagonal:
105

Image sensor

Sensor type:
CMOS
Optical sensor size:
25.4 / 1.8
Progressive scan:
Yes
Number of sensors:
1

Lens system

Digital zoom:
16 x
Zoom capability:
Yes
Maximum aperture number:
1
Fixed focal length:
4 mm
Number of lenses:
1

Video

Maximum resolution:
2560 x 1440
Video compression formats:
H.264, H.264+, H.265, H.265+, M-JPEG
Noise reduction:
Yes
Frame rate:
30 fps
Supported graphics resolutions:
352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2560 x 1440
Supported video modes:
240p, 480p, 576p, 720p, 1080p, 1440p
Video formats supported:
H.264, H.264+, H.265, H.265+, M-JPEG
Total megapixels:
4 MP
Image quality adjustment:
Brightness, Contrast, Saturation, Sharpness
Back Light Compensation (BLC):
Yes
Video streaming:
Yes
Privacy masking:
Yes
Gain control type:
Auto
Highlight Compensation (HLC):
Yes
Region of Interest (ROI) encoding:
Yes
Noise reduction technology:
3D noise reduction

Audio

Built-in microphone:
Yes
Signal-to-Noise Ratio (SNR):
52 dB
Built-in speaker(s):
Yes
Audio codecs:
G.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;AAC;PCM

Network

Supported network protocols:
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Ethernet LAN:
Yes
Number of users:
32 user(s)
Networking standards:
IEEE 802.1x, IEEE 802.3at
Bluetooth:
No
Wi-Fi:
No
Quality of Service (QoS) support:
Yes
Ethernet interface type:
Fast Ethernet

Storage

Compatible memory cards:
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Card reader integrated:
Yes
Maximum memory card size:
512 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports:
1

Power

DC output voltage:
12
DC output current:
0.6 A
Power source type:
DC, PoE
Power consumption (max):
14 W

Weight & dimensions

Weight:
1.125 kg
Height:
179.3 mm
Width:
120 mm
Depth:
182 mm

Packaging data

Package depth:
256 mm
Package height:
224 mm
Package width:
169 mm

Features

Number of cameras:
1

Performance

Type:
IP security camera
Connectivity technology:
Wired
Placement supported:
Indoor & outdoor
PTZ control:
Yes
Wide Dynamic Range (WDR):
Yes
Day/night mode:
Yes
Alarm input/output:
Yes
Preset points:
Yes

Night vision

Night vision:
Yes
Night vision distance:
30

Security

Mirror:
Yes
Video motion detection:
Yes
Active tampering alarm:
Yes
IP address filtering:
Yes
HTTPS encryption:
Yes
Password protection:
Yes
Digital watermark:
Yes

Management features

Reset button:
Yes
Web browser:
Yes
Behavior analysis:
Intrusion detection, Line crossing detection, Object removal detection, Region entrance detection, Unattended baggage detection

Design

Form factor:
Dome
Product colour:
Black, White
Mounting type:
Ceiling/Wall
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.
IP66

Operational conditions

Operating temperature (T-T):
-30 - 65
Hide Show all

Instructions

mmo_88248873_1611335178_7886_4378.pdf
11444569.pdf

Description

Instructions

mmo_88248873_1611335178_7886_4378.pdf
11444569.pdf
Machine translation. Load original
