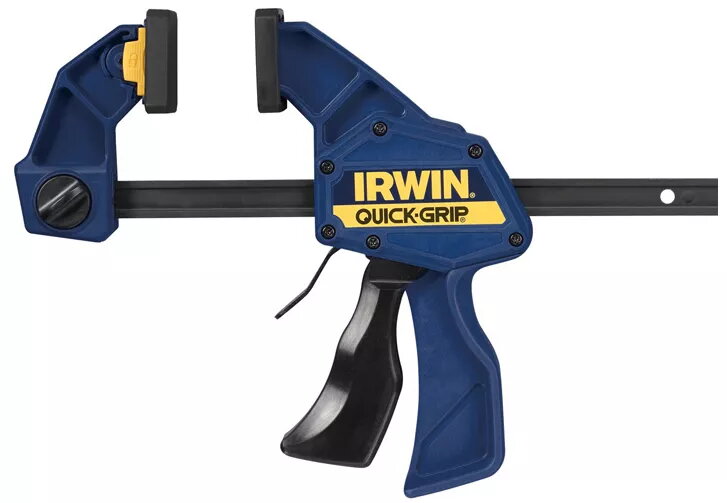

Bar clamp Irwin T506QCEL7 — 15 cm clamp opening, black/blue/yellow

The Irwin T506QCEL7 — 15 cm bar clamp provides a compact, reliable solution for holding and securing workpieces during gluing, assembly and light woodworking tasks. Designed with a 15 cm clamp opening and a heat-treated steel I-beam bar, this single-piece clamp combines durability with controlled clamping force. Colour accents in black, blue and yellow identify the brand and help with visibility in workshop environments.

Advantages

The clamp delivers up to 135 kg of clamping pressure, enabling secure temporary holds for a variety of materials. A lockable swivel jaw allows even distribution of pressure and the ability to clamp uneven surfaces. The heat-treated steel I-beam bar increases resistance to bending and wear, while an improved screw Quick-Change mechanism keeps the jaw firmer on the bar and speeds up positioning. Ergonomic design improvements make handling easier during repeated use.

Suitable for

• Gluing small to medium sized workpieces in furniture and cabinetry repair
• Holding components during light carpentry and joinery tasks
• DIY projects where temporary, stable clamping is required
• Workshop assembly tasks and fixture positioning

Key specifications

• Maximum clamp opening: 15 cm
• Maximum clamping pressure: up to 135 kg
• Bar type: heat-treated steel I-beam for improved stiffness and wear resistance
• Jaw: lockable swivel jaw for even pressure distribution and adaptability to uneven surfaces
• Mechanism: Quick-Change screw mechanism for faster jaw positioning and firmer hold
• Finish and colour: black, blue and yellow accents for visibility

How to use

Position the clamp so the swivel jaw contacts the workpiece surface and slide the jaw along the bar until it is close to the opposite face. Use the Quick-Change screw mechanism to engage the jaw, then tighten until the workpieces are held firmly without deformation. If clamping uneven surfaces, pivot the lockable swivel jaw to obtain uniform pressure across the contact area. Release by loosening the screw and using the quick-release feature to slide the jaw away from the workpiece.

Usage recommendations

For consistent results, clean the bar and contact surfaces before use to prevent slipping or marking. Apply clamping pressure gradually and avoid over-tightening delicate materials. When working with glued joints, support the assembly to maintain alignment while the adhesive cures. Store the clamp in a dry environment to preserve the heat-treated bar and mechanical components.
