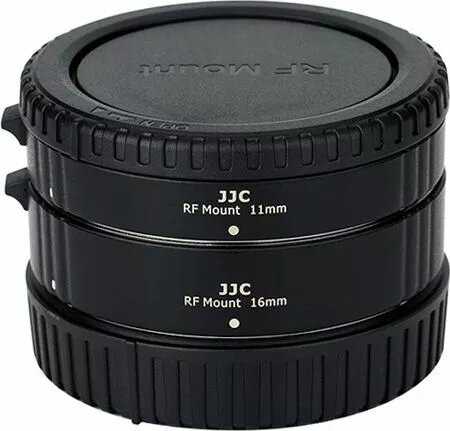

Macro Extension Tube Set JJC AF for Canon EOS R / RF / RPi (mount adapter) SB5509

The Macro Extension Tube Set JJC AF for Canon EOS R / RF / RPi (mount adapter) SB5509 is a passive extension ring kit designed for Canon RF-mount mirrorless cameras. Installed between the camera body and a compatible RF lens, these tubes increase the lens-to-sensor distance to achieve higher reproduction ratios for close-up and macro imaging without introducing additional optics. The set preserves electronic contacts so that aperture control, exposure metering and autofocus functions remain available with supported RF lenses, allowing both handheld and tripod-based macro photography workflows.

Advantages

The extension tubes provide a straightforward, lens-preserving solution for macro work by using no additional glass, which avoids optical degradation and maintains image sharpness native to the attached lens. Retained electronic communication enables automatic aperture control and EXIF transmission to the camera, and the construction offers a stable mechanical connection for reliable mounting. The tubes are compact and lightweight, making them easy to carry and quick to install or remove between shooting sessions.

Suitable for

• Close-up and macro photography of small subjects such as flowers, insects and product details
• Increasing magnification with existing RF lenses without purchasing dedicated macro optics
• Creative shallow-depth-of-field portraits of small objects
• Studio or field work where compact, non-optical magnification is preferred

Key specifications

• Compatibility: Canon RF-mount cameras and RF lenses supporting electronic communication
• Function: Passive extension tubes that increase working distance to raise reproduction ratio
• Electronic contacts: Preserved for aperture control, autofocus signals and EXIF data transfer
• Construction: Durable, lightweight metal and/or high-quality polymer mounting surfaces for secure fit
• Mount type: Camera-to-lens RF mount adapter format designed for mirrorless bodies

How to use

Attach the extension tube to the camera body by aligning mount marks and turning until it locks, then mount the lens onto the front of the tube in the same manner. Use the camera’s normal shooting modes; the preserved electronic contacts allow you to change aperture from the camera or lens and to use autofocus where supported by the lens. Frame and focus on the subject at close distances—manual focus may be preferable for precise control in macro situations. Remove the tubes by reversing the mounting steps when switching back to standard shooting distances.

Usage recommendations

For best results, use sturdy support such as a tripod or macro rail to minimize camera movement and consider additional lighting to maintain adequate exposure at close focusing distances. Test autofocus performance with your specific RF lens — some lenses may perform better in manual focus when used with extension tubes. Combine different tube lengths only as needed to reach the desired magnification, and handle mounts carefully to avoid dust entering the camera sensor area.
