Crimping die Knipex 97 49 07

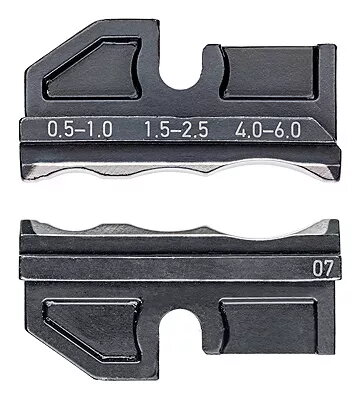

The Knipex 97 49 07 crimping die is an accessory engineered to provide precise, repeatable crimps for cable assemblies. Manufactured from hardened tool steel with a protective black finish, the die is intended for use with compatible Knipex crimping tools to achieve consistent contact joints and reliable electrical and mechanical connections. The compact design facilitates quick die changes and steady alignment with terminal and connector profiles.

Advantages

This crimping die delivers dimensional accuracy and wear resistance for prolonged service life. The black finish reduces glare during work and provides surface protection against corrosion. Designed to interface with Knipex crimping tool systems, it offers fast installation and maintains uniform crimp height and pressure, resulting in stable electrical contact and improved pull-out performance of terminals.

Suitable for

• Crimping insulated and non-insulated terminals on single and multi-core wires
• Assembly and repair of cable harnesses in automotive, industrial, and household equipment
• Periodic maintenance and production tasks requiring consistent crimp quality

Key specifications

• Material: hardened tool steel with protective black surface finish
• Compatibility: designed for use with matching Knipex crimping tool models
• Function: precision die geometry for consistent crimp form and pressure distribution
• Construction: compact, replaceable die segment for quick changeover
• Durability: wear-resistant surface treatment for extended lifecycle under regular use

How to use

Install the die into the appropriate Knipex crimping tool following the tool manufacturer's instructions, ensuring correct orientation and secure fastening. Position the terminal and conductor within the die cavity, then operate the crimping tool to form the crimp. Verify the crimp visually and, if required, perform mechanical pull and continuity tests to confirm connection integrity. Replace the die if visible wear or deformity affects crimp quality.

Usage recommendations

Use the die only with specified Knipex crimping tools and within the conductor and terminal sizes for which the die geometry is intended. Regularly inspect and clean the die to remove debris and oxidation, and avoid exposure to corrosive chemicals. Calibrate or test crimped samples periodically in production settings to ensure consistent electrical and mechanical performance.
