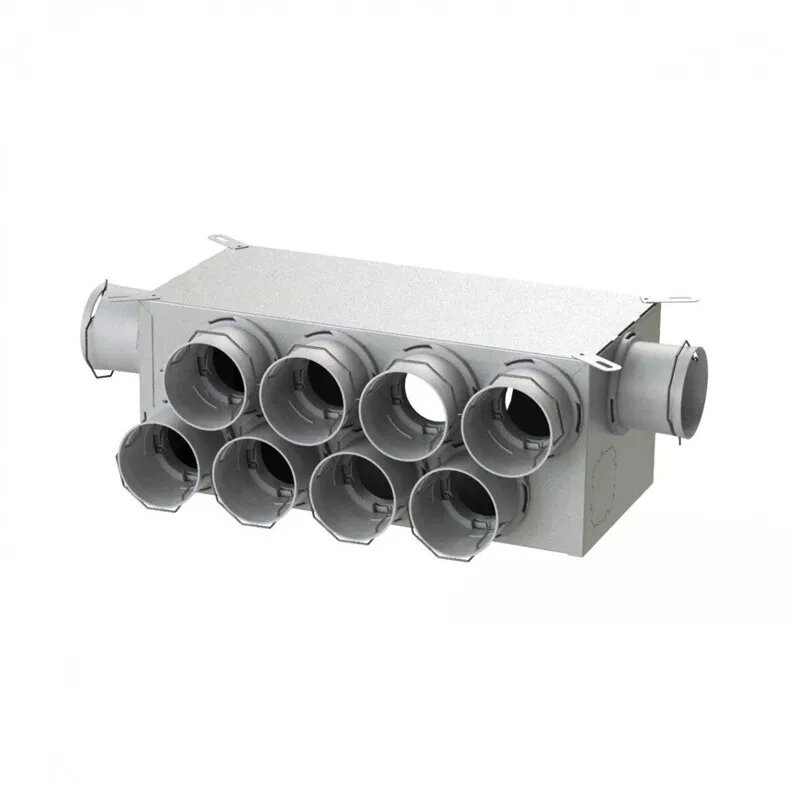

KOMPONENTUM DIFFUSOR BOX DN160-12X75 for Ventilation Systems

The KOMPONENTUM DIFFUSOR BOX DN160-12X75 is a professional-grade plenum box engineered for high-performance ventilation systems. This unit serves as a central distribution hub, facilitating the seamless transition of air between the main ventilation duct and individual flexible air ducts. Designed for both supply and exhaust applications, it ensures balanced airflow throughout residential or commercial spaces, contributing to a healthy and comfortable indoor climate.

Advantages

The primary benefit of this plenum box lies in its robust construction and precision engineering, which minimize pressure drops and reduce noise levels within the ventilation network. The unit features a 160mm main connection port and 12 dedicated ports for 75mm flexible ducts, allowing for extensive system configuration and flexibility during installation. Its durable material composition ensures long-term reliability and resistance to mechanical stress, making it an ideal choice for concealed installations in ceilings or walls.

Suitable for

• Residential ventilation systems requiring balanced air distribution
• Commercial office spaces needing efficient air supply or extraction
• New construction projects and renovation of existing HVAC networks
• Systems utilizing 75mm flexible ducting for room-to-room airflow

When it may not be suitable

This unit is specifically designed for 160mm main ducting and 75mm flexible ducting. It may not be suitable for systems requiring larger main trunk lines or different duct diameters without the use of additional adapters. Furthermore, it is intended for standard indoor ventilation applications and should not be used in environments with extreme temperatures or corrosive chemical vapors.

Key specifications

• Main connection diameter: 160mm
• Number of ports: 12
• Compatible duct diameter: 75mm
• Application: Air supply and extraction
• Material: Durable, high-quality construction

How to use

Installation involves connecting the 160mm main ventilation duct to the primary inlet of the plenum box using appropriate sealing methods to ensure an airtight connection. The 12 ports are designed to accommodate 75mm flexible ducts, which should be securely fastened to the box using standard locking mechanisms or clamps. Once connected, the box should be mounted securely to the structural elements of the building, ensuring that the weight of the ducts is properly supported.

What to consider before purchase

• Verify that your main ventilation duct diameter is 160mm
• Ensure you have sufficient space for the box and the 12 flexible duct connections
• Check that your system design requires 75mm flexible ducting
• Confirm the compatibility of your existing ventilation unit with this plenum box

Usage recommendations

Regularly inspect the connections during the initial commissioning phase to ensure there are no air leaks. It is recommended to use professional-grade sealing tape or gaskets to maintain system efficiency and prevent energy loss.
