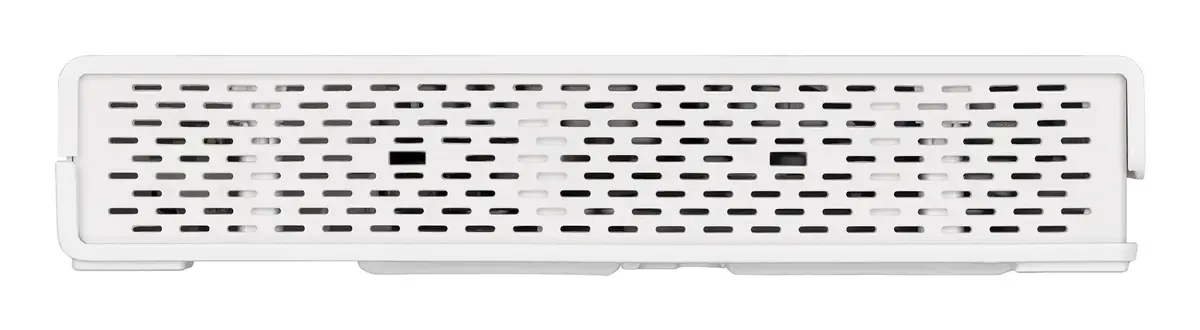

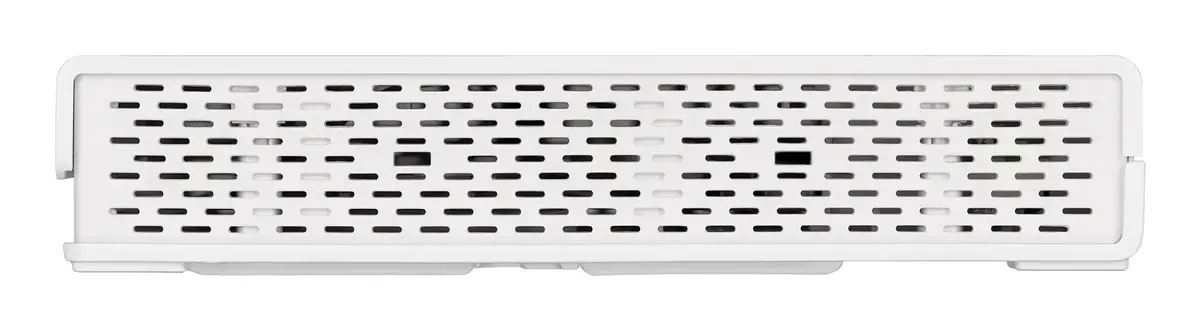

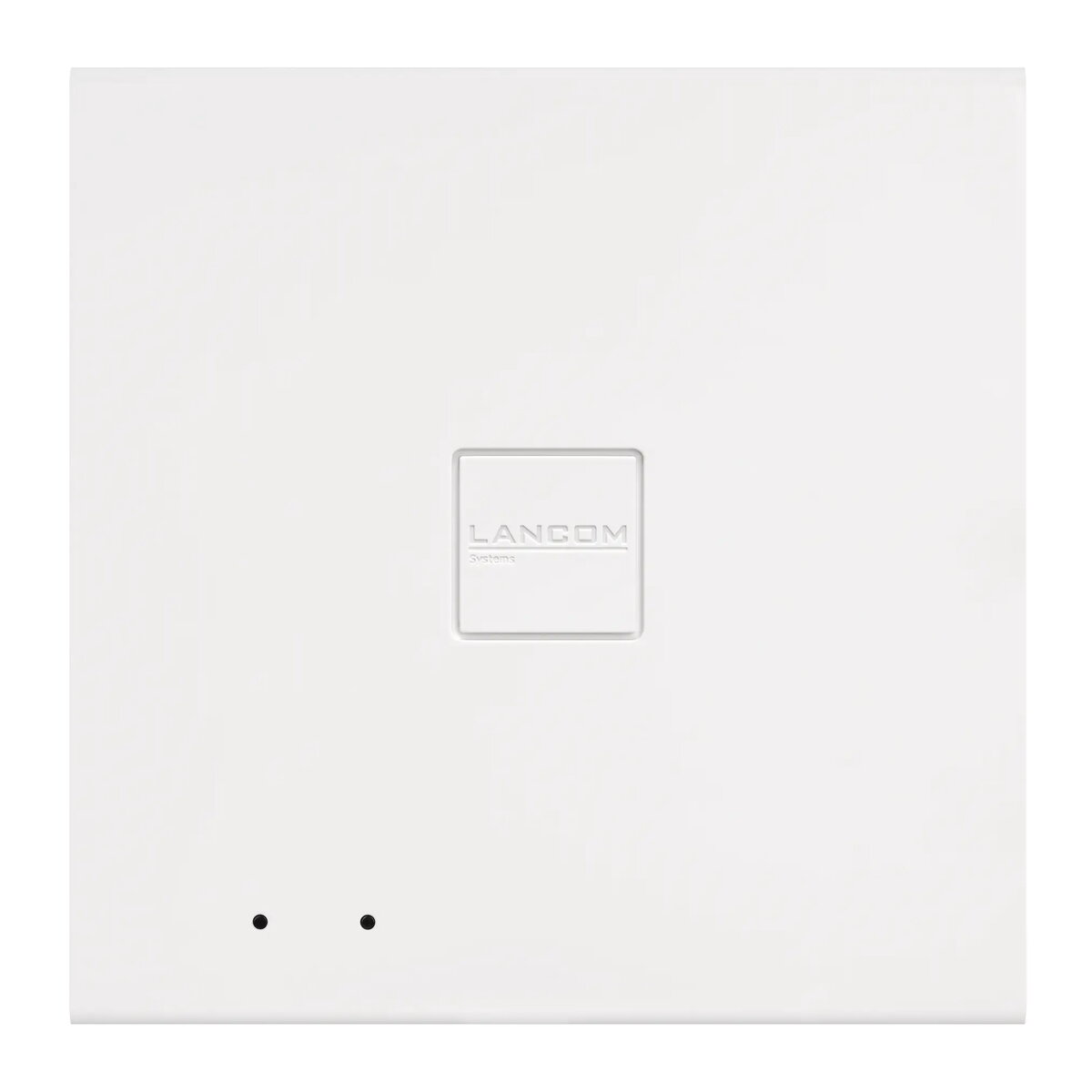

LANCOM LX-6200 (Edu Bundle, Bulk 10)

The LANCOM LX-6200 (Edu Bundle, Bulk 10) is a ceiling-/wall-mountable Wi‑Fi 6 access point designed for small to medium user densities in environments such as hotels, smaller offices, medical practices and branch offices. It provides dual‑band concurrent operation in the 2.4 GHz and 5 GHz ranges, integrated Bluetooth Low Energy (BLE 5.1), a USB 2.0 interface for IoT extensions, and Power over Ethernet (PoE) support. The device supports modern authentication methods and enterprise security standards and can be managed via LANCOM Management Cloud, a WLAN controller, or operated in stand-alone mode.

Advantages

The LX-6200 delivers Wi‑Fi 6 performance with combined high throughput across both frequency bands, enabling aggregated data rates suitable for multimedia streaming, cloud applications and multiple simultaneous clients. MU‑MIMO in both downlink and uplink increases spectral efficiency and reduces latency in multi-client scenarios. Built-in BLE and a USB 2.0 port enable integration of wireless IoT devices such as sensors, digital signage or electronic shelf labels. Flexible management options allow centralized cloud orchestration, controller‑based operation or local stand-alone use, while support for WPA3 and modern EAP authentication provides elevated security for enterprise and education networks.

Suitable for

• Hotels and guest accommodations with medium user density
• Small and medium offices, branch offices and meeting rooms
• Medical practices and clinics in non-life-supporting environments
• IoT deployments for digital signage, asset tracking and electronic shelf labels
• Education facilities and campus spaces requiring centralized management

Key specifications

• Wireless standard: IEEE 802.11ax (Wi‑Fi 6) with backward compatibility
• Dual concurrent bands: 2.4 GHz and 5 GHz
• Data rates: up to 575 Mbps (2.4 GHz) and up to 1200 Mbps (5 GHz); aggregated throughput up to 1775 Mbps
• MU‑MIMO: 2x2 for downlink and uplink
• Security: WPA3 support, EAP‑TLS and EAP‑TTLS authentication
• Bluetooth: BLE 5.1 module for IoT integration
• Interfaces: USB 2.0 port for IoT devices; Ethernet LAN with 100/1000 Mbps data rates; Power over Ethernet (PoE) support
• Antennas: 2 internal integrated antennas
• Power consumption (max): 17.3 W
• Compatibility: managed via LANCOM Management Cloud, LANCOM WLAN controller, or stand-alone operation

How to use

Mount the LX-6200 according to the installation instructions appropriate for ceiling or wall placement and connect to a PoE-capable switch or injector to provide power and network access. Use the USB 2.0 port and BLE radio to connect compatible IoT peripherals as required. For centralized management, register the device with the LANCOM Management Cloud or add it to a LANCOM WLAN controller; alternatively configure essential network parameters locally for stand-alone operation. Configure wireless SSIDs, security settings (WPA3 or chosen EAP method) and VLAN or QoS policies via the chosen management interface to meet site requirements.

Usage recommendations

Place the access point in a central position relative to the served area, avoid large metallic obstacles and sources of RF interference, and use PoE provisioning for simplified cabling. For mixed client environments and IoT deployments, enable WPA3 where supported and use controller or cloud management to apply consistent firmware updates, security policies and radio planning to maintain predictable performance and secure operation.
