Wireless Access Point Lancom Systems LANCOM LX-6402 (WW) — dual-band 2.4/5 GHz, PoE, 2.5 Gbps Ethernet, WPA3

The LANCOM LX-6402 (WW) is a dual-band wireless access point designed for office and enterprise WLAN deployments that require modern security and elevated wired throughput. Supporting IEEE 802.11ax (Wi‑Fi 6), the device operates simultaneously in the 2.4 GHz and 5 GHz bands and provides multi-gigabit wired connectivity with a 2.5 Gbps Ethernet port and an additional Gigabit Ethernet port. Power-over-Ethernet (PoE) and a local power supply option are supported for flexible installation scenarios.

Advantages

The LANCOM LX-6402 delivers high aggregate wireless throughputs by combining concurrent 2.4 GHz and 5 GHz operation with Wi‑Fi 6 technology, achieving up to 1,150 Mbps on 2.4 GHz and up to 2,400 Mbps on 5 GHz. 4x4 MU‑MIMO supports simultaneous spatial streams for multiple clients in both downlink and uplink directions, while OFDMA improves channel efficiency for many small-packet devices. The access point supports advanced security protocols including WPA3 and a range of EAP methods, and it provides professional IoT connectivity through Bluetooth Low Energy (5.1) and a USB 3.0 port for peripherals such as wireless ePaper solutions. Management can be performed locally via an intuitive web interface or centrally via the LANCOM Management Cloud.

Suitable for

• Enterprise and medium-sized office Wi‑Fi networks requiring WPA3-level security
• Environments with high client density and mixed device types (smartphones, tablets, IoT sensors)
• Locations that need multi-gigabit wired backhaul or PoE installation
• IoT and digital signage applications using BLE or USB peripherals
• Managed deployments orchestrated via cloud-based network management

Key specifications

• Wireless standard: IEEE 802.11ax (Wi‑Fi 6) with backward compatibility to earlier 802.11 standards
• Dual concurrent operation: 2.4 GHz and 5 GHz
• Maximum wireless data rates: up to 1,150 Mbps (2.4 GHz) and up to 2,400 Mbps (5 GHz)
• Aggregate maximum throughput: up to 3,550 Mbps
• Spatial streams / MIMO: 4x4 MU‑MIMO (up- and downlink)
• Channel widths: 20 / 40 / 80 MHz (4 streams), 160 MHz (2 streams)
• OFDMA and Target Wake Time (TWT) support
• Security: WPA2, WPA3, AES-CCMP/GCM, TKIP, WEP, multiple EAP methods
• Ports: 1 × 2.5-Gigabit Ethernet with PoE, 1 × Gigabit Ethernet
• Power options: Power over Ethernet (IEEE 802.3at) or included power-supply unit
• Bluetooth Low Energy (BLE 5.1) and USB 3.0 for IoT and peripheral integration

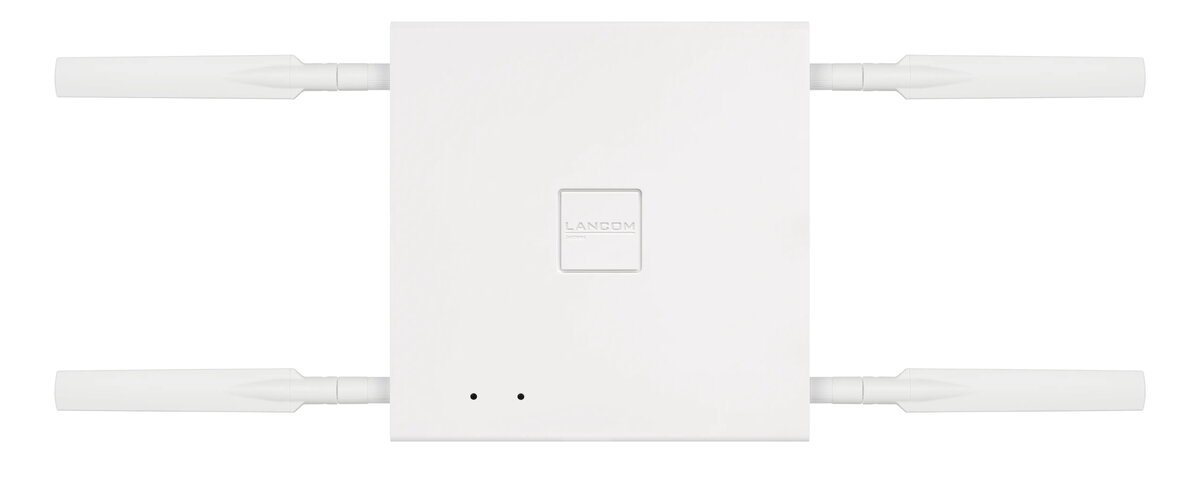

• Antennas: 4 external omni-directional antennas (flexibly adjustable)
• Central management: Compatible with LANCOM Management Cloud; also operable via local web interface

How to use

Install the LANCOM LX-6402 on a ceiling or wall mount according to site planning to ensure optimal radio coverage. Connect the unit to your network using the 2.5-Gigabit Ethernet PoE port or the included power-supply unit for local power. Configure wireless SSIDs, security settings (WPA3 recommended where supported), VLANs and other network parameters via the WEBconfig interface for stand-alone operation or adopt the access point into the LANCOM Management Cloud for centralized provisioning and monitoring. Attach optional sector antennas if extended directional coverage is required, and connect BLE or USB peripherals for IoT or signage applications.

Usage recommendations

For best performance in high-density environments, enable OFDMA and MU‑MIMO features, use 5 GHz where possible with band steering to shift capable clients away from 2.4 GHz, and consider 160 MHz channels only when nearby networks will not cause interference. Use WPA3 for client authentication when supported; otherwise maintain WPA2 as a fallback. For critical installations, adopt the device into the LANCOM Management Cloud to enable centralized updates, monitoring and automated configuration rollouts.
