Access Point LANCOM OX-6402 2.4 GHz 5 GHz

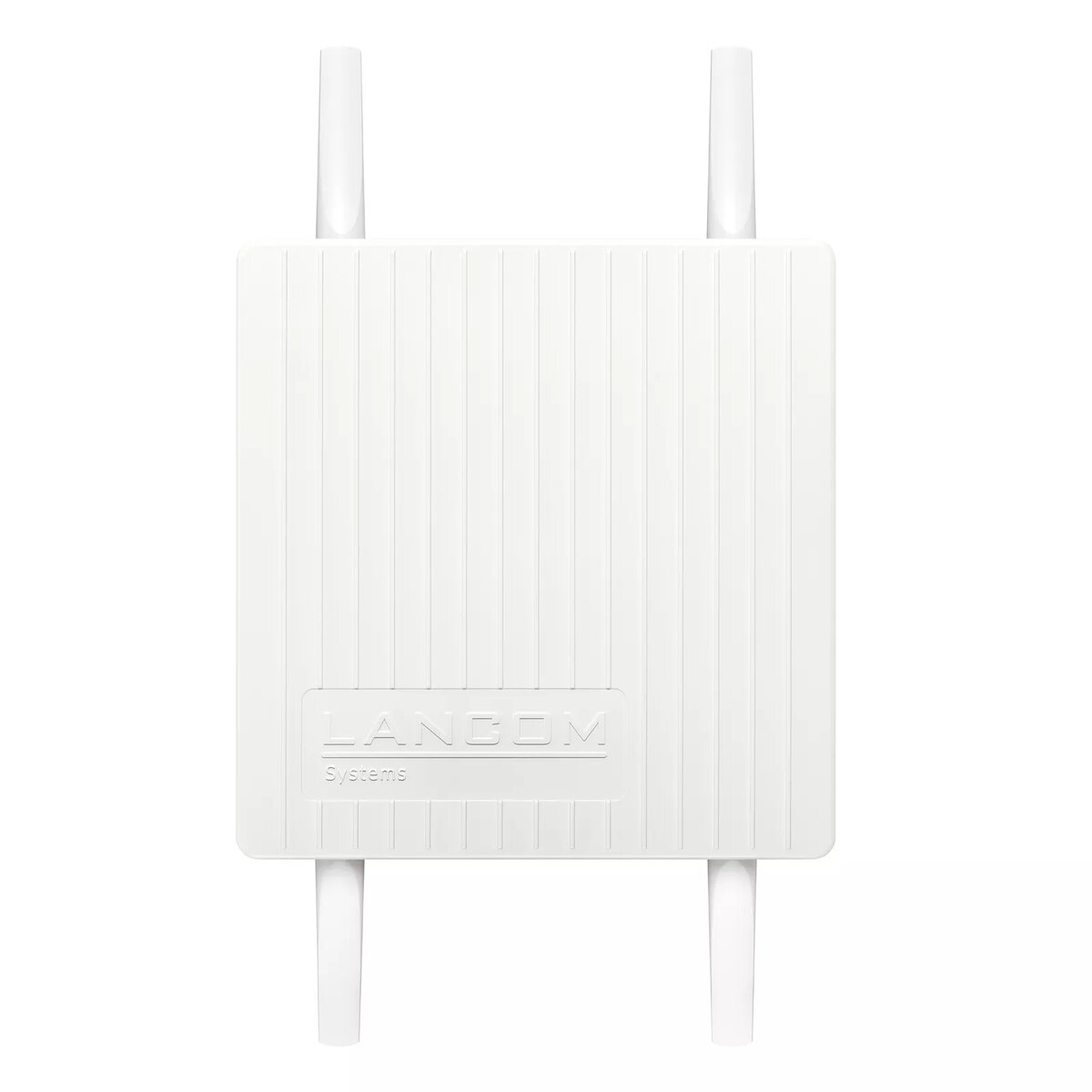

The LANCOM OX-6402 is an outdoor Wi‑Fi 6 access point in an IP67 metal housing designed for high‑density, high‑performance environments such as amusement parks, stadiums and schoolyards. It provides dual concurrent wireless operation in the 2.4 GHz and 5 GHz bands with an aggregated data rate of up to 3,550 Mbps and supports external antennas for either wide‑area coverage or focused sector coverage. Power over Ethernet (PoE) Passthrough enables the access point to be powered and to supply a downstream PoE device (for example an IP camera) using a single cable, reducing cabling effort in outdoor installations.

Advantages

Flexible antenna options allow the OX-6402 to be adapted to different coverage scenarios: four supplied omnidirectional antennas for general coverage, or externally mounted antennas (N‑type connector) to concentrate coverage on high‑density zones or to build medium‑range point‑to‑point links. The device supports Wi‑Fi 6 (IEEE 802.11ax) with combined throughput of up to 2,400 Mbps at 5 GHz and 1,150 Mbps at 2.4 GHz. PoE operation according to IEEE 802.3at and IEEE 802.3bt enables supply from modern PoE switches and PoE Passthrough to power additional devices. The OX-6402 is built to withstand harsh conditions (IP67) and includes features for easy rollout and long‑term maintenance: zero‑touch provisioning via LANCOM Management Cloud or WLAN controller, professional IoT support via Bluetooth Low Energy (5.1) and USB 3.0, cloud‑managed hotspot separation for guest access, and manufacturer software lifecycle support with regular LCOS LX major releases and extended warranty options.

Key specifications

• Wi‑Fi standard: IEEE 802.11ax (Wi‑Fi 6), dual concurrent 2.4 GHz + 5 GHz
• Aggregated data rate: up to 3,550 Mbps (5 GHz up to 2,400 Mbps; 2.4 GHz up to 1,150 Mbps)
• Housing: metal, IP67 (dust‑ and waterproof)
• PoE support: IEEE 802.3at and IEEE 802.3bt; PoE Passthrough to downstream device
• Antennas: 4 × omnidirectional included; external antennas supported (N jack)
• IoT interfaces: Bluetooth Low Energy 5.1, USB 3.0
• Operating temperature: -30 °C to +65 °C
• Management: LANCOM Management Cloud, WLAN Controller, LCOS LX software updates

How to use

Mount the OX-6402 outdoors using suitable brackets and connect it to your PoE switch or injector. If the switch provides IEEE 802.3bt PoE, the access point can forward power to a connected PoE device via PoE Passthrough, allowing a single cable to power both the AP and a downstream device such as an IP camera. Configure the access point centrally via LANCOM Management Cloud or WLAN Controller for zero‑touch deployment and automatic assignment of the correct configuration. Choose and install antennas according to the required coverage: use the supplied omnidirectional antennas for broad coverage or attach external directional/sector antennas to focus signal where needed.

Recommendations

For outdoor high‑density areas, install the OX-6402 at elevated, unobstructed positions and use IEEE 802.3bt PoE switches to enable PoE Passthrough for downstream devices. Select external antennas with appropriate gain and pattern for targeted coverage, and manage the devices centrally via LANCOM Management Cloud to simplify updates, monitoring and guest‑network separation.
