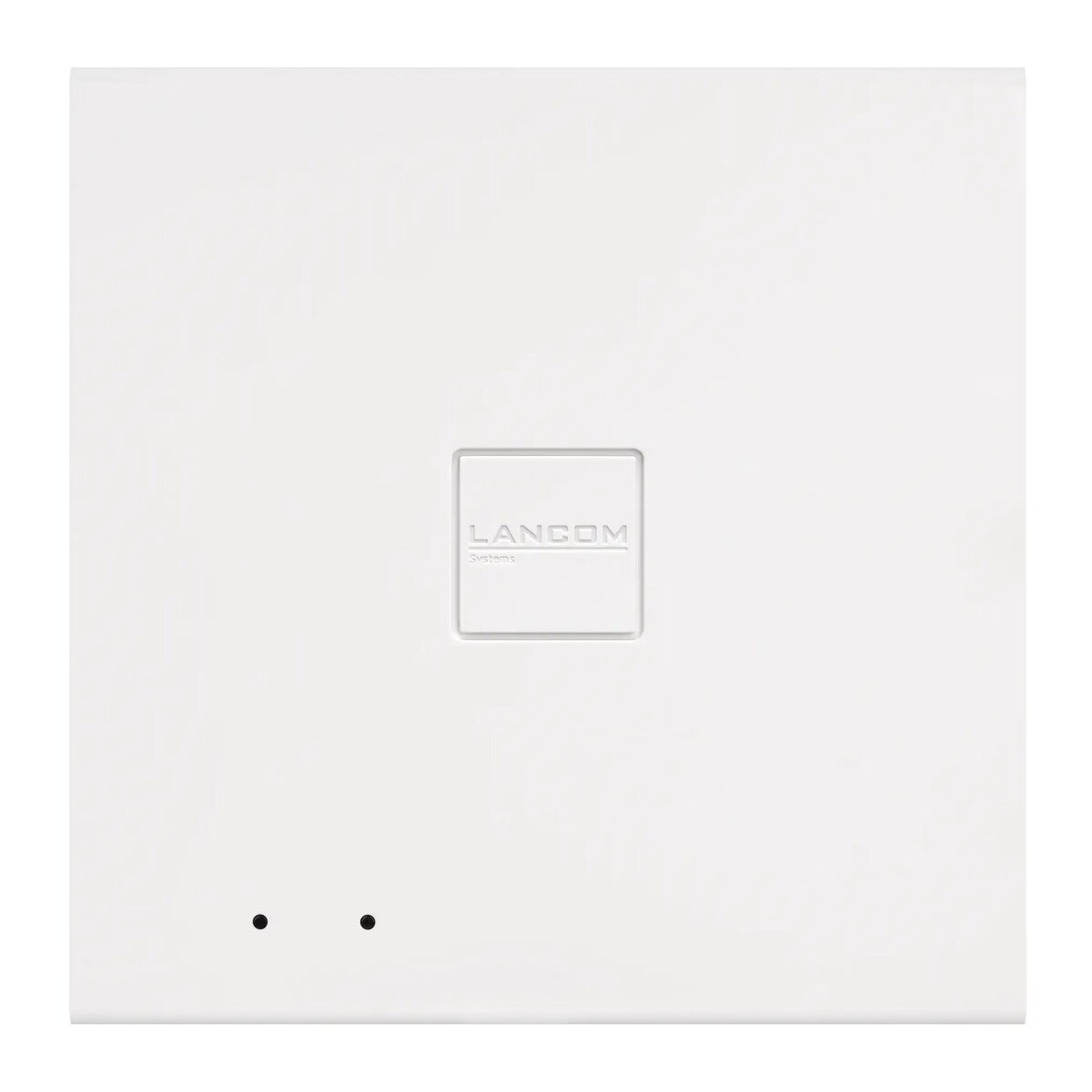

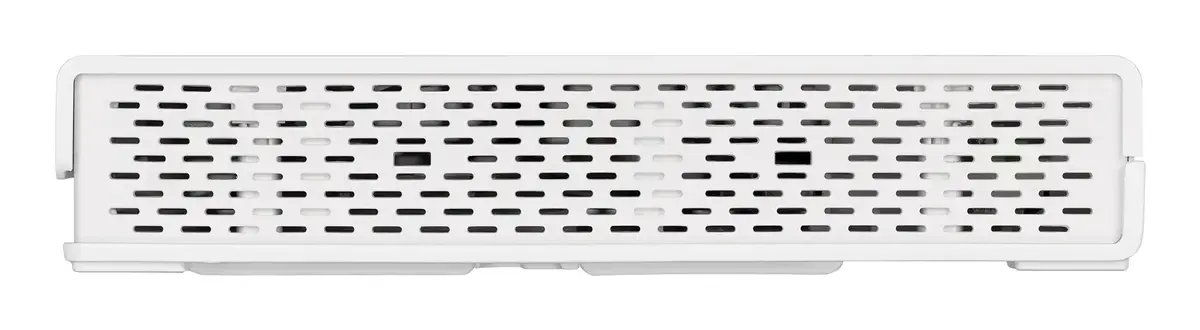

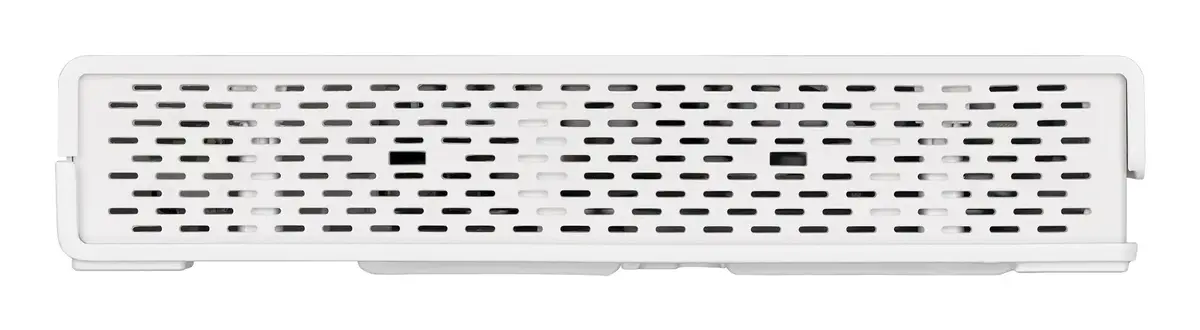

Wireless Access Point Lancom Systems LANCOM LX-6200 (EU) — dual-band 2.4/5 GHz, PoE, Gigabit Ethernet

LANCOM LX-6200 (EU) is a compact dual-band wireless access point designed for small and medium user densities. It supports Wi‑Fi 6 (IEEE 802.11ax) operation in both the 2.4 GHz and 5 GHz bands with combined throughput up to 1,775 Mbps and wired connectivity via a Gigabit Ethernet interface. The device can be powered via Power over Ethernet (PoE) and includes Bluetooth Low Energy and a USB 2.0 port to integrate IoT devices and peripherals. Security is provided through enterprise-capable authentication methods such as EAP‑TLS and EAP‑TTLS and modern encryption standards including WPA3.

Advantages

The LANCOM LX-6200 delivers high-throughput Wi‑Fi 6 performance with concurrent dual-band operation, enabling up to 1,200 Mbps in the 5 GHz band and up to 575 Mbps in the 2.4 GHz band. 2x2 MU‑MIMO supports simultaneous communication with multiple clients in both downlink and uplink directions, improving latency and spectral efficiency. Integrated BLE 5.1 and a USB 2.0 interface allow straightforward integration of IoT endpoints, digital signage and other wireless peripherals. Flexible deployment options include management via LANCOM Management Cloud, central WLAN controller or stand-alone operation, while WPA3 support and enterprise authentication methods ensure robust WLAN security.

Suitable for

• Small to medium offices and branch offices
• Hotels, guest accommodations and hospitality areas
• Medical practices and clinics (non-life-supporting equipment environment)
• Education sites and campus buildings with moderate user density
• IoT deployments such as asset tracking, electronic shelf labels and digital signage

Key specifications

• Wi‑Fi standard: IEEE 802.11ax (Wi‑Fi 6) with backward compatibility to 802.11a/b/g/n/ac
• Dual concurrent bands: 2.4 GHz and 5 GHz, aggregated datarate up to 1,775 Mbps
• Peak throughput: 2.4 GHz up to 575 Mbps; 5 GHz up to 1,200 Mbps
• Radio chains / antennas: 2x internal integrated antennas (2x2)
• MU‑MIMO: 2x2 Multi‑User MIMO for downlink and uplink
• Security: WPA3 support, EAP‑TLS and EAP‑TTLS authentication
• Wired interface: 100/1000 Mbit/s Ethernet (Gigabit Ethernet)
• Power: Power over Ethernet (PoE) support; maximum power consumption 17.3 W
• Bluetooth: Bluetooth Low Energy 5.1 module
• USB: USB 2.0 port for IoT peripherals and optional accessories
• Management: LANCOM Management Cloud, LANCOM WLAN controller or stand-alone operation
• Standards compliance: Suitable for use with medical electrical equipment in non-life-supporting environment (EN 60601-1-2)

How to use

Install the LANCOM LX-6200 on a ceiling or wall using the manufacturer’s mounting accessories, and connect it to the network via the Gigabit Ethernet port. If available, supply power using PoE to avoid separate power cabling. Configure the access point through the LANCOM Management Cloud for automated, centralized orchestration, or add it to a LANCOM WLAN controller for managed mode; standalone configuration is also supported. Create SSIDs, assign security settings such as WPA3 and EAP authentication, and enable BLE or USB‑connected IoT services as required.

Usage recommendations

For optimal performance place the access point centrally relative to the expected client locations, avoid physical obstructions and large reflective surfaces, and ensure PoE power supply meets the device’s requirements. Use the LANCOM Management Cloud or a central controller for firmware updates and monitoring in multi-device deployments, and enable WPA3 and EAP‑TLS/EAP‑TTLS for enhanced network security.
