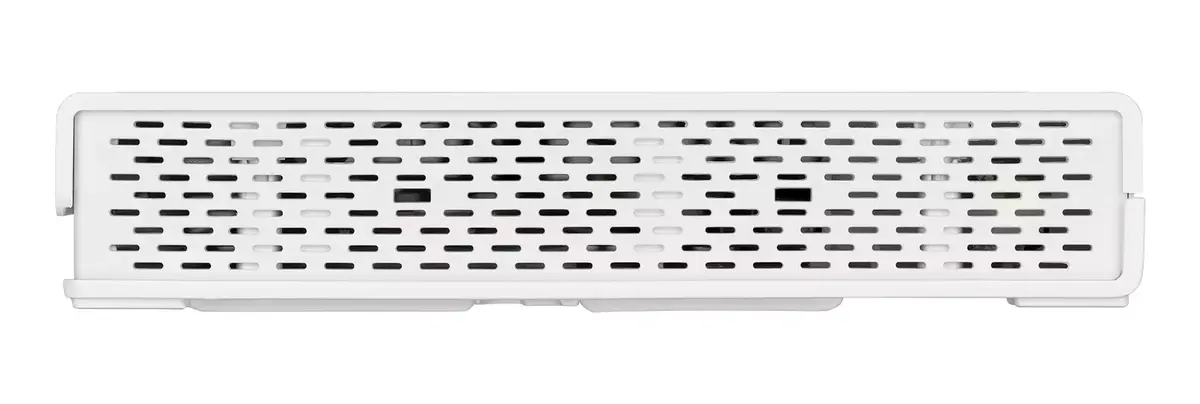

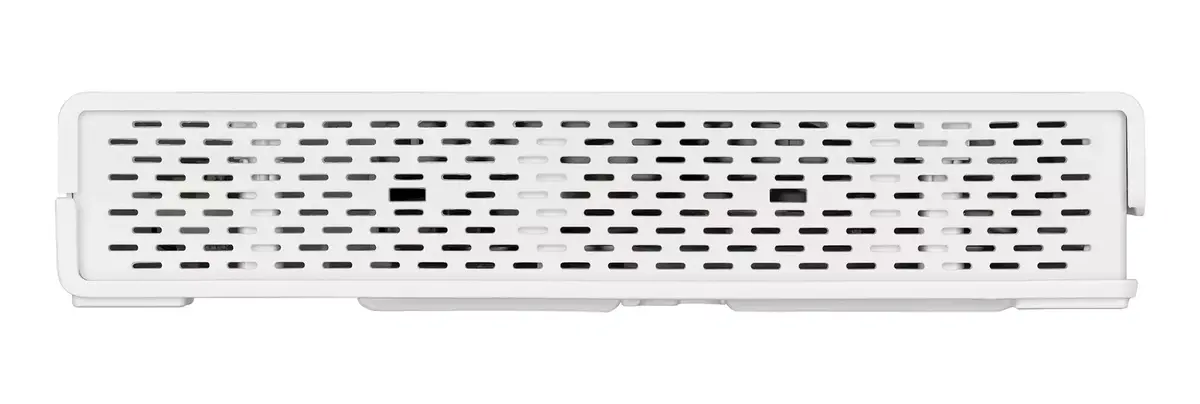

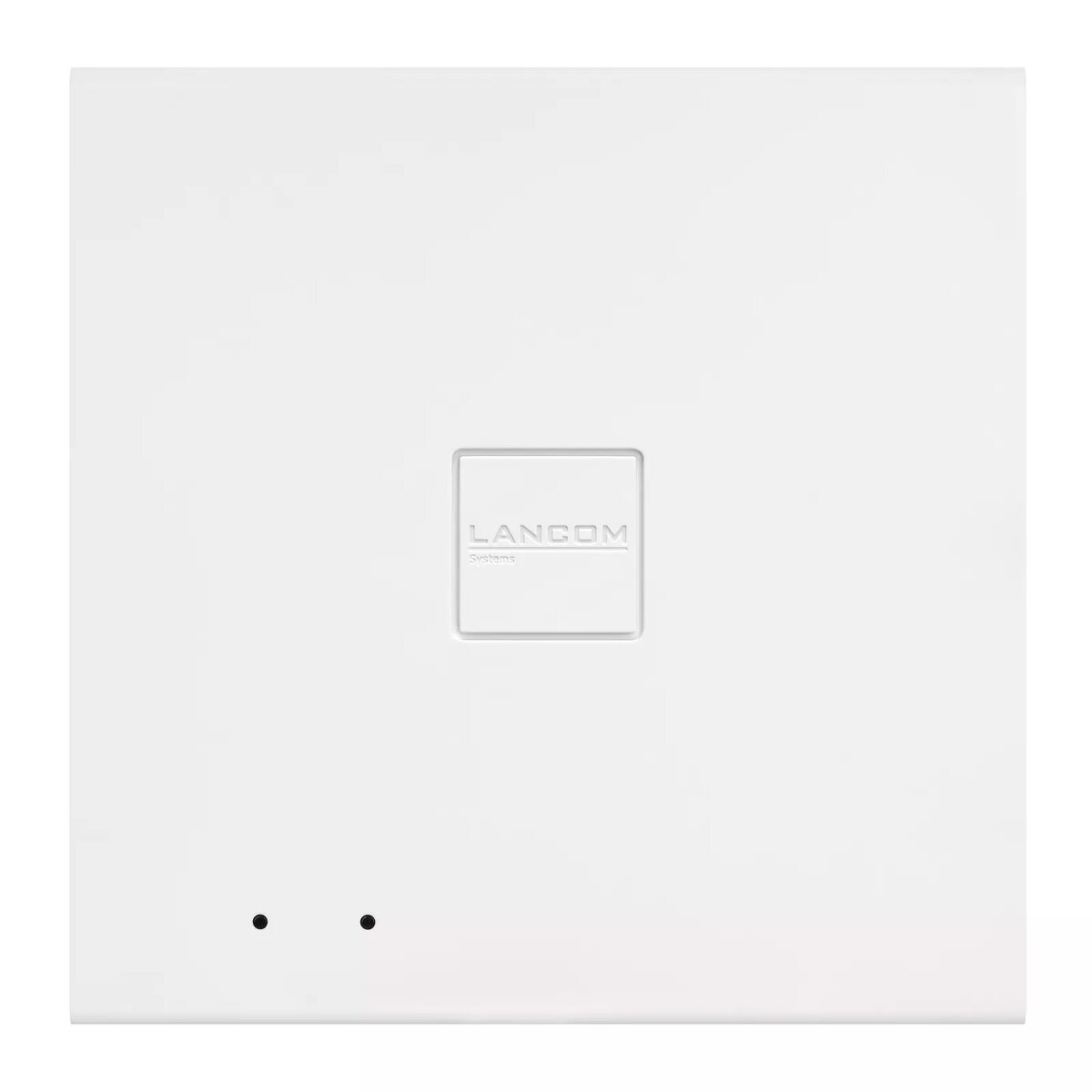

Access Point LANCOM LX-6200 (EU) 2.4 GHz 5 GHz

The LANCOM LX-6200 is a dual-band access point (2.4 GHz and 5 GHz) supporting the Wi‑Fi 6 (IEEE 802.11ax) standard. Designed for small to medium user densities, it delivers aggregated throughput for demanding wireless environments such as hotels, smaller offices, medical practices, and branch offices. The device includes a USB 2.0 interface and Bluetooth Low Energy (BLE 5.1) support for integrating IoT devices and sensors into existing WLAN infrastructures. It supports central management via LANCOM Management Cloud, LANCOM WLAN controller, or operation in stand-alone mode, and implements modern Wi‑Fi security including WPA3.

Advantages

The LANCOM LX-6200 provides dual concurrent Wi‑Fi with an aggregated datarate of up to 1,775 Mbps (up to 1,200 Mbps at 5 GHz and up to 575 Mbps at 2.4 GHz) using Wi‑Fi 6 technology. It features 2x2 Multi‑User MIMO for both downlink and uplink, improving spectral efficiency and reducing latency for multiple simultaneous clients. Professional IoT support is available via Bluetooth Low Energy (5.1) and the integrated USB 2.0 port, enabling use cases such as digital signage, electronic shelf labels, asset tracking, and other IoT applications. The access point supports PoE installation and common enterprise authentication methods (EAP‑TLS, EAP‑TTLS), and implements WPA3 security for enhanced protection.

Suitable for (use cases)

• Small to medium-sized hotels and guest accommodations
• Small offices and branch offices
• Medical practices and clinics
• Digital signage and electronic shelf label deployments
• IoT sensor networks and asset-tracking applications

Key specifications

• Wi‑Fi standard: IEEE 802.11ax (Wi‑Fi 6), backward compatible with 802.11a/b/g/n/ac
• Dual concurrent bands: 2.4 GHz and 5 GHz, aggregated datarate up to 1,775 Mbps (1,200 Mbps @5 GHz + 575 Mbps @2.4 GHz)
• MU‑MIMO: 2x2 for downlink and uplink
• BLE: Bluetooth Low Energy 5.1
• Interfaces: 1 x Ethernet (RJ‑45) 100/1000 Mbit/s, USB 2.0
• Power: Power over Ethernet (PoE) support, max. power consumption 17.3 W
• Antennas: 2 internal antennas
• Security: WPA3, EAP‑TLS, EAP‑TTLS
• Colour: White

How to use

Mount the LANCOM LX-6200 in the desired location and connect it to the network via the RJ‑45 Ethernet port; PoE can be used to supply power. Configure the device either through the LANCOM Management Cloud for centralized orchestration, via a LANCOM WLAN controller, or configure it in stand-alone mode using the device web interface. Pair BLE devices and connect IoT peripherals via the USB 2.0 port as required by the chosen solution. Apply WPA3 or the preferred enterprise authentication settings during setup to ensure secure wireless access.

Usage recommendations

Place the access point centrally relative to the covered area and avoid metal obstacles or large sources of interference. Use PoE for simplified installation, and select centralized management via LANCOM Management Cloud or WLAN controller for larger multi-device deployments. For IoT integrations, verify compatibility of BLE sensors and USB peripherals with the chosen LANCOM add-on (for example the LANCOM Wireless ePaper USB) before deployment.
