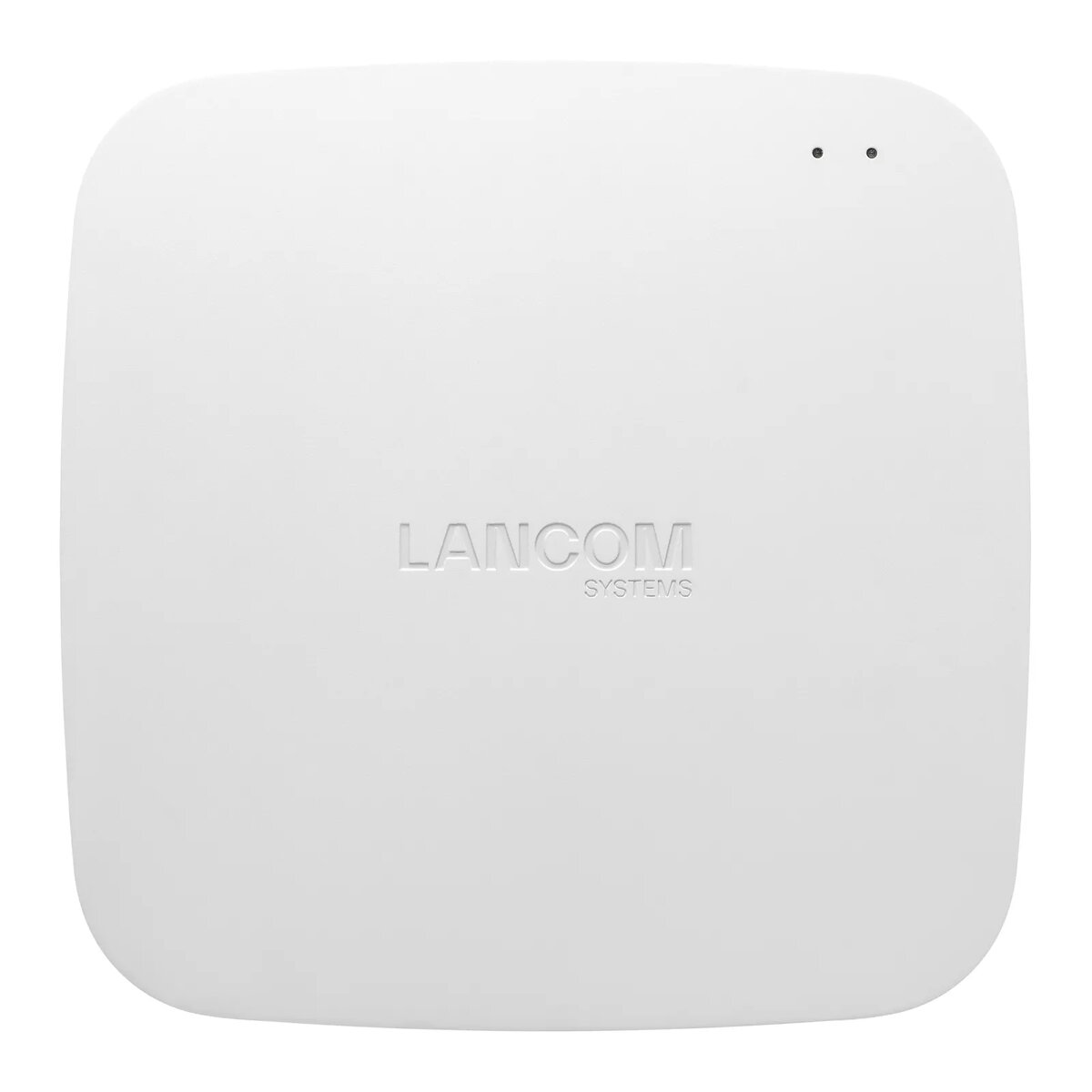

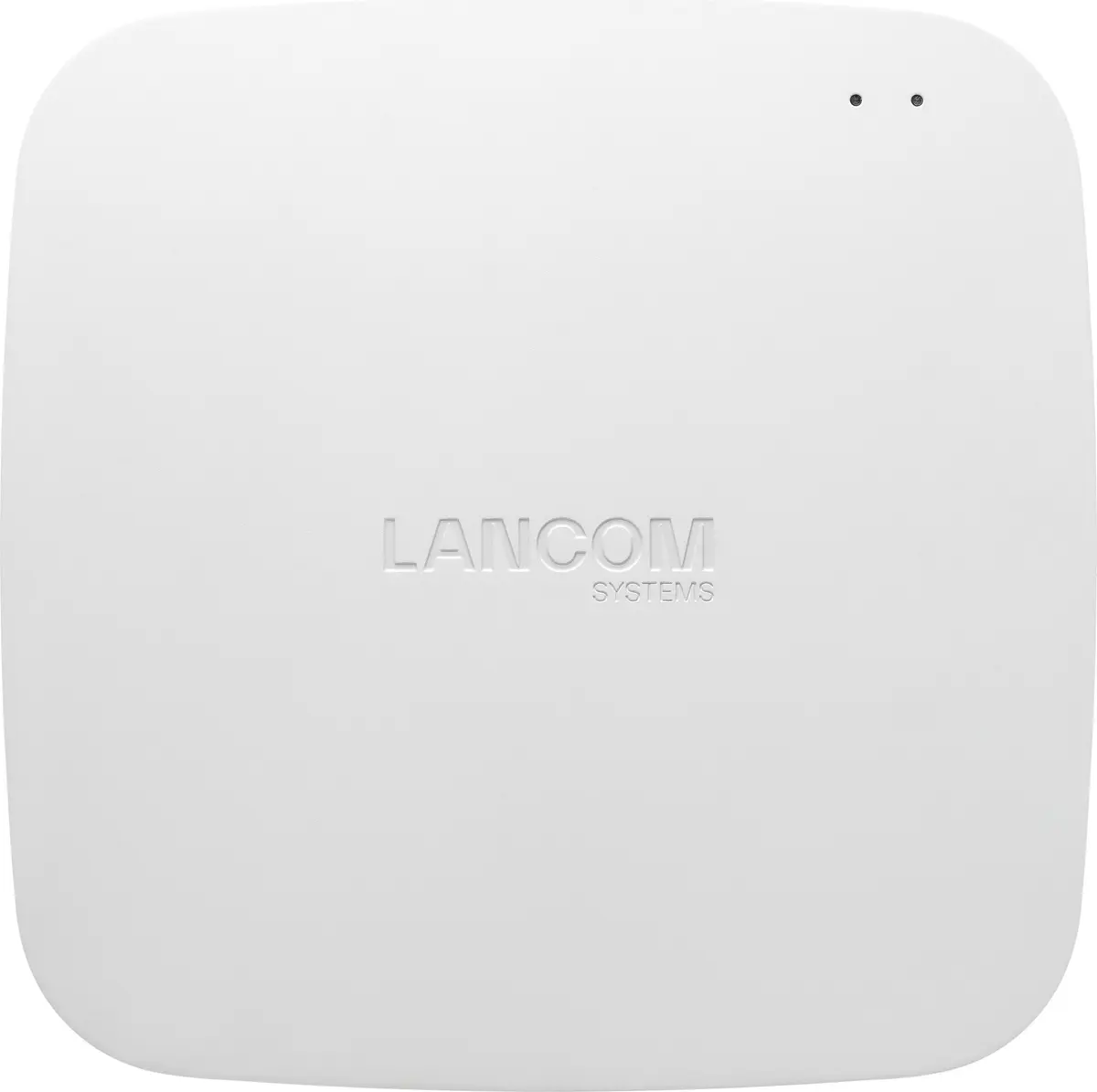

Access Point LANCOM LX-7300 Wi-Fi 2.4 GHz 5 GHz 6 GHz

The LANCOM LX-7300 is a high-performance access point supporting 2.4 GHz, 5 GHz and the new 6 GHz Wi‑Fi bands. Designed for medium-sized, demanding wireless networks, it delivers aggregated maximum data rates up to 9.3 Gbit/s, robust security (AES‑CCMP, EAP‑TLS) and flexible installation options including PoE and dual 10 Gbit/s-capable Ethernet ports. The housing is dustproof (IP50), fire‑certified (UL‑2043) and made from 100% recyclable materials with plastic‑free packaging.

Advantages

The LX-7300 provides significant throughput improvements thanks to Wi‑Fi 7 features: wider channel widths (up to 320 MHz) and higher modulation (4096 QAM) for faster data transfer and reduced latency. It supports interference-free operation in the exclusive 6 GHz band while still serving 2.4 GHz and 5 GHz clients. Built-in security and firmware engineered in Germany ensure secure boot, absence of backdoors and regular updates. Energy-saving functions such as LANCOM Active Power Control and a Sustainability Mode reduce power consumption, and cloud management enables zero-touch commissioning and continuous monitoring.

Suitable for

• Medium-sized enterprise and campus Wi‑Fi deployments
• Time‑critical applications and low-latency streaming in the 6 GHz band

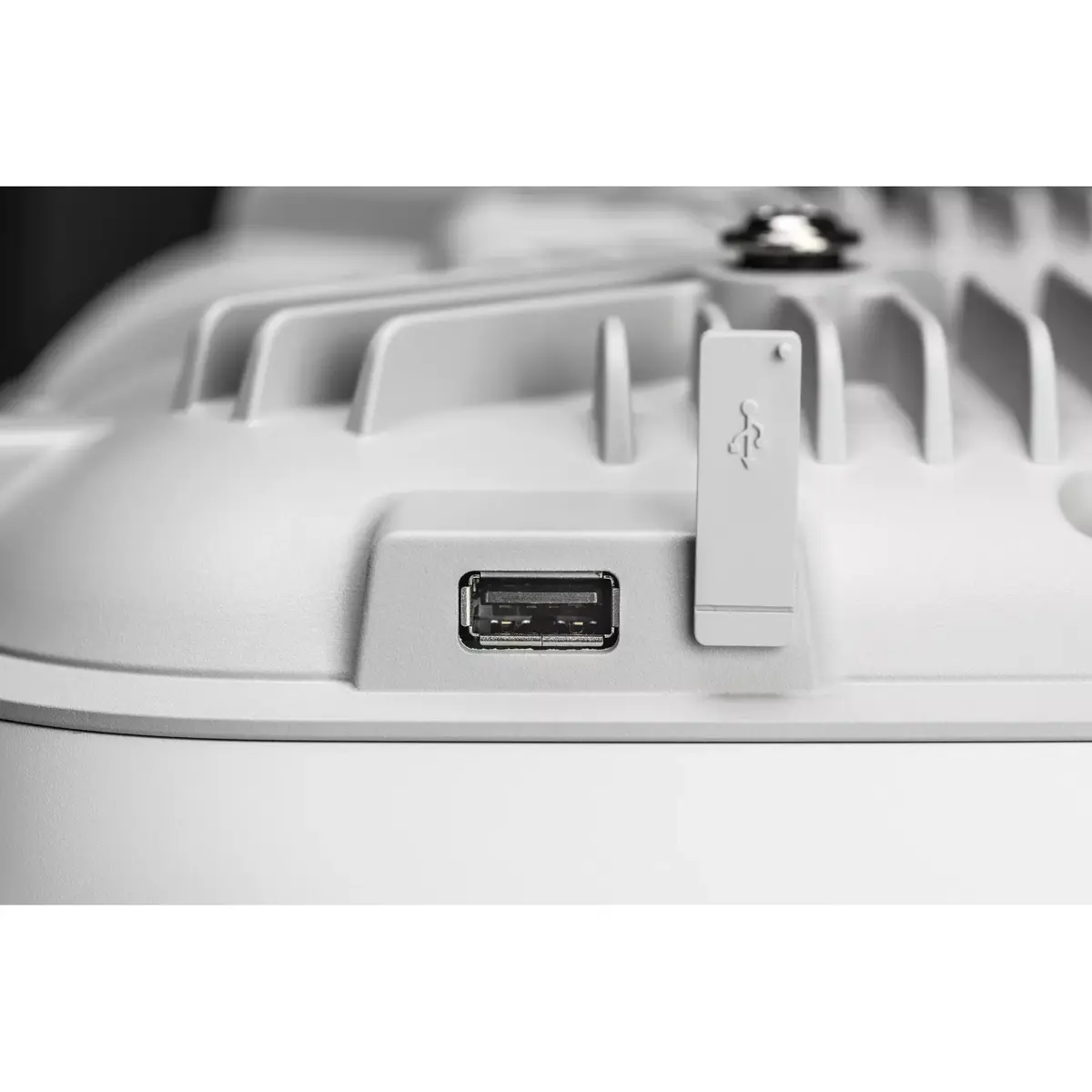

• IoT scenarios with BLE sensors and USB-based peripherals (asset tracking, digital signage)
• Environments requiring centralized cloud management or controller‑based administration

Key specifications

• Wireless bands: 2.4 GHz, 5 GHz, 6 GHz (Wi‑Fi 7 / IEEE 802.11be compatible)
• Maximum aggregated data rate: 9300 Mbit/s

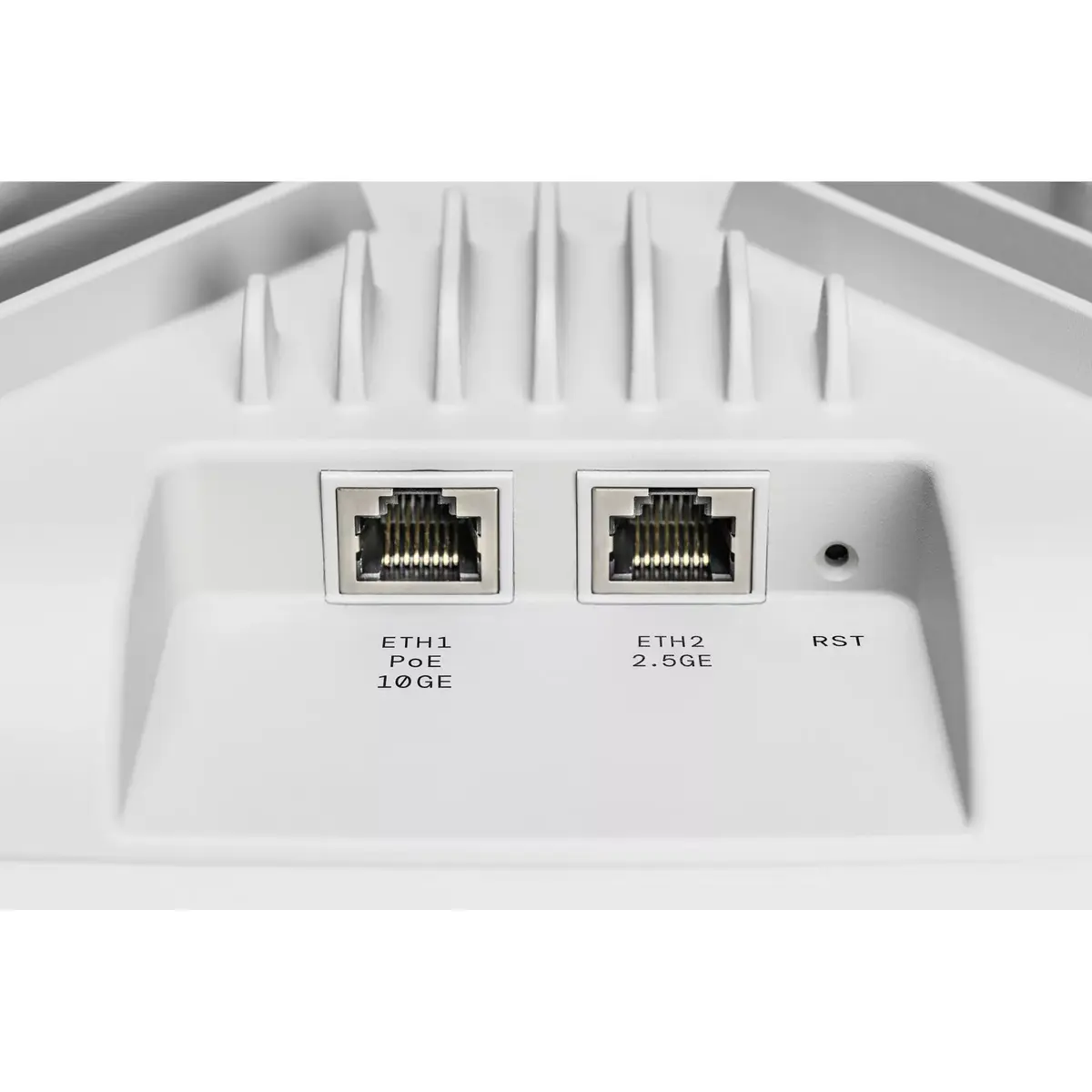

• Ethernet LAN (RJ‑45) ports: 2 (10 Gbit/s capable)
• Security: AES‑CCMP, EAP‑TLS; secure boot and regular firmware updates
• Power: PoE support; maximum power consumption 29 W
• Protection class: IP50; fire standard UL‑2043
• Colour: White; housing 100% recyclable; plastic‑free packaging

How to use

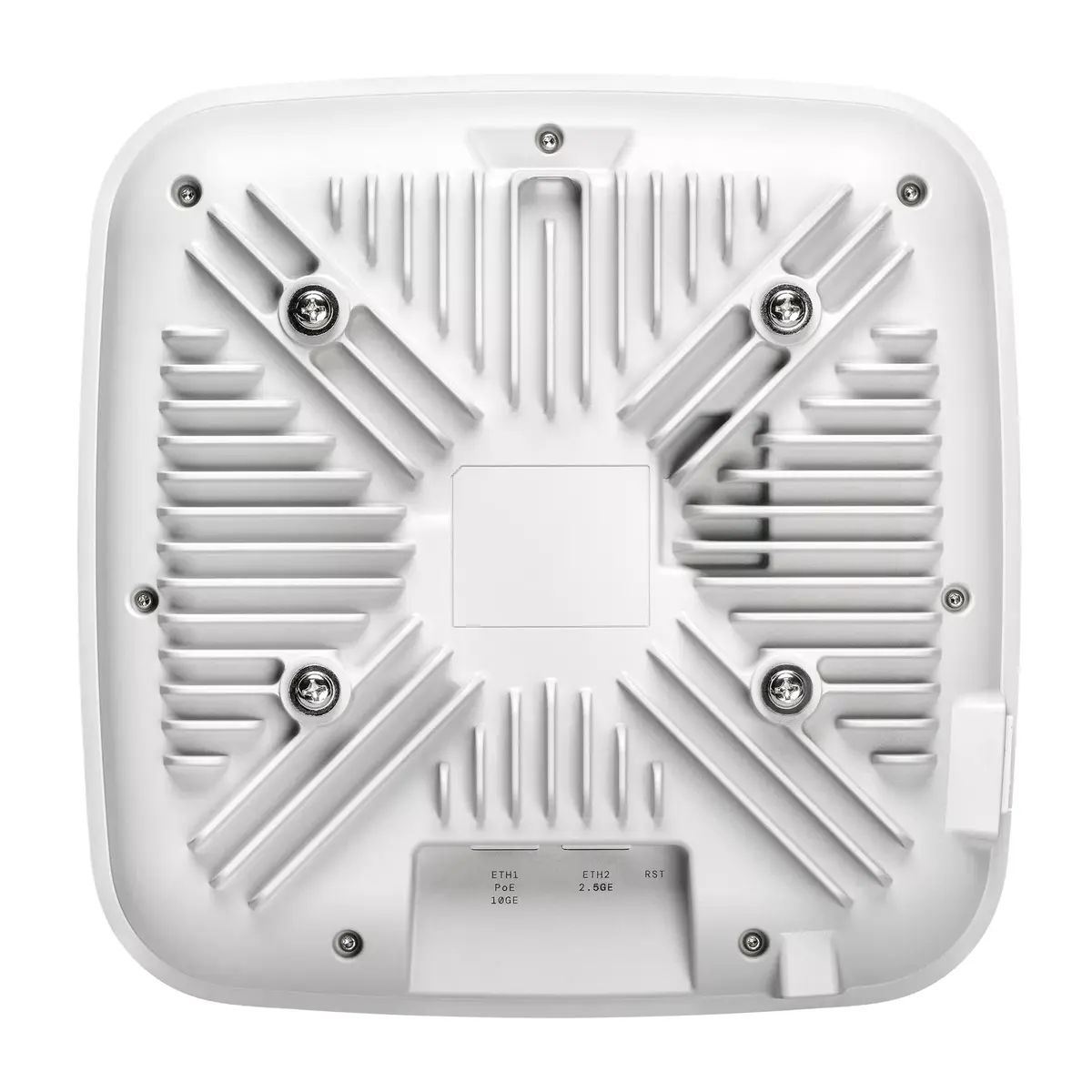

Install the LX-7300 using the supplied mounting options: wall or ceiling mounting with adapters that allow reuse of existing drill holes or quick attachment to T‑beams. Connect to power and network using PoE over the Ethernet ports. For management, choose cloud operation via LANCOM Management Cloud for zero‑touch commissioning and continuous monitoring, or configure stand‑alone via the WEBconfig interface or centrally via a WLAN controller. Use the integrated scan radio and LANCOM Active Radio Control to optimize channel allocation and maintain stable radio performance.

Usage recommendations

Deploy the LX-7300 in locations where mixed device populations and time‑sensitive traffic require high throughput and low latency. Enable 6 GHz for latency‑critical clients, activate LANCOM Active Power Control for energy savings during idle periods, and use the LANCOM Management Cloud to maintain up‑to‑date firmware and automated radio resource management.
