Wireless Access Point Lancom LX-7200 — tri-band 2.4/5/6 GHz, 9600 Mbps, PoE, 10/100/1000/2500 Mbps LAN

The LANCOM LX-7200 is a Wi‑Fi 7 access point designed for medium-density, future-proof wireless networks. It operates on the exclusive 6 GHz band for low-latency, high-throughput wireless communication while also supporting 2.4 GHz and 5 GHz. The device features a compact, discreet housing with IP50 protection and UL 2043 certification, easy and theft-resistant mounting options, and a USB interface for connecting external radio modules for electronic shelf labels. Built-in Bluetooth Low Energy (BLE) 5.4 expands IoT and ESL (Electronic Shelf Label) use cases.

Advantages

The LX-7200 provides significantly higher real-world throughput compared with Wi‑Fi 6 thanks to wider channel widths, increased modulation (4096 QAM) and additional 6 GHz spectrum, delivering an aggregated data rate up to 9.3 Gbps. Its tri-band operation (2.4 / 5 / 6 GHz) enables interference-free connections in the 6 GHz band while maintaining compatibility with legacy devices. The access point supports both integrated BLE and external USB radio modules for broad ESL manufacturer compatibility, and offers cloud-based energy optimization to reduce power consumption without sacrificing reliability. Multi-link operation (MLO), OFDMA, Multi-RU and puncturing improve transmission stability and spectral efficiency in dense radio environments.

Key specifications

• Wi‑Fi 7 access point with 2x2 MU‑MIMO tri-band operation (2.4 / 5 / 6 GHz) — aggregated throughput up to 9.3 Gbps
• OFDMA for more efficient channel utilization
• 1× 2.5 Gbit/s Ethernet PoE+ (IEEE 802.3at) and 1× 1 Gbit/s Ethernet port

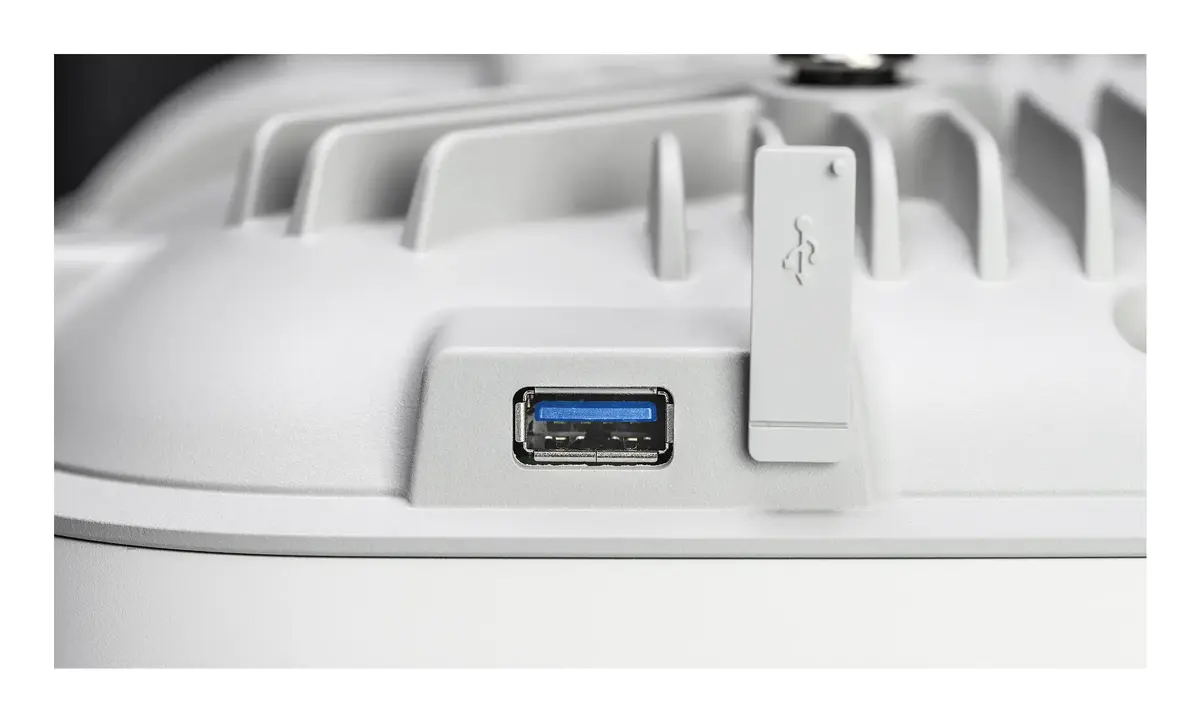

• IoT support: BLE 5.4 and USB interface for external radio modules (e.g., ESL solutions)
• Housing: protection class IP50, UL 2043 certified (low‑smoke, fire resistant)

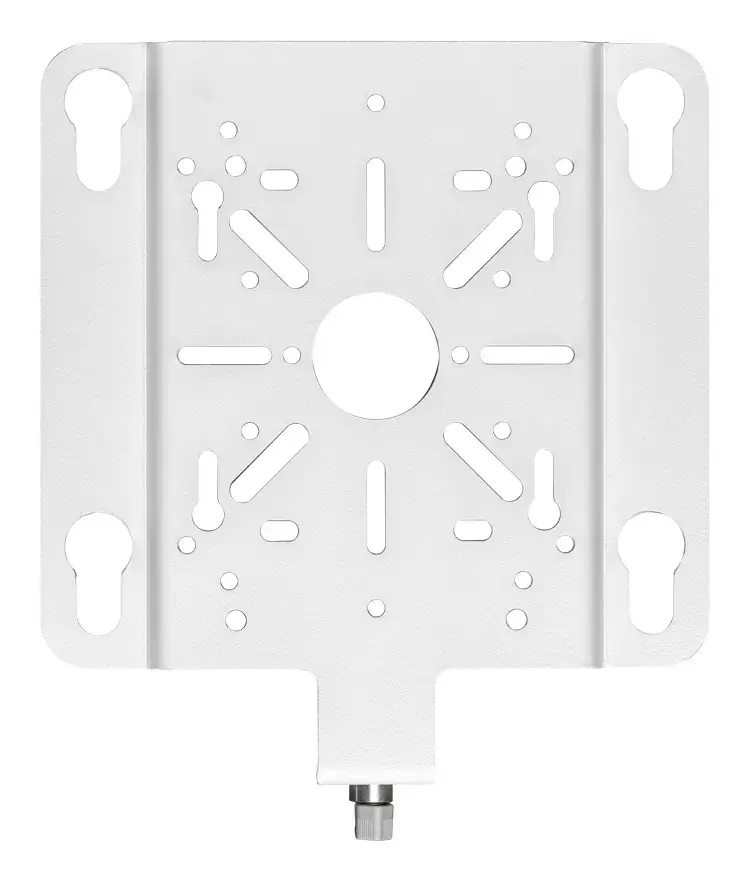

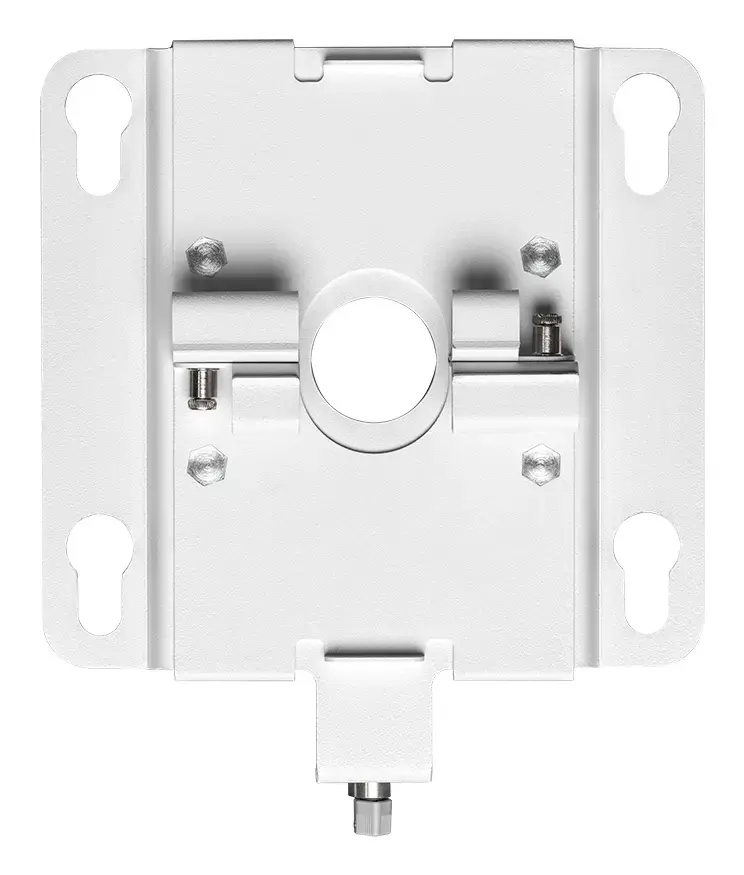

• Compact design with theft‑resistant mounting plate and optional ceiling T‑bar mounting system
• Power‑saving functions with centralized energy monitoring and LANCOM Active Power Control (Sustainability Mode)
• Automated deployment, operation and optimization via LANCOM Management Cloud (LMC) or stand‑alone WEBconfig or WLAN controller
• WLAN standards: IEEE 802.11a/b/g/n/ac/ax/be and related amendments
• Security: AES‑CCMP, AES‑GCMP, TKIP, WPA2/WPA3 support and 802.1x
• Throughput examples: 2.4 GHz: 688 Mbit/s; 5 GHz: 2882 Mbit/s; 6 GHz: 5765 Mbit/s; Maximum aggregated: 9600 Mbit/s
• Power over Ethernet (PoE) powered, internal antennas

How to use

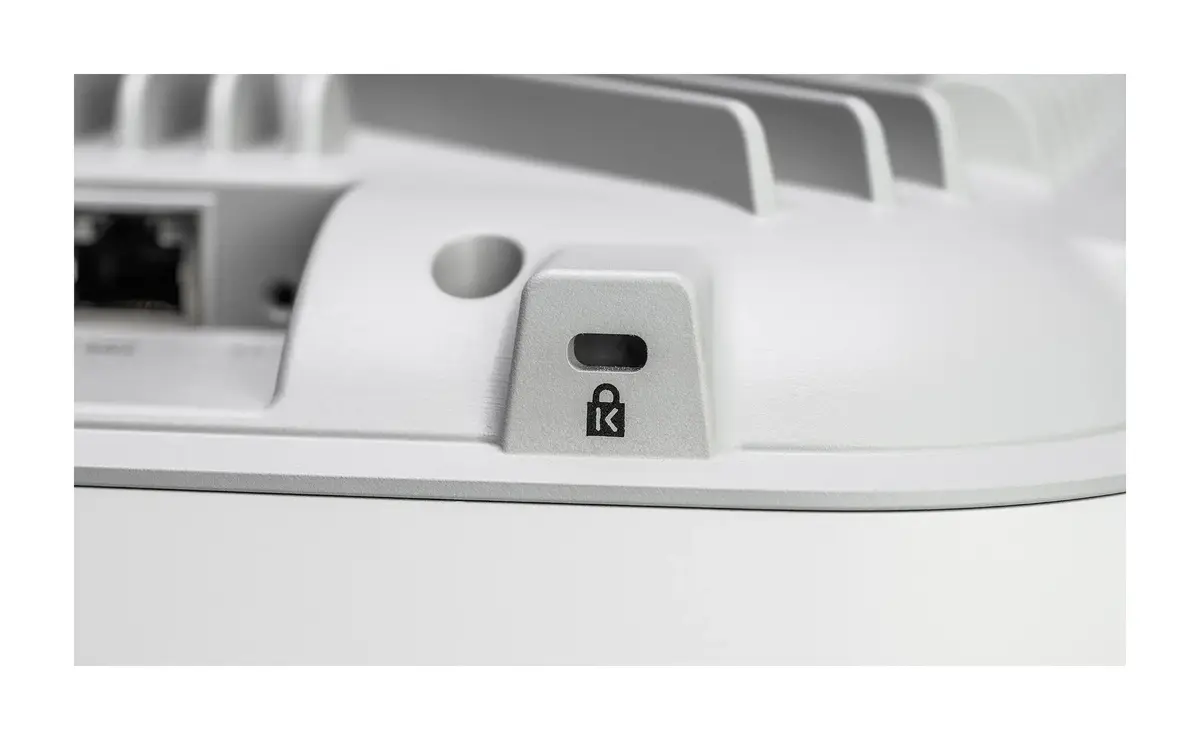

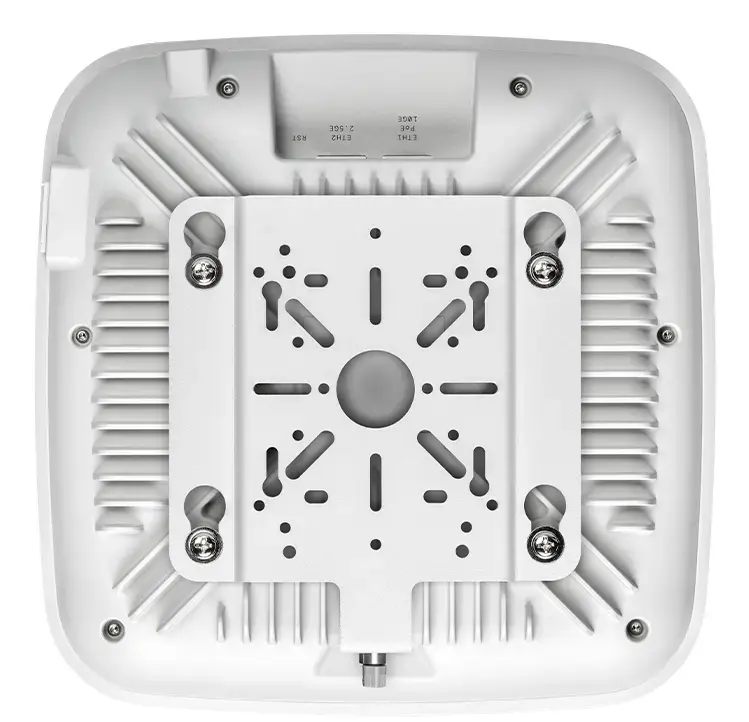

Mount the LX‑7200 using the included compact mounting plate or optional ceiling T‑bar kit and secure it with the supplied security lock to reduce theft risk. Connect the device to a PoE+ enabled switch via the 2.5 Gbit/s Ethernet port for data and power, and optionally connect a management network via the 1 Gbit/s port. For ESL or other IoT radio modules, plug compatible USB radio modules into the USB interface or use the integrated BLE 5.4 radio. Configure and manage the access point through the LANCOM Management Cloud for automated deployment and energy optimization, or use the local WEBconfig interface or a central WLAN controller depending on your network architecture.

Recommendations

Use the 6 GHz band for latency‑sensitive and high‑throughput retail applications (checkout systems, mobile payments, self‑checkout and customer apps). Enable LANCOM Active Power Control to reduce energy consumption during idle periods and consider using USB ESL radio modules when specific vendor compatibility is required. For dense urban retail environments, enable Active Radio Control 2.0 and OFDMA/MLO features to improve stability and overall performance.
