Wireless Access Point Lancom LX-7200E — tri-band 2.4/5/6 GHz, up to 9600 Mbps, PoE, 2.5G Ethernet

The LANCOM LX-7200E combines Wi‑Fi 7 performance with an integrated digital signage interface for retail and other small to medium-sized environments. It supports tri‑band operation (2.4 GHz, 5 GHz and the Wi‑Fi exclusive 6 GHz band) to deliver high aggregated throughput and stable wireless connections. The access point includes an integrated 2.4 GHz radio module for direct, energy-efficient communication with VUSION and PDi Digital displays; SoluM and Hanshow displays can be connected via external USB radio modules. A dedicated BLE module provides support for future BLE-based electronic shelf label (ESL) solutions and other IoT applications.

Advantages

The LANCOM LX-7200E provides higher real-world throughput and lower latency through Wi‑Fi 7 features such as wider channel bandwidths and higher modulation. Multi-Link Operation (MLO), Multi-RU and puncturing improve transmission stability in dense radio environments. Integrated digital signage radios and USB module support allow flexible integration with major ESL vendors while minimizing power consumption of connected displays. Cloud, WEBconfig or WLAN controller operation enables flexible deployment and centralized management. Built-in energy management and LANCOM Active Power Control reduce operational power draw and support sustainability goals.

Key specifications

• Wi‑Fi 7 access point, 2x2 MU‑MIMO tri‑band (2.4 / 5 / 6 GHz) delivering up to 9.6 Gbit/s aggregated data rate
• Integrated 2.4 GHz radio module for energy‑efficient communication with digital displays (VUSION, PDi Digital)
• Support for external USB radio modules (SoluM, Hanshow)
• OFDMA and Multi‑Link Operation (MLO) for efficient and stable channel utilization
• 1× 2.5 GE PoE+ (IEEE 802.3at) and 1× 1 GE port

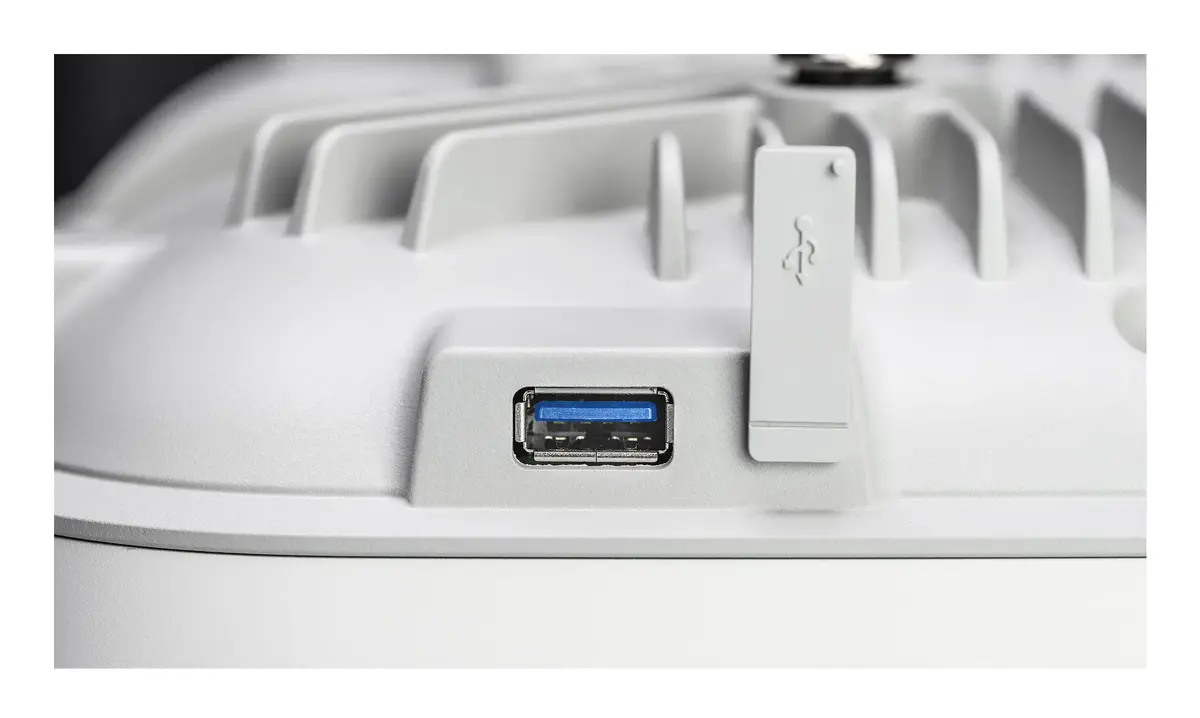

• IoT support: BLE 5.4 and USB 2.0
• Housing protection class IP50 and UL 2043 certified

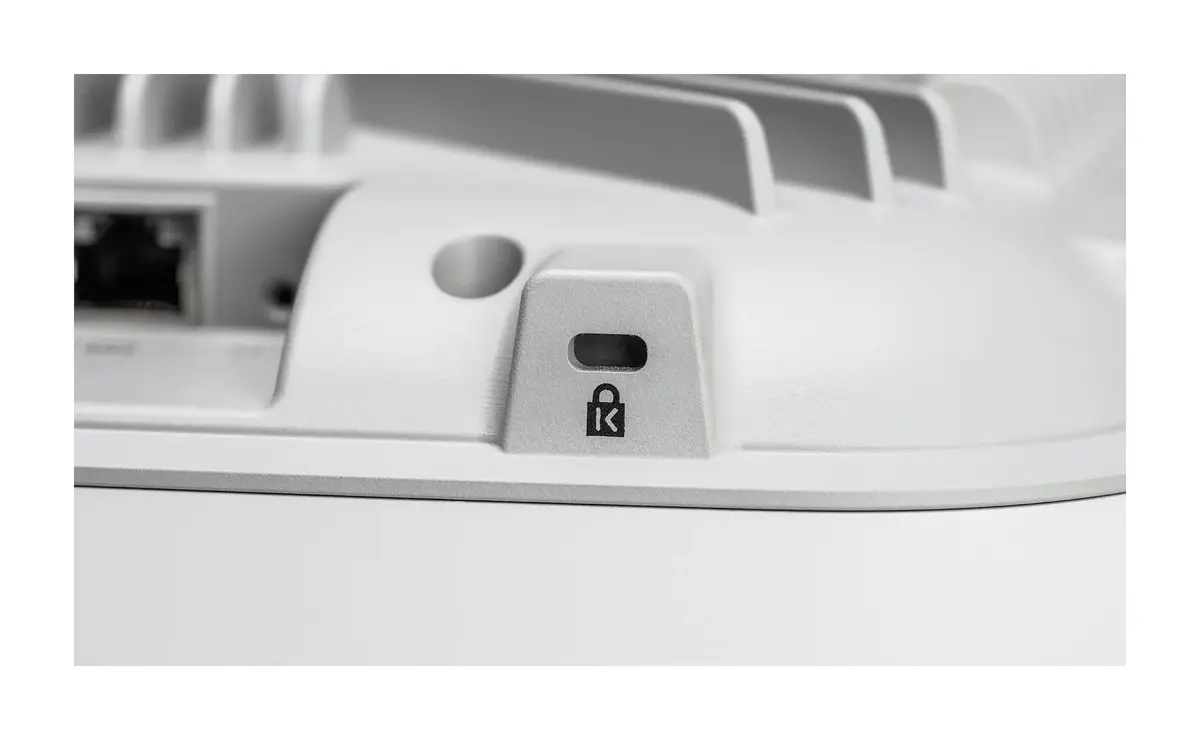

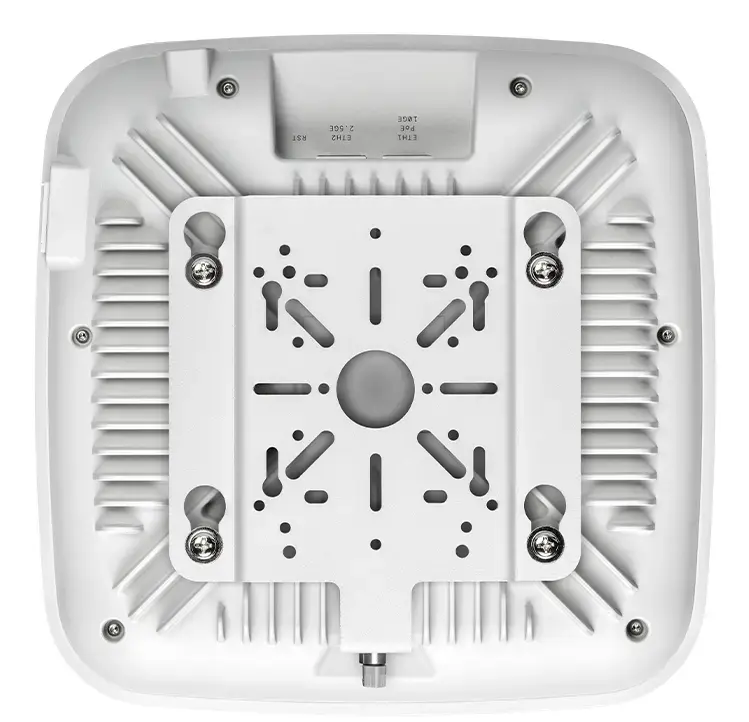

• Theft‑resistant mounting plate and field‑optimized housing design
• Power‑saving features with centralized consumption monitoring (LANCOM Active Power Control)
• Automated deployment and management via LANCOM Management Cloud (LMC); also WEBconfig or WLAN controller operation
• Per‑band PHY rates: 2.4 GHz 688 Mbit/s; 5 GHz 2882 Mbit/s; 6 GHz 5765 Mbit/s
• Wireless standards: IEEE 802.11a/b/g/n/ac/ax/be and related amendments
• Security: AES‑CCMP, AES‑GCMP, TKIP; WPA2/WPA3 support
• Power over Ethernet (PoE) support; internal antennas

How to use

Install the LANCOM LX-7200E at a central position in the coverage area and connect it to the network via the PoE+ capable 2.5 GE port or the 1 GE port. For digital signage, use the built‑in 2.4 GHz radio to pair VUSION or PDi Digital displays directly; attach supported external USB radio modules to operate SoluM or Hanshow displays. Configure operation mode through LANCOM Management Cloud, WEBconfig or a WLAN controller depending on your management strategy. Enable LANCOM Active Radio Control 2.0 and power‑management functions as needed to optimize performance and energy consumption. For IoT and ESL projects, provision BLE 5.4 devices and integrate them into your inventory or signage workflows.

Recommendations

For retail deployments with many displays or dense Wi‑Fi environments, plan channel use to leverage the 6 GHz band for critical, low‑latency services while using 2.4/5 GHz for legacy clients. Use the LANCOM Management Cloud for centralized rollout, enable Active Power Control to reduce energy consumption during idle periods, and verify compatibility of external USB radio modules with your chosen ESL vendor before installation.
