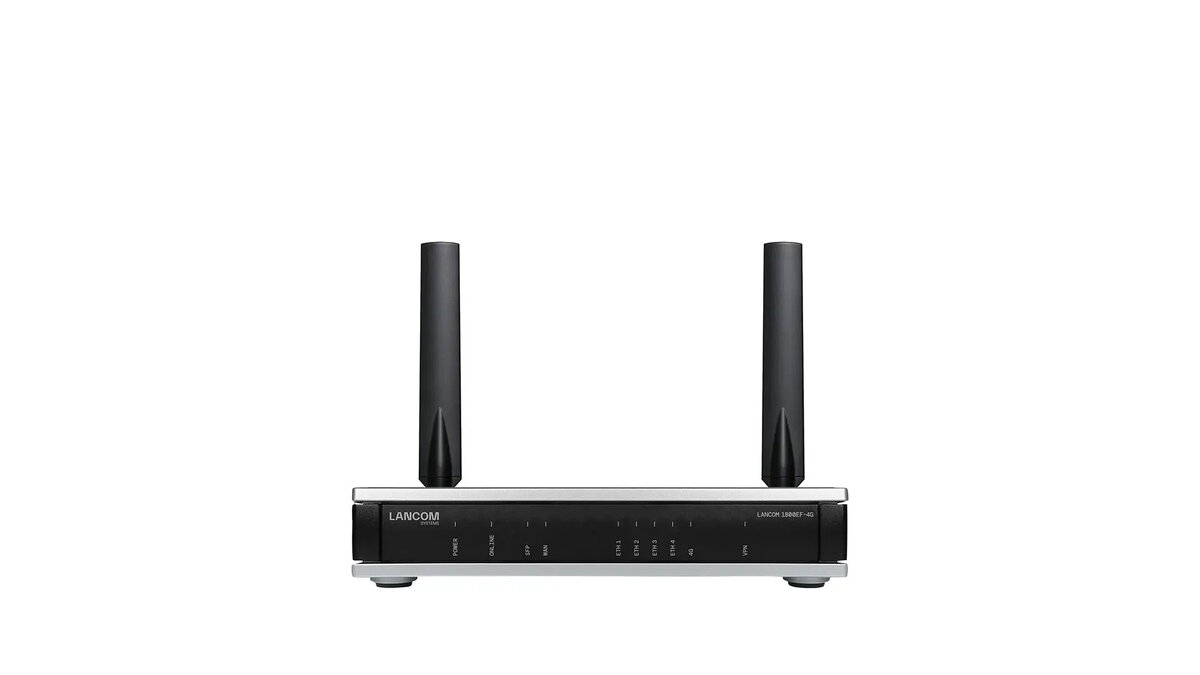

Router Lancom Systems LANCOM 1800EF-4G (EU) — 4G business router, Gigabit Ethernet, external SMA antennas, Kensington lock

WAN connection: A wide area network (WAN) is a network that covers a broad area (i.e. any telecommunications network that links across metropolitan, regional, or national boundaries such as the Internet) using private or public network transports. Business and government entities utilize WANs to relay data among employees, clients, buyers, and suppliers from various geographical locations.

SFP, Ethernet (RJ-45)

Number of fans: The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).

1 fan(s)

Power consumption (idle):

6 W

IGMP snooping:

Yes

VLAN support: A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.

Yes

Cable lock slot type:

Kensington

Password protection: The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure.

Yes

Traffic shaping:

Yes

DHCPv6 snooping:

Yes

Multicast Listener Discovery (MLD) snooping:

Yes

Control display unit:

No

Transmitting power (FCC):

23

PPTP/L2TP VPN tunnels (max):

5

Logistics data

Country of origin: Country where the device is made. Aka Country of manufacture (COM).

Germany

Customs product code (TARIC):

85176200

Packaging data

Package height: The distance from the top to the bottom of the packaging.

110 mm

Package depth: The distance from the front to the back of the packaging.

320 mm

Package width: The distance from one side of the packaging to the other.

210 mm

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

0.45 kg

Height: The measurement of the product from head to foot or from base to top.

45 mm

Depth: The distance from the front to the back of something.

140 mm

Width: The measurement or extent of something from side to side.

210 mm

Operational conditions

Operating relative humidity (H-H):

0 - 95

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 40

Power

Power consumption (max): The maximum amount of power used by the device.

17 W

Performance

Antenna gain level (max): Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction.

2 dBi

Antennas quantity:

2

Transmitting power (CE):

23

Antenna connector type: The way in which the antenna is connected to the device e.g. coaxial.

SMA

Antenna type: Type of antenna, also known an aerial, e.g. external, internal.

External

Network

Number of VLANs:

4096

Features

Heat dissipation: The heat generated by the power supply.

68 BTU/h

Packaging content

Quick installation guide:

Yes

AC adapter included:

Yes

Cables included:

LAN (RJ-45)

Certificates

Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

CE

Security

Firewall security: Part of a computer system or network which is designed to block unauthorized access while permitting outward communication.

Yes

Access Control List (ACL):

Yes

Authentication method:

PAP, CHAP, MS-CHAP, MS-CHAPv2

DMZ support:

Yes

Network address translation (NAT):

Yes

Security algorithms: Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.

FIPS 140, MD5, SHA-1, SHA-256, SHA-384, SHA-512, AES, 4096-bit RSA, 2048-bit RSA, 3DES, 1024-bit RSA, 256-bit AES-CBC

Ports & interfaces

DC-in jack: The socket/plug where the DC electricity supply connects to the device.

Yes

Serial interface type:

USB C

Combo SFP ports quantity:

1

USB 2.0 ports quantity: Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.

1

Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

4

WAN connection

SIM card slot: Whether the device features a SIM card slot.

Yes

Mobile network

Mobile network generation:

4G

SIM card type:

MicroSIM

UMTS bands supported:

850, 2100, 900, 1800

4G bands supported:

900, 700, 800, 850, 1500, 1800, 2100, 2300, 2500, 2600

Data network: Telecommunications network that allows computers to exchange data.

UMTS, LTE, HSPA

Ethernet LAN features

Supported network protocols: Network protocols tested as compatible with this product e.g. FTP,HTML, POP.

Ethernet over GRE-Tunnel (EoGRE), L2TPv3, ARP-Lookup, LLDP, DHCP option 82, IPv6-Router-Advertisement-Snooping, DHCPv6-Snooping, LDRA (Lightweight DHCPv6 Relay Agent), Spanning Tree, Rapid Spanning Tree, ARP, Proxy ARP, BOOTP, DHCP, LACP

Dynamic DNS (DDNS):

Yes

Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.1Q, IEEE 802.3az

Ethernet LAN data rates: The different speed levels of the Ethernet LAN connection.

1000, 100, 10

Design

Reset button:

Yes

Product colour: The colour e.g. red, blue, green, black, white.

Silver, Black

Protocols

Routing protocols:

VRRP, RIP-2, OSPFv2, LISP, BGP4
