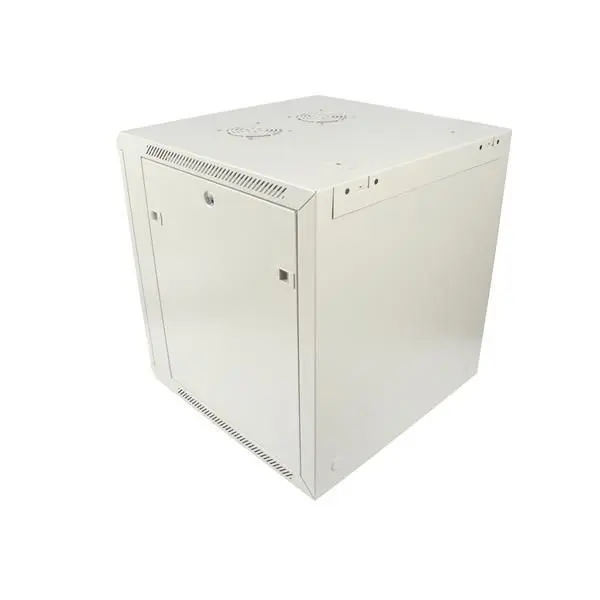

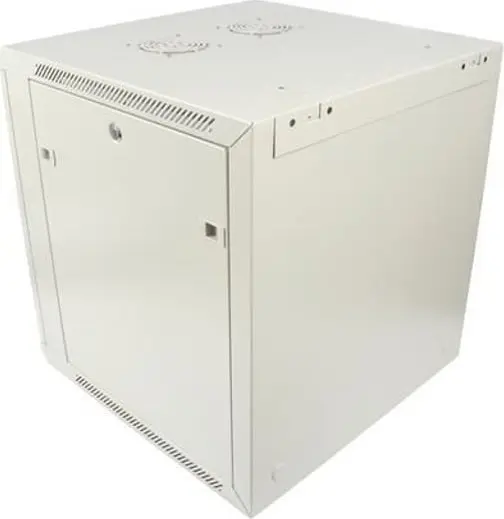

Lanview LVR240005 Wall Mounted Rack 10U Beige with Key Lock and Rack Rails

The Lanview LVR240005 wall mounted rack is a 10U capacity enclosure designed for organizing and securing network equipment, server components, and telecommunication hardware. Built with a sturdy closed steel frame and a beige finish, this 600mm wide cabinet provides a reliable housing solution for office IT installations and small server rooms. It features a plate door with an integrated key lock for enhanced security, removable side panels, electrosteel rails with a grounding connector, and adjustable cage nut rails for flexible equipment configuration.

Advantages

The rack offers a balanced combination of security, accessibility, and durability for small to medium IT setups. Its robust steel construction supports a maximum weight capacity of up to 60 kg while maintaining a compact footprint. Maintenance and installation are simplified through removable side panels and a removable front door, which allow convenient access to internal components during setup or servicing. Cable management is efficiently supported by integrated cable entry and exit cutouts. Additionally, the cabinet is prepared for optional installation of fan trays, shelves, and power distribution units.

Suitable for

• Office IT installations and local area networking equipment
• Small server rooms and network consolidation points
• Housing surveillance and security system hardware
• Storing audio and visual equipment components

When it may not be suitable

This wall mounted rack may not be suitable for large-scale enterprise deployments requiring high-density blade servers or heavy equipment exceeding the 60 kg weight limit. It is also not designed for harsh industrial environments, as it features an IP20 protection rating and lacks resistance to dust, moisture, or outdoor conditions.

Key specifications

• Rack capacity: 10U
• Maximum weight capacity: 60 kg
• Cabinet width: 600 mm
• Frame type: Closed steel frame
• Protection rating: IP20
• Color: Beige
• Door type: Removable plate door with key lock
• Rails: Electrosteel rails with grounding connector and adjustable cage nuts

How to use

Mount the cabinet securely to a solid wall using appropriate hardware capable of supporting the combined weight of the rack and installed equipment. Plan the cable routing using the top and bottom entry and exit cutouts before mounting devices. Install the adjustable cage nut rails at the desired depth to accommodate your specific hardware dimensions. Secure network switches, patch panels, or other compatible components onto the rack rails. Utilize the removable side panels and front door to facilitate cabling and ongoing equipment maintenance, and ensure the key lock is engaged to restrict unauthorized access.

What to consider before purchase

• Verify that the 10U height and 60 kg weight capacity are sufficient for your current and near-future equipment needs.
• Check the wall construction at your installation site to ensure it can safely support a wall-mounted enclosure of this type and weight.
• Confirm that the IP20 protection level meets the environmental requirements of your designated installation space.
• Assess whether additional accessories such as shelves, fan trays, or power strips are needed for your specific setup.

Ensure the cabinet is mounted to a load-bearing wall by qualified personnel and properly grounded using the integrated electrosteel rail connector to maintain operational safety and compliance.
