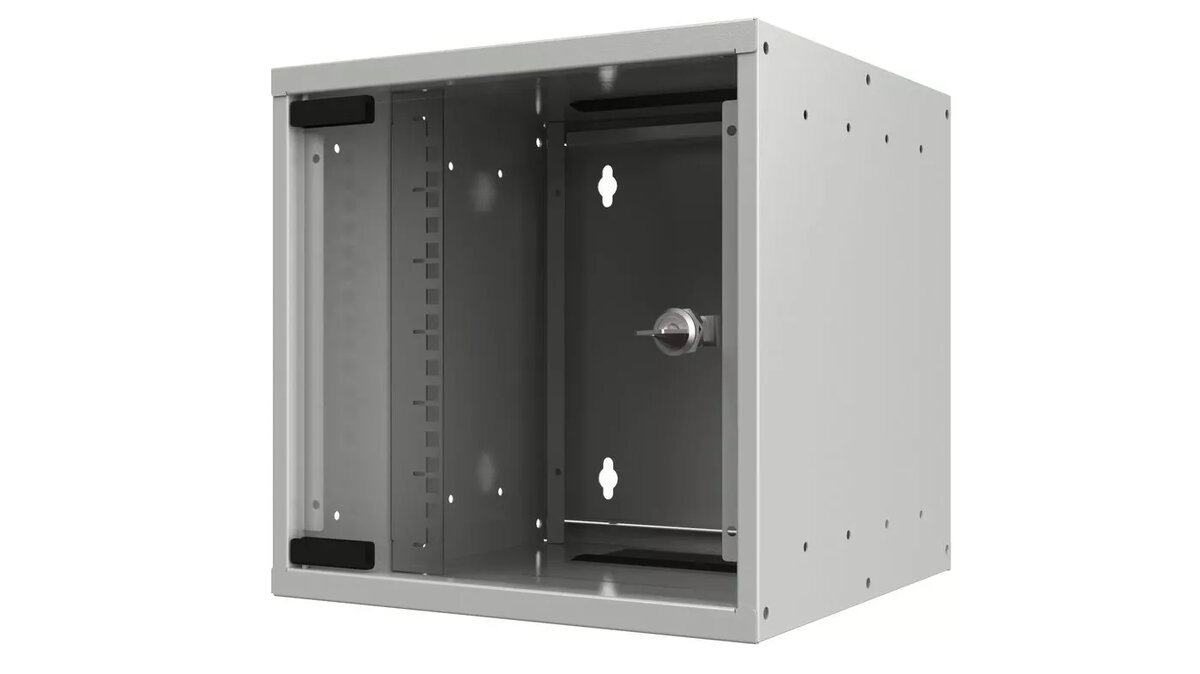

Rack Cabinet Lanview RSM09U30MNWH 9U White IP20 9.55 kg

The Lanview RSM09U30MNWH is a compact 9U wall-mount rack cabinet with IP20 protection, designed for small network and server installations. It measures 312 x 300 x 440 mm (height noted as 438 mm in product data) and weighs 9.55 kg. The cabinet is available in a white finish and provides a space-efficient, robust enclosure for intermediate distribution, floor network distribution points and wall-mounted network applications.

Advantages

The cabinet offers an aesthetic and decorative appearance that blends with its surroundings. The front door features a full-length, locked smoked tempered cover that is 4 mm thick, antistatic, ground and highly impact resistant. The cylindrical O-lock front cover can be repositioned to change the opening direction, and the glass door module uses a special U-type screw hinge system for secure installation. Available in both 19" and 10" widths and in 300 mm or 400 mm depths, it provides flexibility for different equipment profiles.

Suitable for

• Small system installations
• Intermediate distribution terminals
• Network floor distribution points
• Wall-mounted network equipment in offices, server rooms or SOHO environments

Key specifications

• Model: Lanview RSM09U30MNWH
• Rack capacity: 9U
• IP rating: IP20
• Dimensions (approx.): 312 x 300 x 440 mm (product data lists height 438 mm)
• Depth options: 300 mm (this model) and 400 mm (other variants)
• Width options: 10" and 19"
• Weight: 9.55 kg
• Colour: White

How to use

Mount the cabinet securely to a suitable wall structure using appropriate fixings for the wall type and the cabinet weight. Open the front smoked tempered cover using the cylindrical O-lock; if needed, change the door opening direction before installation. Install 19" or 10" rack equipment into the 9U frame using standard rack rails and fasteners. Route power and network cabling through the designated cable entry points, taking care to maintain ventilation and to avoid overloading the mounting surface.

Usage recommendations

For safe and reliable operation, install the cabinet on a load-bearing wall and follow local building and electrical codes. Leave clearance for airflow and service access, and avoid placing heat-generating equipment in a fully enclosed space without additional ventilation.
