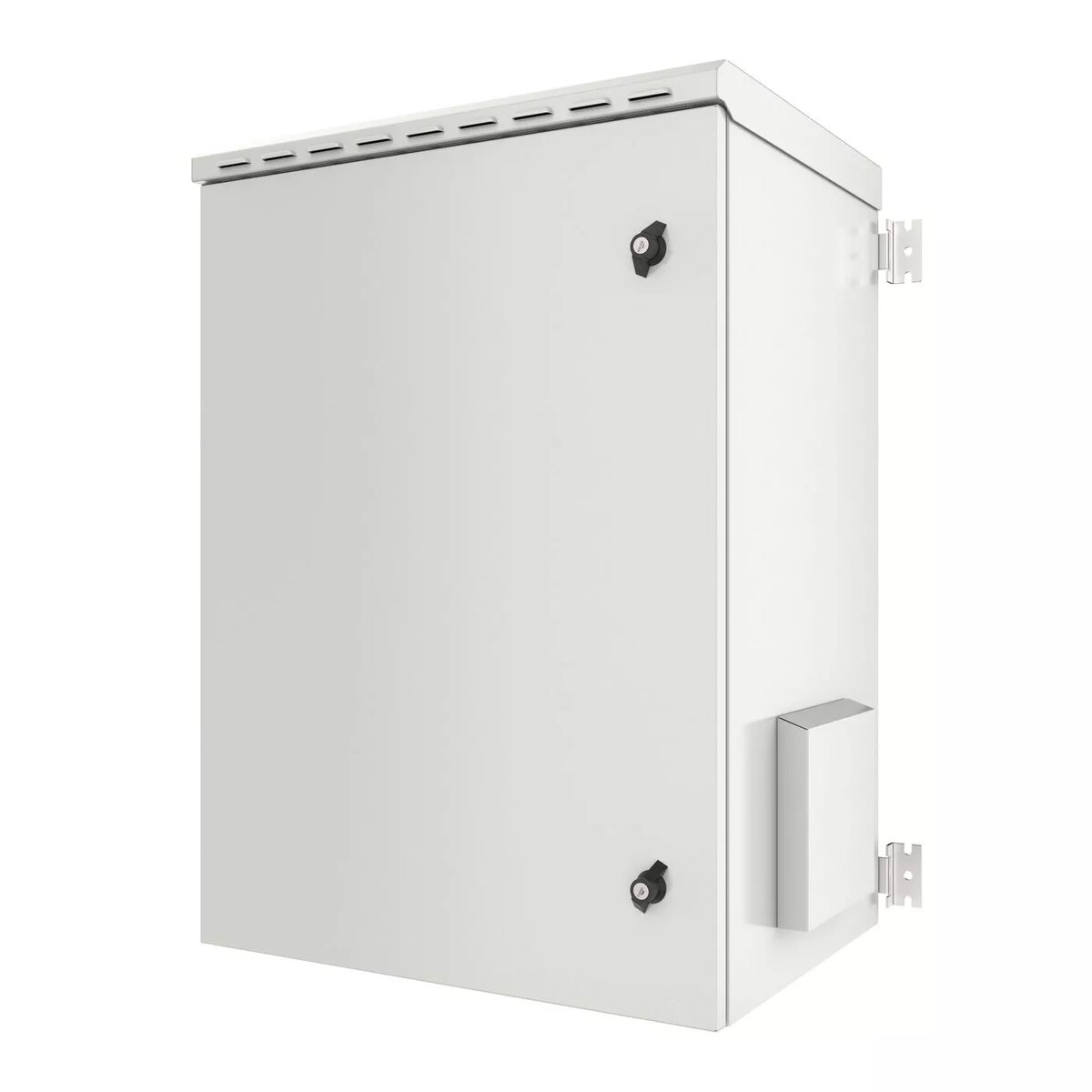

Rack cabinet Lanview RWMIP55W16U45W 16U IP55 White

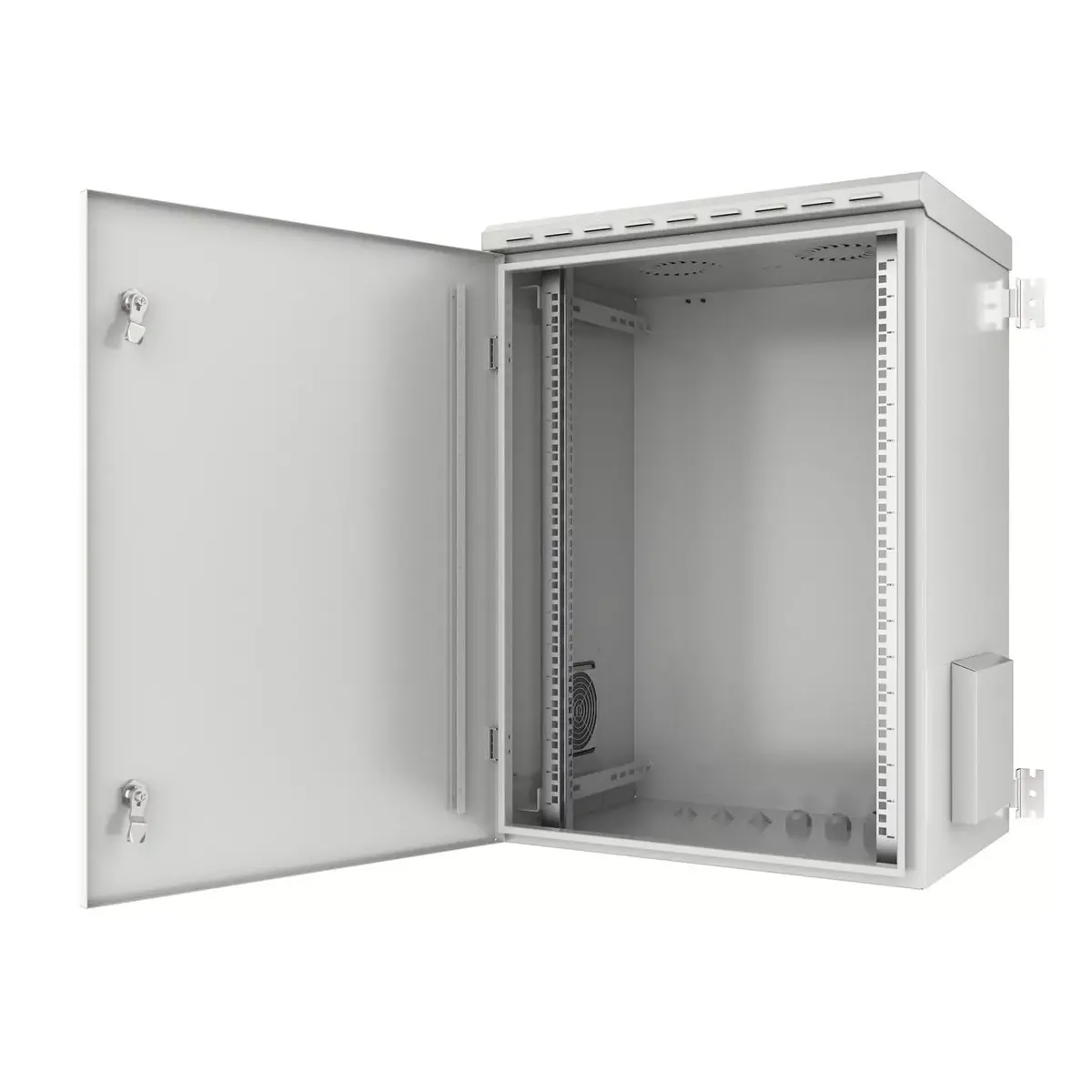

The Lanview RWMIP55W16U45W 16U IP55 White rack cabinet measures 600 x 450 x 810 mm and is designed to provide protected equipment storage with a durable white finish. The cabinet features 4 mm antistatic tempered glass side strips set in an extruded aluminum frame for improved fracture resistance and a neat appearance. It is supplied with one set of two device installation rails pre-mounted to allow depth adjustment of installed equipment and includes 145 x 70 mm cable inlet openings on the top, bottom and rear doors for three-directional cable entry. Side doors are fixed (non-detachable), so access is from the front in wall-mount applications and from the front and rear in free-standing applications. In free-standing setups the cabinet can accept optional pinion feet or a caster group. Ventilation holes on the upper chassis provide passive airflow; attaching an optional ventilation module with up to two fans enables active ventilation. The cable entry module has a rubber-edged, movable 0–50 mm sliding compression system to secure incoming cables and reduce dust ingress.

Advantages

The cabinet’s IP55 rating offers protection against dust and water spray suitable for demanding environments. Antistatic tempered glass with an aluminum frame increases durability while maintaining visibility to installed equipment. Pre-mounted device rails speed up installation and allow adjustable equipment depth. Multiple cable inlets and a rubber-edged, sliding compression cable module simplify cabling and limit dust entry. Compatibility with optional feet or casters and an optional fan module provides installation flexibility and configurable ventilation.

Suitable for

• Secure housing of network switches, routers and servers in office or industrial locations
• Environments requiring protection from dust and water spray (IP55-rated enclosures)
• Wall-mounted or free-standing installations with optional feet or casters
• Racks where controlled cable entry and adjustable device depth are needed

Key specifications

• Model: Lanview RWMIP55W16U45W
• Rack units: 16U
• Dimensions (HxWxD): 600 x 450 x 810 mm
• Weight: 38 kg
• Protection rating: IP55
• Side glazing: 4 mm antistatic tempered glass in extruded aluminum frame
• Cable inlets: 145 x 70 mm on top, bottom and rear doors
• Device rails: 1 set of 2 pre-mounted, depth adjustable
• Ventilation: passive via holes; optional fan module with up to 2 fans for active ventilation
• Accessories (optional): pinion feet, caster group, fan ventilation module

How to use

Mount the cabinet on the wall or place it as a free-standing unit; for free-standing use, fit optional pinion feet or casters if required. Install equipment on the pre-mounted device rails and adjust the rail depth to accommodate devices. Route cables through the 145 x 70 mm inlets on the top, bottom or rear doors and secure them using the rubber-edged sliding compression cable entry module, adjusting it within the 0–50 mm range to compress and protect cables. If increased cooling is needed, attach the optional ventilation module with up to two fans to the upper chassis ventilation opening to enable active airflow; otherwise rely on the passive ventilation holes for natural air circulation.

Usage recommendations

For best protection and airflow management, place heat-generating equipment with sufficient clearance, use the rubber-edged cable module to seal cable entries, and install the optional fan module when device density or ambient temperatures require active cooling.
