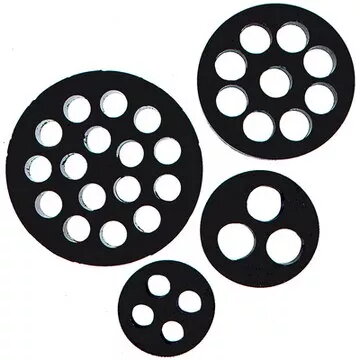

Lapp SKINTOP DIX-M Cable Entrance End Fitting, 16-Hole, M50, Black Rubber

The Lapp SKINTOP DIX-M is a professional-grade cable entrance end fitting engineered for efficient and organized cable management in demanding industrial environments. This M50 fitting is constructed from high-quality, durable black NBR rubber, providing a robust solution for routing multiple cables through a single entry point while maintaining environmental integrity. Its design allows for a higher packing density, enabling the use of smaller enclosures without compromising on the number of cables installed.

Advantages

The primary benefit of the SKINTOP DIX-M is its ability to facilitate the easy insertion of several cables through one fitting, which significantly simplifies installation and saves space. The use of resilient NBR rubber ensures that each cable is held securely, providing reliable sealing against dust and moisture. By allowing multiple cables to pass through a single M50 opening, this fitting helps maintain a clean, professional, and organized cable layout, reducing the complexity of panel or enclosure wiring.

Suitable for

• Industrial control panels and electrical enclosures
• Applications requiring high cable packing density
• Environments where protection against dust and moisture is necessary
• Organized routing of multiple cables through a single entry point

When it may not be suitable

This fitting is not intended for use in environments requiring extreme chemical resistance or high-pressure washdown conditions, as it is designed primarily for standard industrial sealing. It should not be used with cables that fall outside the specified diameter range, as this will compromise the sealing effectiveness of the individual holes.

Key specifications

• Material: NBR rubber
• Hole configuration: 16 holes
• Individual hole diameter: 6 mm
• Thread size: M50
• Color: Black
• Design: Multiple sealing insert

How to use

To install the SKINTOP DIX-M, ensure the enclosure opening is prepared for an M50 fitting. Insert the cables through the individual 6mm holes in the rubber seal. The flexible nature of the NBR material allows for smooth insertion. Once the cables are positioned, secure the fitting into the enclosure to ensure the seal is properly compressed against the cables and the housing wall, providing the intended protection.

What to consider before purchase

• Verify that the cable diameter matches the 6mm hole size for an effective seal
• Ensure the M50 thread size is compatible with your existing enclosure or cable gland system
• Confirm the environmental requirements of your application match the IP54 rating

Usage recommendations

For optimal sealing performance, ensure that all 16 holes are either occupied by a cable or properly plugged if unused. Avoid over-tightening the fitting to prevent deformation of the rubber insert, which could affect the integrity of the seal.
