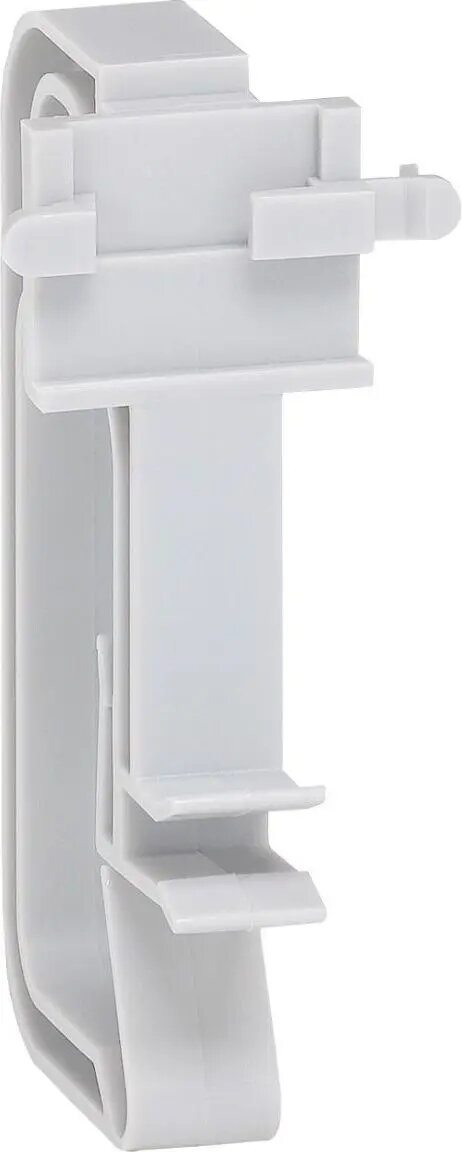

Cable clamp, Legrand 020094, plastic horizontal mounting

Legrand 020094 is a plastic horizontal cable clamp designed to secure and route cables in electrical installations. Compact and lightweight, this clamp provides a fixed mounting point for single or grouped cables and is intended for panel, enclosure or surface mounting. The simple shape and durable plastic material help organize cable runs while reducing movement and wear in residential, commercial or light industrial wiring.

Advantages

The clamp offers a low-profile mounting solution that minimizes space consumption while holding cables firmly in place. Its plastic construction resists corrosion and electrical conductivity, making it suitable for environments where metal fasteners are not desired. The design facilitates quick installation and straightforward cable routing without the need for specialized tools.

Suitable for

• Securing single or grouped electrical and data cables inside panels and enclosures
• Surface mounting along walls or equipment frames to route cable runs
• Organizing wiring in residential, office, retail or light industrial installations

Key specifications

• Material: durable non-conductive plastic
• Mounting orientation: horizontal
• Mounting type: fixed-point screw or bolt installation
• Application: cable securing and routing for insulated electrical and data cables
• Profile: compact, low-profile design to reduce space usage

How to use

Position the clamp at the desired mounting point on the panel, enclosure or surface, then secure it using an appropriately sized screw or bolt through the mounting hole. Place the cable or cable bundle into the clamp and ensure it is seated without excessive compression. Tighten the fastener to hold the clamp firmly in place while avoiding over-tightening that could deform the plastic or damage cable insulation. Verify cable routing and strain relief after installation.

Usage recommendations

Choose a screw or bolt length and head type that match the mounting surface thickness. Use clamps at regular intervals to prevent sagging of long cable runs and avoid overtightening to preserve cable insulation. For environments with higher mechanical stress or vibration, combine with additional strain relief measures or use clamps at closer spacing.
