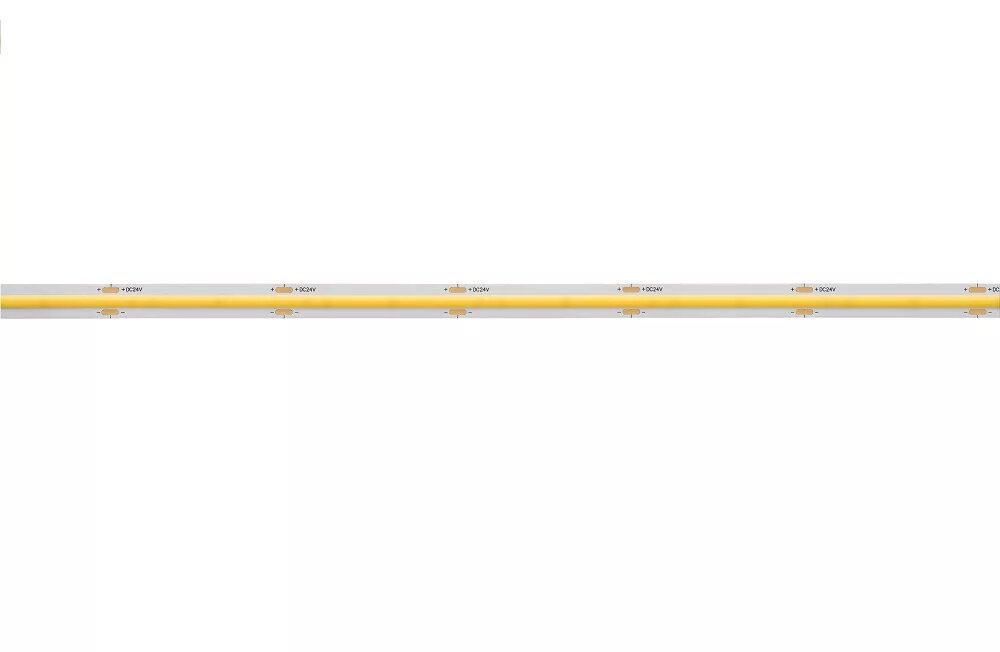

LED strip LEMLUX COB-NW480 24V DC, 12 W/m, COB 480 LEDs/m, 1300 lm/m, 4000K, IP20, 180° beam

LEMLUX COB-NW480 is a 24V DC COB LED strip that delivers continuous neutral white light at 4000K with a nominal output of 1300 lm per meter. With a power consumption of 12 W/m and a dense COB arrangement of 480 LEDs per meter, this strip provides even, high-quality illumination with a wide 180° beam. The product is designed for indoor installations (IP20) on a 10 mm PCB and can be cut every 50 mm to fit specific lengths. A colour rendering index above 90 ensures accurate colour reproduction for most interior tasks.

Advantages

The COB design produces a uniform light line with reduced visible dotting compared to standard SMD strips, making it suitable where seamless illumination is required. High CRI (>90) and neutral white 4000K colour temperature offer a natural appearance of surfaces and materials. Its 24V operation reduces voltage drop over longer runs compared with lower-voltage strips, and the 50 mm cut segments allow flexible planning and installation for continuous runs or shorter lengths.

Suitable for

• Under-cabinet and task lighting in kitchens and workspaces
• Accent and coving lighting to create continuous light lines
• Retail shelving and display illumination where colour fidelity is important
• Architectural details and furniture integration requiring seamless light

Key specifications

• Voltage: 24 V DC
• Power consumption: 12 W per meter
• LED arrangement: COB, 480 LEDs per meter
• Light output: approximately 1300 lumens per meter
• Colour temperature: Neutral white, 4000 K
• Beam angle: 180° for wide, even light distribution
• Colour rendering index: >90 (CRI)
• PCB width: 10 mm
• Recommended cut segment: 50 mm
• Ingress protection: IP20 (indoor use only)

How to use

Plan the required length and mounting surface, ensuring the 10 mm PCB and strip thickness are compatible with the installation channel or housing. Cut the strip at the marked 50 mm segments to achieve the desired length. Connect to a compatible 24 V DC constant-voltage power supply sized to handle the total wattage (12 W per meter multiplied by installed meters) and observe correct polarity. Use appropriate connectors, solder joints or approved terminals and secure the strip using recommended mounting channels, clips or heat-conductive adhesive. Ensure adequate ventilation and avoid exposure to moisture or outdoor conditions, as the product has IP20 protection.

Usage recommendations

For long continuous runs, factor in voltage drop and plan multiple feed points or shorter runs to maintain uniform brightness. Use aluminium profiles or channels for heat dissipation and to achieve a flushed, uniform light line. Match the LED strip with a constant-voltage 24 V driver sized with at least 10–20% headroom above calculated power to extend lifespan and maintain stable output. Avoid direct contact with water or high-humidity environments due to IP20 rating.
