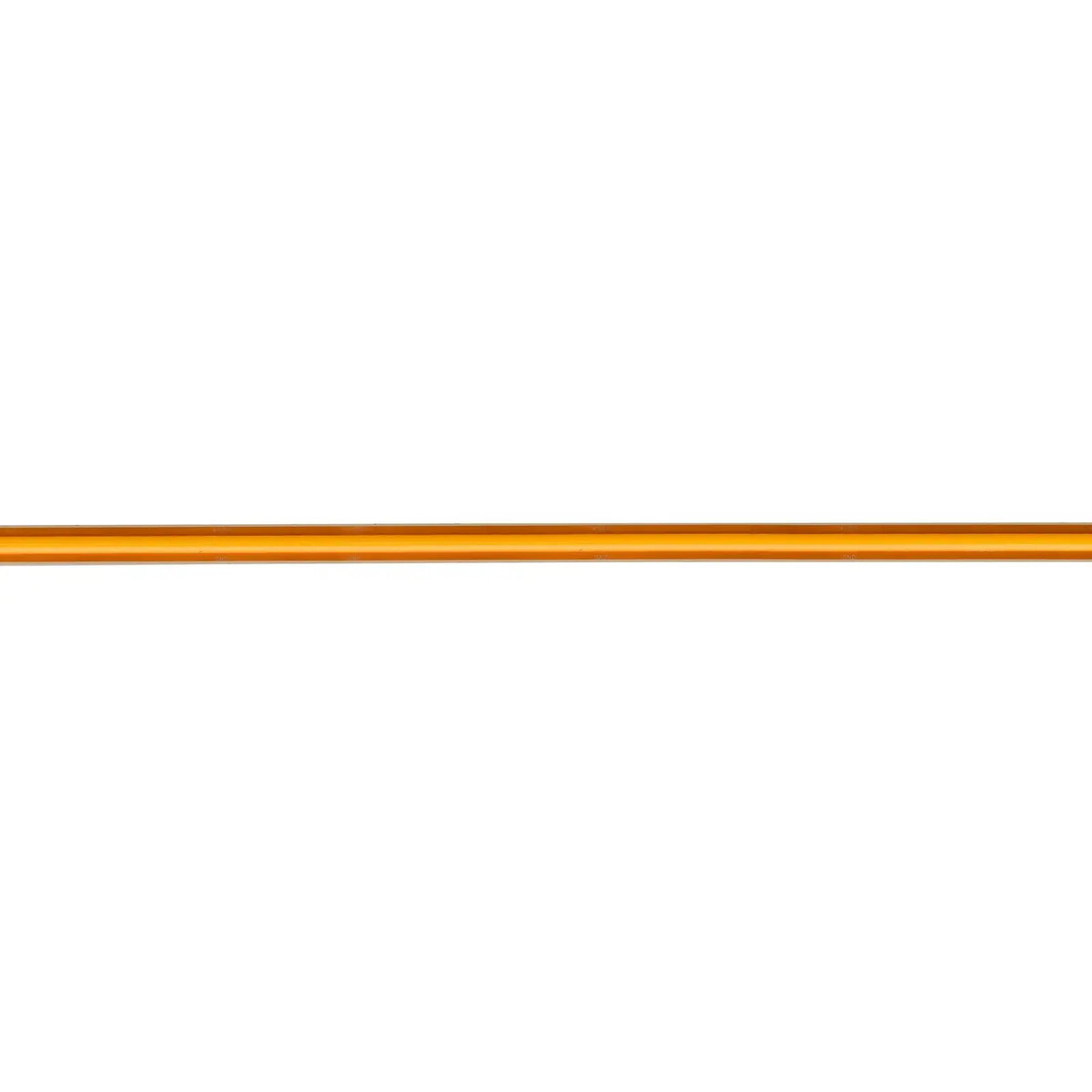

LED strip LEMLUX COB-NW528FC-13-12 12V DC 1000 lm

LEMLUX COB-NW528FC-13-12 is a 12 V DC LED strip that produces 1000 lm per metre with a neutral white 4000K color temperature. The strip uses COB (chip-on-board) technology to deliver continuous, uniform light and includes the FREE CUT feature which allows cutting every 1 mm for precise length adjustments. The product is intended for indoor installations such as under-cabinet, display and task lighting where a smooth, even light output and exact sizing are required.

Advantages

The FREE CUT technology permits cutting the LED strip at any point with 1 mm segments, enabling accurate fitting in furniture and confined spaces. COB construction provides a continuous light appearance without visible point sources, while the solid copper-ready soldering tracks on the strip edges allow wires to be soldered at any chosen position. Low-voltage 12 V operation, a 13 W/m power rating and a 5-year warranty make the product suitable for long-term indoor use.

Suitable for

• Under-cabinet lighting in kitchens and worktops
• Illuminating display cabinets and shelving
• Task lighting in workshops and office furniture
• Decorative installations inside furniture and closets

Key specifications

• Voltage: 12 V DC
• Power: 13 W/m
• LED type: COB, 528 LEDs/m
• Color temperature: Neutral white 4000 K
• Light output: 1000 lm/m
• Beam angle: 180°
• PCB width: 8 mm
• Cut segment: 1 mm (FREE CUT)
• IP rating: IP20
• Warranty: 5 years

How to use

Measure the required length and cut the strip at the desired 1 mm FREE CUT point. Solder supply wires to the solid soldering tracks on the strip edges or use compatible connectors designed for COB strips. Mount the strip on a clean, dry surface appropriate for IP20-rated products and connect to a 12 V DC constant-voltage driver sized to the strip length (calculate wattage by multiplying 13 W by metres used). Follow electrical safety standards when wiring and energizing the strip.

Usage recommendations

For best results, use within dry indoor environments and avoid exposure to moisture. Ensure the 12 V driver has adequate capacity and provide heat dissipation where necessary; avoid bending the strip sharply at the PCB width to prevent damage.
