LED strip LEMLUX NF-9W24V-WWH5M 24V DC 7.2 W/m warm white IP67, 5 m

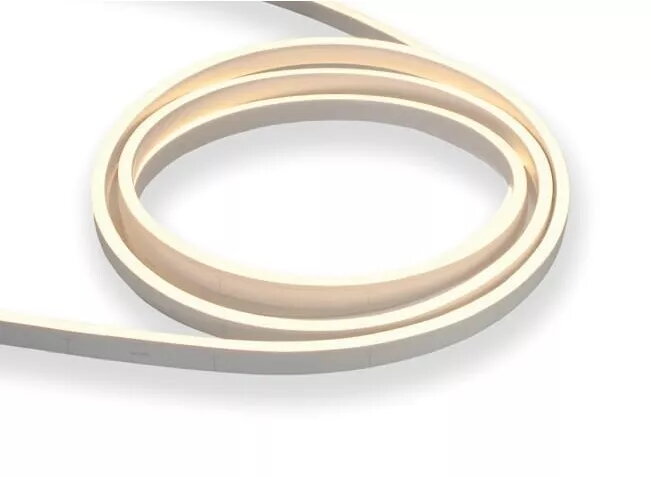

Flexible LED strip LEMLUX NF-9W24V-WWH5M is a 5 m waterproof lighting solution operating at 24V DC. The strip uses 2835 SMD LEDs (120 LEDs/m) with Epistar chips and delivers about 450 lm total output. Designed for protected installations in damp or outdoor conditions, it has an IP68 rating, a rated life of 50,000 hours and a 3-year warranty. The roll length is 5 meters and the product is cuttable every 25 mm.

Advantages

The LED strip provides consistent warm white illumination with a wide 180° beam angle and stable low-voltage operation at 24 V DC. Its sealed construction (IP68) allows use in wet or damp locations when mounted in a bracket or aluminium channel. The product offers long lifetime (50,000 hrs) and comes with a three-year warranty for reliable, long-term use.

Suitable for

• Under-cabinet and kitchen lighting where low-voltage, protected mounting is required
• Decorative and accent lighting on facades or in wet outdoor areas (when installed in a suitable channel)
• Task lighting in bathrooms, kitchens, or utility spaces with protected installation

Key specifications

• Model: LEMLUX NF-9W24V-WWH5M
• Length: 5 m (roll)
• Rated voltage: 24 V DC
• Power: 9 W/m (product listing indicates 7.2 W/m in summary — use 9 W/m as stated in technical data)
• Luminous output: approx. 450 lm (total)
• LED type and density: 2835 SMD, 120 LEDs/m
• Chip brand: Epistar
• Beam angle: 180°
• IP rating: IP68
• Cuttable length: 25 mm
• Dimensions (profile indicated): 50,000*06*12 mm (as provided)
• Operating temperature: -25°C to 60°C
• Lifetime: 50,000 hours
• Warranty: 3 years

How to use

Prepare a suitable 24 V DC power supply sized to the total length and power consumption of the strip. Cut the strip only at the marked 25 mm intervals. Install the strip into a mounting bracket or aluminium channel for protected mounting and to maintain the IP68 integrity where required. Make electrical connections following polarity markings and ensure connectors and power supply are protected from moisture if used outdoors.

Usage recommendations

For outdoor or wet-area installations, mount the strip inside an appropriate aluminium channel or bracket and use IP-rated connectors and a weatherproof 24 V DC power supply. Verify total power draw before connecting the strip to a power source and avoid exceeding the strip's rated operating temperature range.
