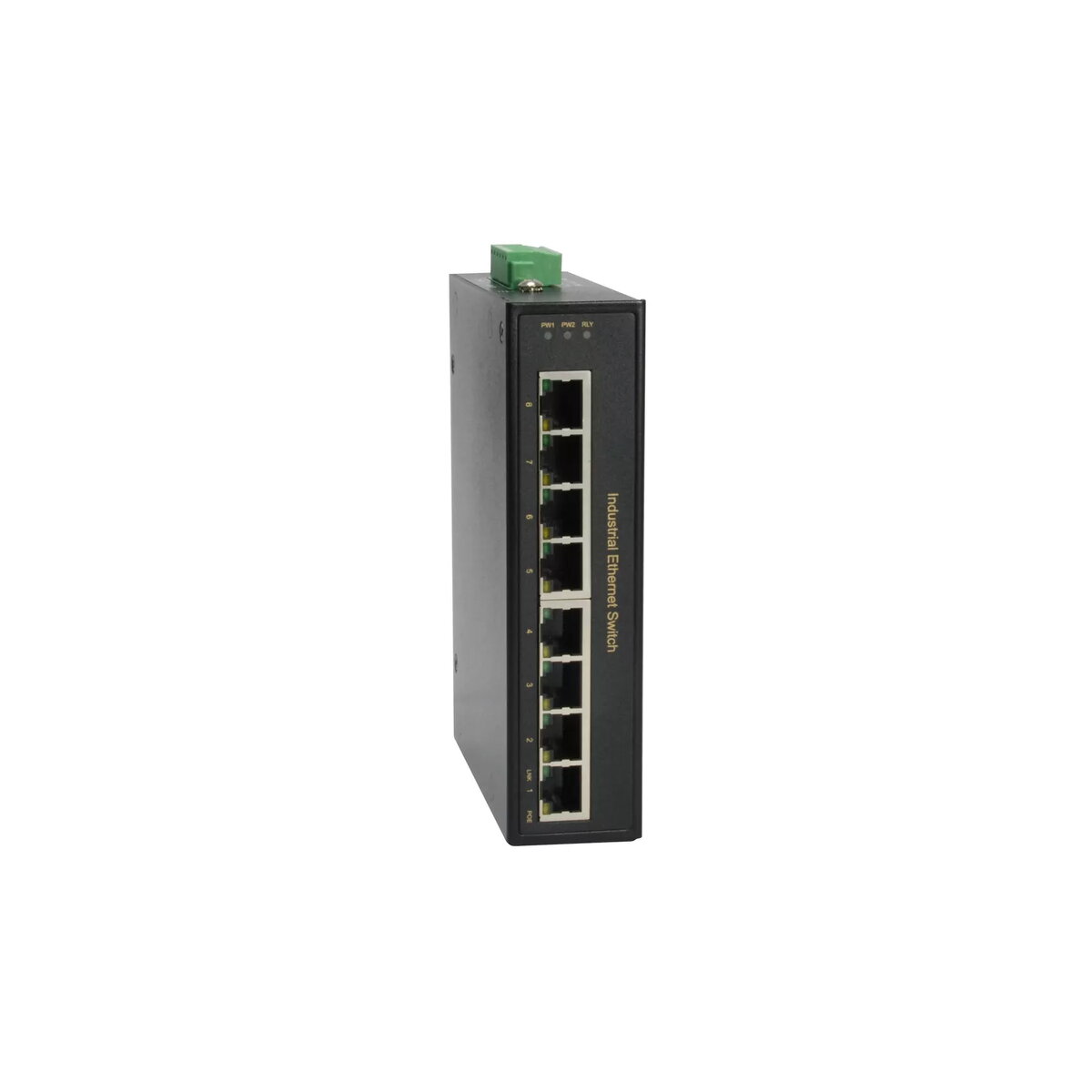

The LevelOne IFP-0801 is an industrial 8-port 10/100 Mbps high-power PoE switch with four ports capable of supplying up to 30 W each. Designed for 48–56 VDC input, it is intended for IP surveillance, traffic monitoring and other applications requiring reliable PoE power in harsh environments. The compact metal housing and multiple mounting options allow installation in vehicles such as buses and trucks or in fixed industrial and telecommunications setups.
Advantages
The switch supports IEEE 802.3at on PoE ports to power higher-load devices, operates across a wide temperature range from 40°C to 75°C, and provides flexible mounting on DIN-rail, wall or desktop. Its IP30 metal case and redundant power inputs with both terminal block and DC jack increase reliability for security, transportation and telco deployments.
Key specifications
- Ports: 8 x 10/100 Mbps ports, auto-negotiation, auto MDI/MDIX
- PoE: 4 PoE PSE ports, up to 30 W per port, IEEE 802.3at compliant
- Input voltage: 48–56 VDC
- Operating temperature: -40°C to 75°C
- Housing: IP30 metal case
- Mounting: DIN-rail, wall or desktop
- Power inputs: redundant inputs via terminal block and DC jack
How to use
Connect a 48–56 VDC power source to the terminal block or DC jack and mount the switch using the chosen method (DIN-rail, wall or desktop). Attach IP cameras, traffic sensors or other network devices to the 10/100 Mbps ports; PoE-capable devices connected to the four PSE ports will receive up to 30 W each when using IEEE 802.3at-compatible equipment. The switch performs auto-negotiation and auto MDI/MDIX for straightforward link setup.
Recommendations
Verify that connected devices support IEEE 802.3at to utilize 30 W PoE and ensure the power source can supply sufficient current for all powered devices. For vehicle installations, confirm secure mounting and vibration isolation according to vehicle specifications.
Features
- Power over Ethernet (PoE):
- Yes
- Switching capacity:
- 1.6 Gbit/s
- MAC address table:
- 1000 entries
- 10G support:
- No
- Basic switching RJ-45 Ethernet ports type:
- Fast Ethernet (10/100)
- Basic switching RJ-45 Ethernet ports quantity:
- 12
- Networking standards:
- IEEE 802.3, IEEE 802.3x, IEEE 802.3u, IEEE 802.3at, IEEE 802.3af
Product comparison
The industrial switch LevelOne IFP-0801 8-Port Fast Ethernet PoE is compared with several alternative network devices from the same brand. All options support Power over Ethernet and standard networking protocols, but they differ in port speeds, switching capacity, operating temperature ranges, and intended deployment environments. The main distinctions lie in Gigabit speed support, overall PoE power budgets, and ruggedness for harsh conditions.
⚙️ The table below compares the Ethernet port type, switching capacity, MAC address table size, PoE support, and operating temperature range.
| Parameter | LevelOne IFP-0801 8-Port Fast Ethernet PoE | Unmanaged Switch LevelOne IGP-0802 8-Port Gigabit PoE | PoE Switch LevelOne 10-Port Fast Ethernet 520831 | 10-Port Fast Ethernet PoE Switch LevelOne FGP-1000W90 | PoE Switch LevelOne GEP-0821 8-Port Gigabit 802.3at/af | Unmanaged Switch LevelOne 5-Port Fast Ethernet Industrial Switch | Practical significance |
|---|---|---|---|---|---|---|---|
| Port type | Fast Ethernet (10/100) | Gigabit Ethernet | Gigabit Ethernet | Fast Ethernet (10/100) | Gigabit Ethernet | Fast Ethernet (10/100) | Gigabit models deliver higher data transfer speeds for modern bandwidth-heavy networks. |
| Switching capacity | 1.6 Gbit/s | 16 Gbit/s | 5.6 Gbit/s | 5.6 Gbit/s | 16 Gbit/s | Not specified | Higher switching capacity ensures stable packet handling under heavy network traffic loads. |
| PoE support | Yes (4 ports, 126W) | Yes (8 ports, 200W) | Yes (8 ports, 120W) | Yes (8 ports, 90W) | Yes (8 ports, 123.2W) | No | PoE-enabled units power remote edge devices directly, whereas non-PoE units require separate power sources. |
| Operating temperature | -40°C to 75°C | -40°C to 75°C | Standard | Standard | Standard | -20°C to 70°C | Rugged industrial models with wide temperature ranges tolerate extreme outdoor or factory environments. |
◎ The suitability table below evaluates which user scenarios best match each specific network device.
| Use case | Recommended product | Why |
|---|---|---|
| Harsh outdoor or industrial environments requiring PoE | LevelOne IFP-0801 8-Port Fast Ethernet PoE | Engineered to withstand extreme temperatures from -40°C to 75°C while supplying power to connected equipment. |
| High-speed data demands in rugged environments | Unmanaged Switch LevelOne IGP-0802 8-Port Gigabit PoE | Combines gigabit speeds, a high PoE power budget, and wide-temperature industrial resilience. |
| Standard office or surveillance setups with gigabit uplinks | PoE Switch LevelOne 10-Port Fast Ethernet 520831 | Provides gigabit RJ45 and SFP uplink ports suited for standard temperature indoor monitoring rooms. |
The LevelOne IFP-0801 8-Port Fast Ethernet PoE differs from alternative switches by focusing heavily on extreme industrial environment endurance, operating reliably from -40°C to 75°C. It is most suitable for harsh outdoor deployment or manufacturing plants, whereas office or gigabit-capable alternatives are preferable for climate-controlled indoor spaces requiring higher speeds.
