Managed Switch LevelOne Hilbert 5-Port Industrial Gigabit PoE Smart Lite Switch

Name: Managed Switch LevelOne Hilbert 5-Port IGS-2105P
Brand: LEVELONE
SKU: 10965671
Price: 119.49 EUR
Availability: InStock

JBL – powerful sound always with you

JBL speakers and headphones for pure and deep sound!

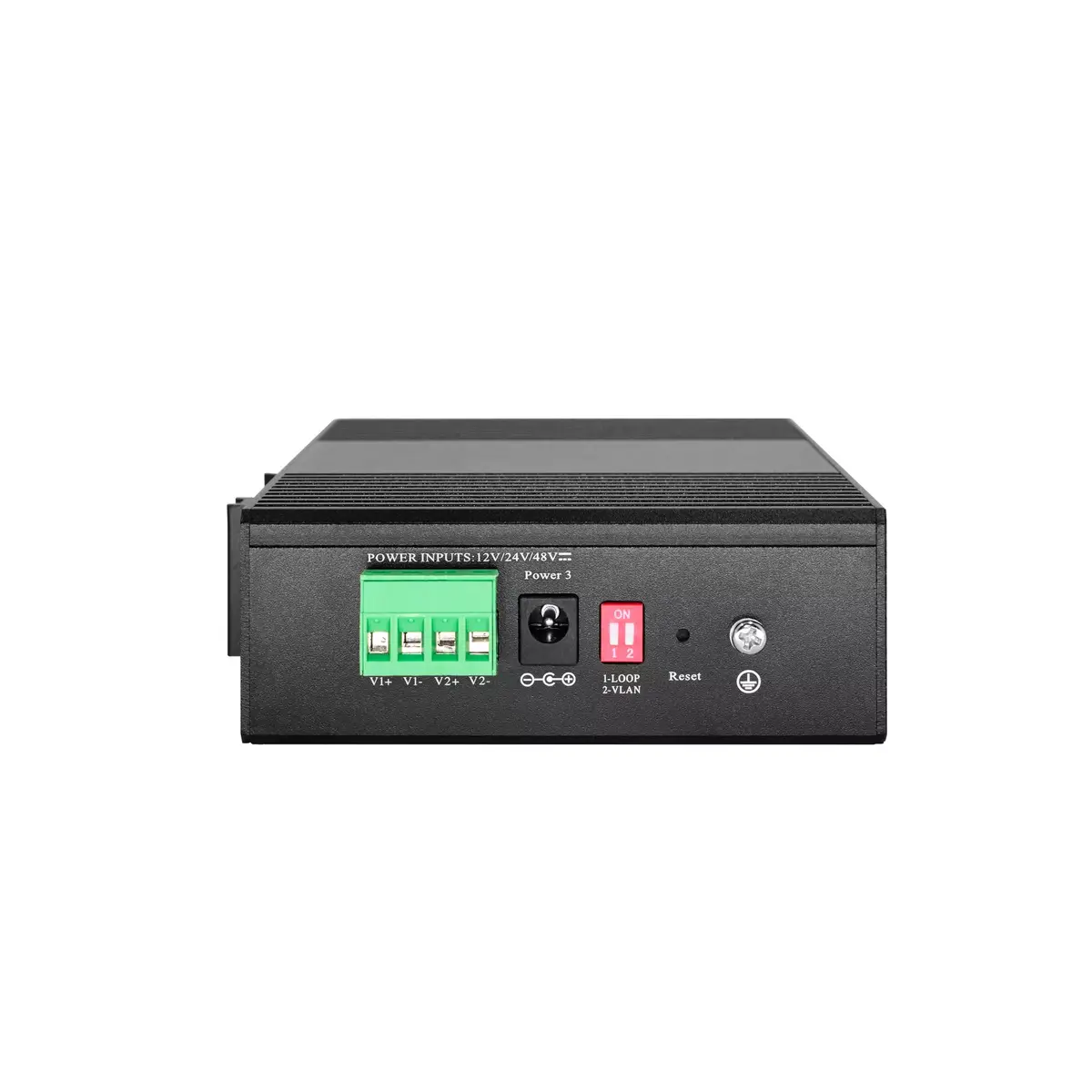

Managed Switch LevelOne Hilbert 5-Port Industrial Gigabit PoE Smart Lite Switch Photo 3

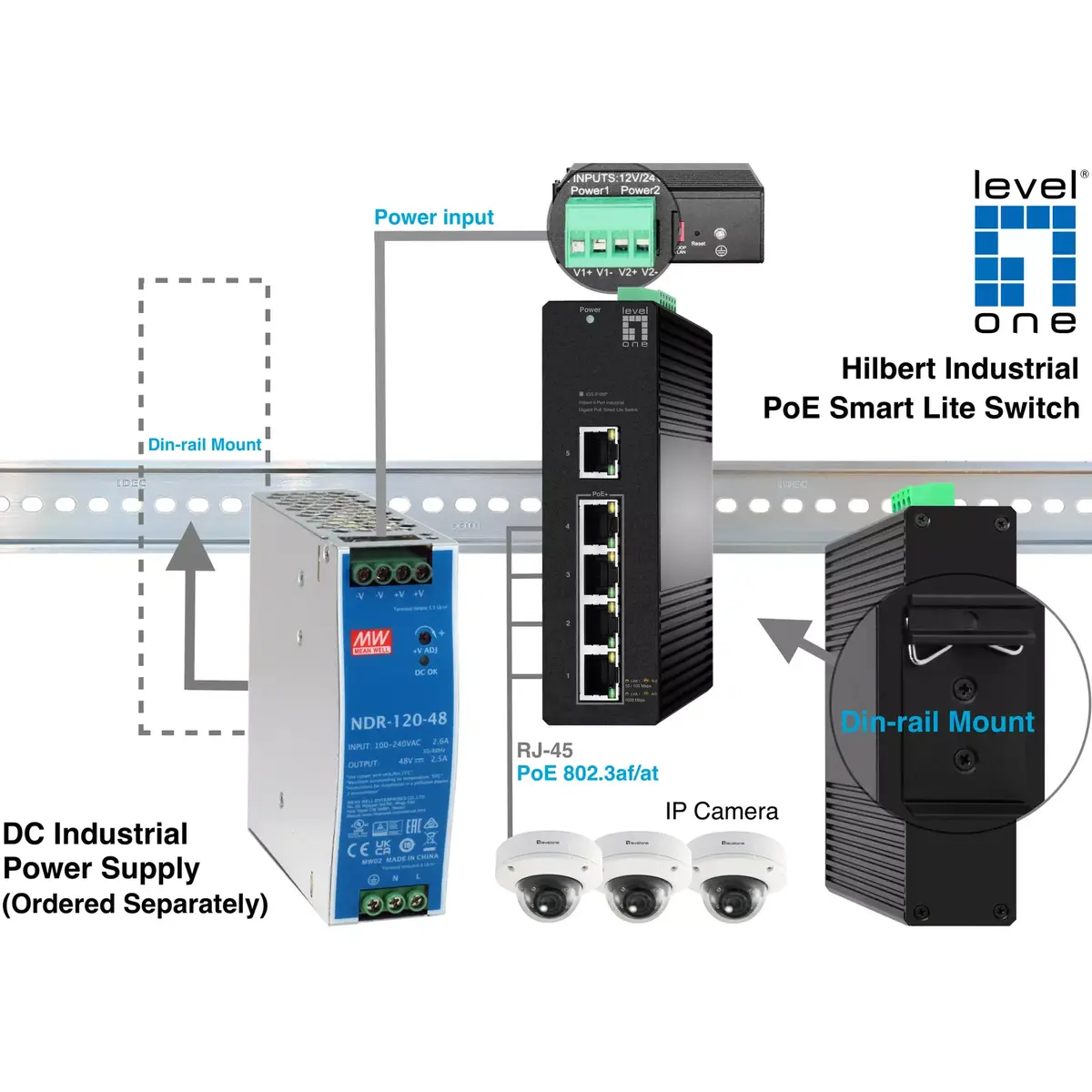

Managed Switch LevelOne Hilbert 5-Port Industrial Gigabit PoE Smart Lite Switch Photo 4

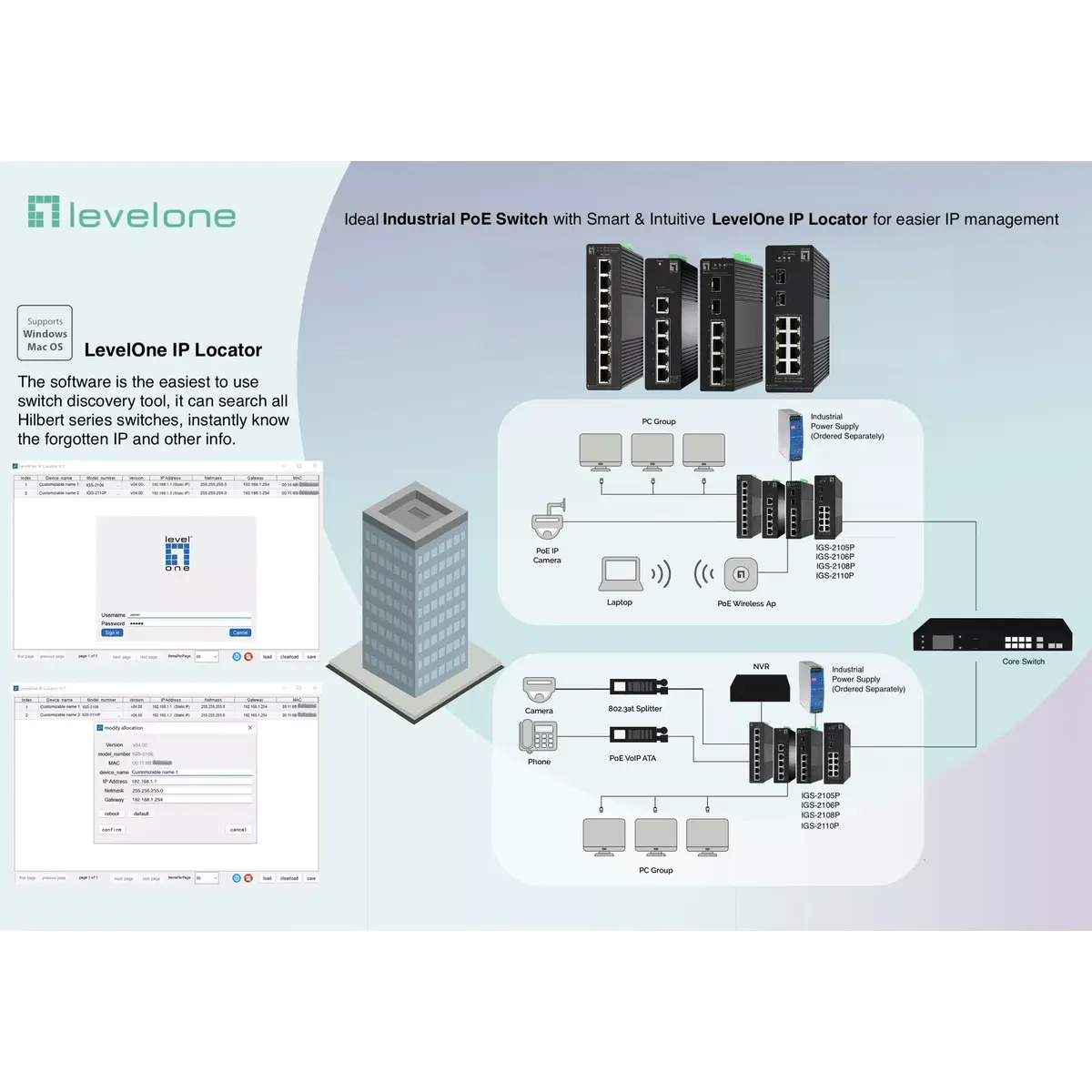

Managed Switch LevelOne Hilbert 5-Port Industrial Gigabit PoE Smart Lite Switch Photo 5

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The LevelOne Hilbert 5-Port Industrial Gigabit PoE Smart Lite Switch features 4 PoE outputs with 802.3at/af support, ensuring efficient power delivery. With 5 Gigabit Ethernet ports, full duplex capability, and a switching capacity of 10 Gbit/s, it is ideal for industrial applications. The switch supports various networking standards and has a MAC address table of 2000 entries. Its DC input voltage ranges from 44 to 57 V, making it a reliable choice for demanding environments.

Available at price 119.49 €: 27 pcs.

Total available for order: 83 pcs.

Warranty: 2 Years

SKU: 10965671

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

26.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

26.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

01.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.51 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

01.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

pay in 3 equal parts

today

0 €

afterward

3 mth. х 39.83 €

overpayment

0 €

All payment Methods Hide details

All payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment

36 months installment: from 3.32 euros per month

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The LevelOne Hilbert IGS-2105P is a 5‑port industrial Gigabit PoE Smart Lite managed switch designed for reliable Ethernet and power delivery in demanding environments. It provides five 10/100/1000 Mbps RJ45 ports, four of which supply PoE+ (802.3at/af) to power devices such as IP cameras and access points. The switch offers a 10 Gbit/s switching capacity, a 2000‑entry MAC address table and supports common Ethernet standards for industrial deployments. Its DIN‑rail mountable metal housing and clear status LEDs make it suitable for control cabinets and other industrial installations.

Advantages

The IGS-2105P combines PoE+ support on four ports with full Gigabit connectivity on all five ports, enabling simultaneous data and power delivery over copper cabling. Managed features and broad protocol support (including IEEE 802.1Q VLANs and IEEE 802.3x flow control) allow basic network segmentation and traffic control while keeping configuration and maintenance straightforward. The device accepts a wide DC input range (44–57 V) and is built for DIN‑rail mounting, providing environmental flexibility for industrial sites.

Suitable for (tasks / use cases)

Powering and connecting PoE cameras and IP surveillance systems
Supplying PoE to wireless access points and VoIP phones in industrial sites
Edge switching in factory automation and transportation cabinets
Small managed networks requiring VLAN and flow control features

Key specifications

Model: LevelOne IGS-2105P
Ports: 5 × RJ45 (10/100/1000 Mbps), 4 PoE+ ports (802.3at/af)
Switching capacity: 10 Gbit/s
MAC address table: 2000 entries
Networking standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3af, 802.3at, 802.3az, 802.1D, 802.1Q, 802.1w
DC input voltage: 44–57 V
Mounting: DIN‑rail
Weight: 0.45 kg

How to use

Install the switch on a DIN‑rail inside the control cabinet or on a suitable industrial rack. Connect a compatible DC power source within the specified 44–57 V range. Attach network devices to the RJ45 ports; PoE devices should be connected to the four PoE+ ports to receive power and data. Use the LevelOne IP Locator software to discover the switch on the network and access management settings from a Windows or macOS system for VLAN, port configuration and status monitoring.

Usage recommendations

For reliable PoE operation, ensure the total PoE power budget of connected devices does not exceed the switch’s available power. Place the switch in a well‑ventilated, vibration‑protected area and use appropriate surge protection in environments with unstable power. Regularly update firmware via the manufacturer’s tools and use the IP Locator to find device IPs when managing multiple Hilbert series switches.

Specifications

Basic switching RJ-45 Ethernet ports type:: Gigabit Ethernet (10/100/1000)
Switch type:: Managed
Weight:: 0.45 kg
Basic switching RJ-45 Ethernet ports quantity:: 5
10G support:: No
Networking standards:: IEEE 802.3az, IEEE 802.3at, IEEE 802.3af, IEEE 802.3ab, IEEE 802.3, IEEE 802.1w, IEEE 802.1Q, IEEE 802.1D, IEEE 802.3u, IEEE 802.3x

All features

Packaging data

Package weight:: 680 g
Package depth:: 135 mm
Package height:: 60 mm
Package width:: 191 mm
Package type:: Box
Terminal block included:: Yes
DIN rail included:: Yes

Ports & interfaces

Gigabit Ethernet (copper) ports quantity:: 5
Basic switching RJ-45 Ethernet ports type:: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity:: 5
Uplink ports quantity:: 1

Management features

Switch layer:: L2
Quality of Service (QoS) support:: Yes
Web-based management:: Yes
Switch type:: Managed

Sustainability

Sustainability compliance:: Yes
Sustainability certificates:: CE, UKCA, RoHS, Federal Communications Commission (FCC)

Packaging content

Quick start guide:: Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE):: Yes
Power over Ethernet plus (PoE+) ports quantity:: 4
Total Power over Ethernet (PoE) budget:: 60 W

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.: 68 W
Power source:: DC/PoE
Redundant power supply (RPS) support:: Yes
Surge protection voltage:: 4 kV
Surge protection:: Yes
DC input voltage:: 44 - 57
Power supply included:: No

Performance

Mean time between failures (MTBF):: 43800 h
Flash memory:: 2 MB
Fanless:: Yes

Design

LED indicators:: Power, Link, Activity
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.: IP30
Redundant fans support:: Yes
DIN rail mounting:: Yes

Multicast features

Multicast support:: Yes

Security

IGMP snooping:: Yes
Queue scheduling algorithms:: Priority queuing (PQ)

Logistics data

Country of origin:: China
Master (outer) case height:: 350 mm
Master (outer) case width:: 480 mm
Master (outer) case gross weight:: 24000 g
Pallet gross height:: 1544 mm
Master (outer) case length:: 395 mm
Products per master (outer) case:: 34 pc(s)
Harmonized System (HS) code:: 8517620090

Operational conditions

Operating relative humidity (H-H):: 10 - 90
Storage temperature (T-T):: -40 - 85
Operating temperature (T-T):: -40 - 70
Storage relative humidity (H-H):: 5 - 95
Heat dissipation:: 23.88 BTU/h

Data transmission

MAC address table:: 2000 entries
Switching capacity:: 10 Gbit/s
Jumbo frames support:: Yes
Forwarding rate:: 7.44 Mpps
Packet buffer memory:: 1.5 MB
Jumbo frames:: 9000

Technical details

Pallet gross width:: 1200 mm
Pallet gross length:: 800 mm
Layers per pallet (air):: 16 pc(s)

Weight & dimensions

Weight:: 0.45 kg
Height:: 38.5 mm
Width:: 136 mm
Depth:: 108 mm

Network

Full duplex:: Yes
Networking standards:: IEEE 802.3az, IEEE 802.3at, IEEE 802.3af, IEEE 802.3ab, IEEE 802.3, IEEE 802.1w, IEEE 802.1Q, IEEE 802.1D, IEEE 802.3u, IEEE 802.3x
Flow control support:: Yes
Port mirroring:: Yes
Link aggregation:: Yes
Broadcast storm control:: Yes
Rate limiting:: Yes
Auto MDI/MDI-X:: Yes
Number of VLANs:: 32
Spanning tree protocol:: Yes
VLAN support:: Yes
10G support:: No
Copper ethernet cabling technology:: 1000BASE-T, 100BASE-TX, 10BASE-T
Auto-negotiation:: Yes
MAC address auto-learning supported:: Yes
MAC address auto-aging supported:: Yes
Virtual LAN features:: Port-based VLAN
Half duplex:: Yes
