Nominal attenuation:
-
300kHz-825MHz <5dB 825MHz-2.475GHz <5dB 2.475GHz-4.125GHz <12dB 4.125GHz-5.1GHz <20dB
-
Cable type:
Type of cable e.g. electicity cable, optical cable.
-
Round cable
-
Colour depth:
-
8 bit
-
Colour sampling:
-
4:4:4
-
Bend radius (min):
-
48 mm
-

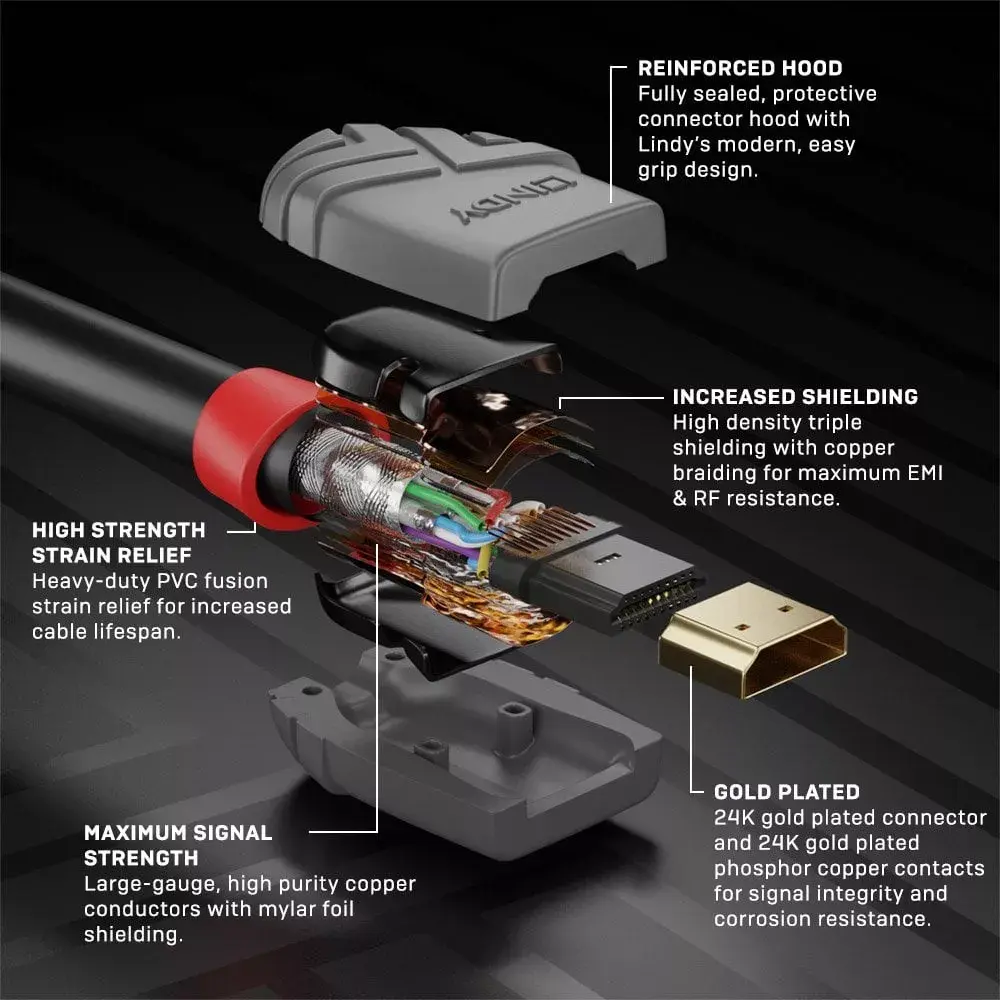

Shield material:
-
Copper
-
Cable jacket material:
-
Polyvinyl chloride (PVC)
-
Plug and Play:
Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.
-
Yes
-
Connector material:
-
Gold
-
Contact material:
-
Phosphor copper
-
Data transfer rate:
Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.
-
18 Gbit/s
-
AWG wire size:
-
28
-
Connector housing material:
-
Polyvinyl chloride (PVC)
-
Cable material:
The material e.g. copper, steel from which the cable is made.
-
Copper
-
HDMI Ethernet channel:
-
Yes
-
Supported video modes:
The video modes that can be displayed by the device.
-
2160p
-
Supported graphics resolutions:
The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.
-
4096 x 2160
-
Product colour:
The colour e.g. red, blue, green, black, white.
-
Black
-

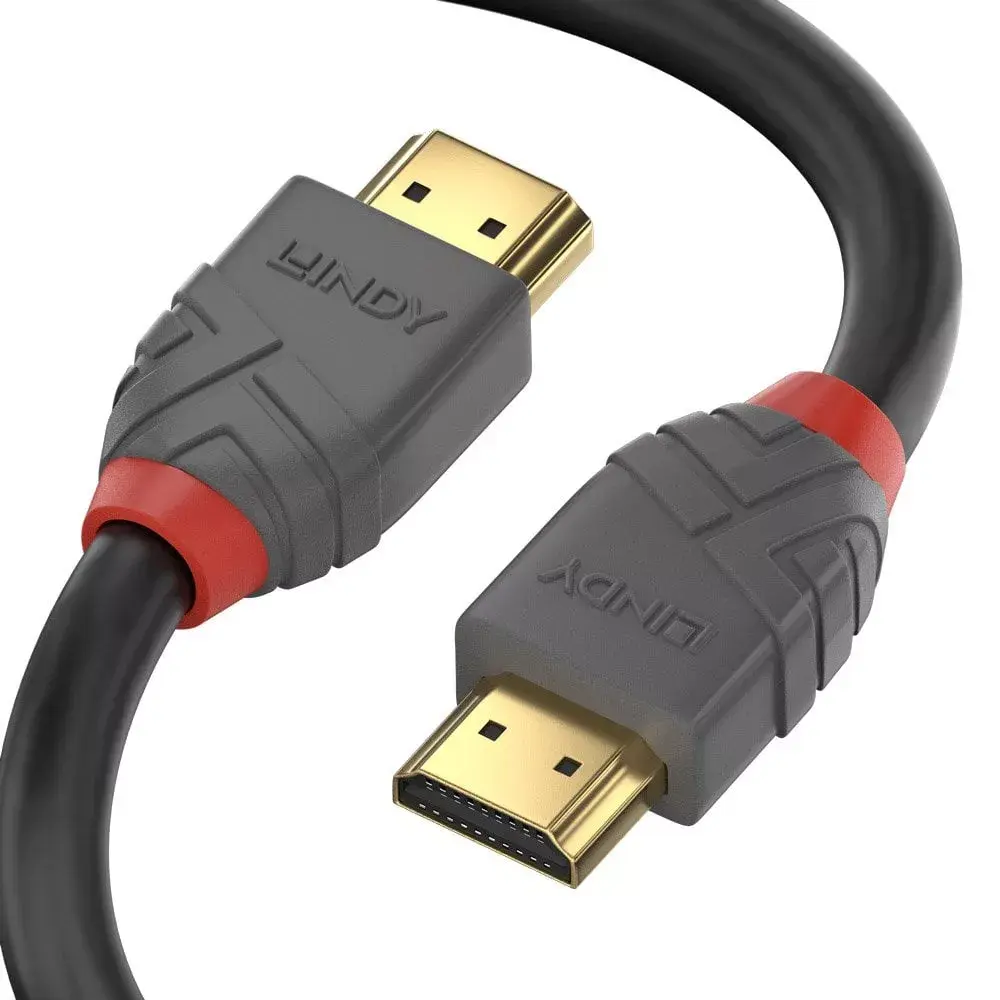

HDMI cable type:
-
High Speed HDMI cable with Ethernet
-
Connector 2 form factor:
-
Straight
-
Connector 1 form factor:
-
Straight
-
Connector contacts plating:
What the connector contacts are covered with (layer on top).
-
Gold
-
Connector 1 gender:
The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.
-
Male
-

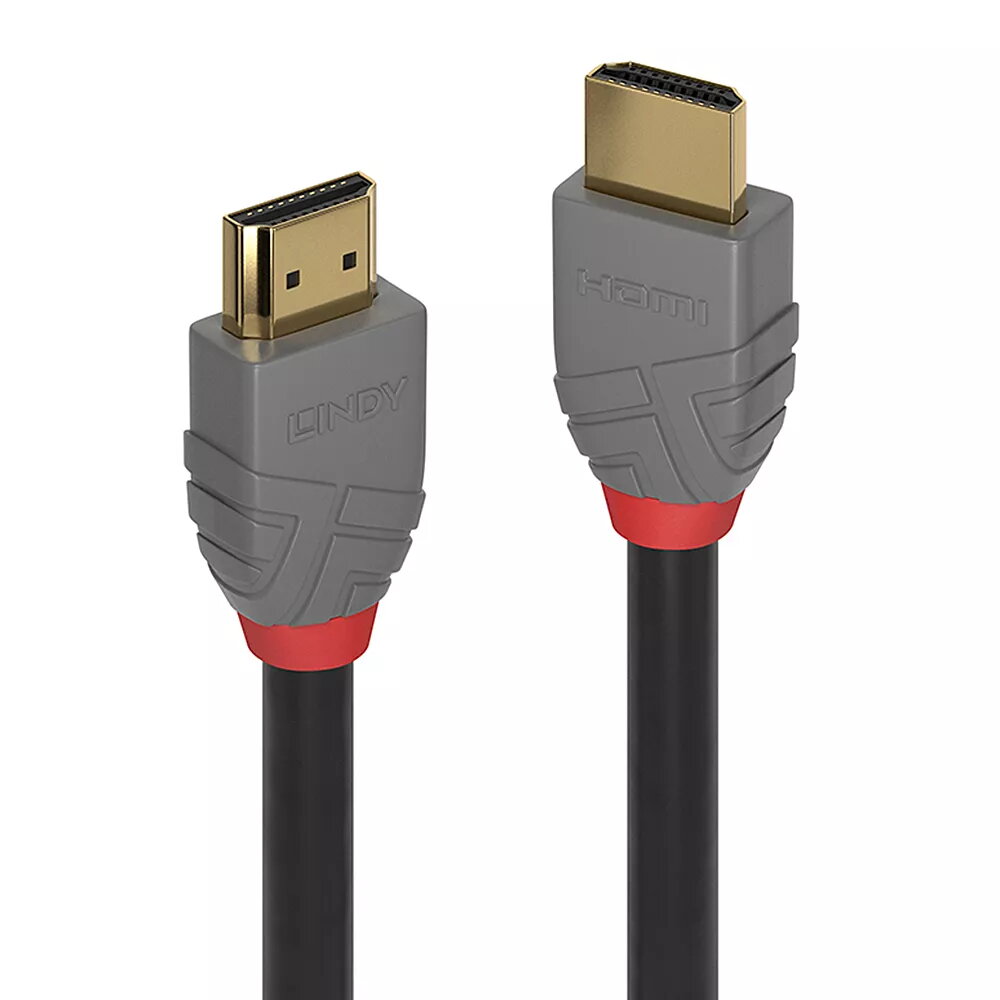

Connector 1:
This is the first connector in the device.
-
HDMI Type A (Standard)
-

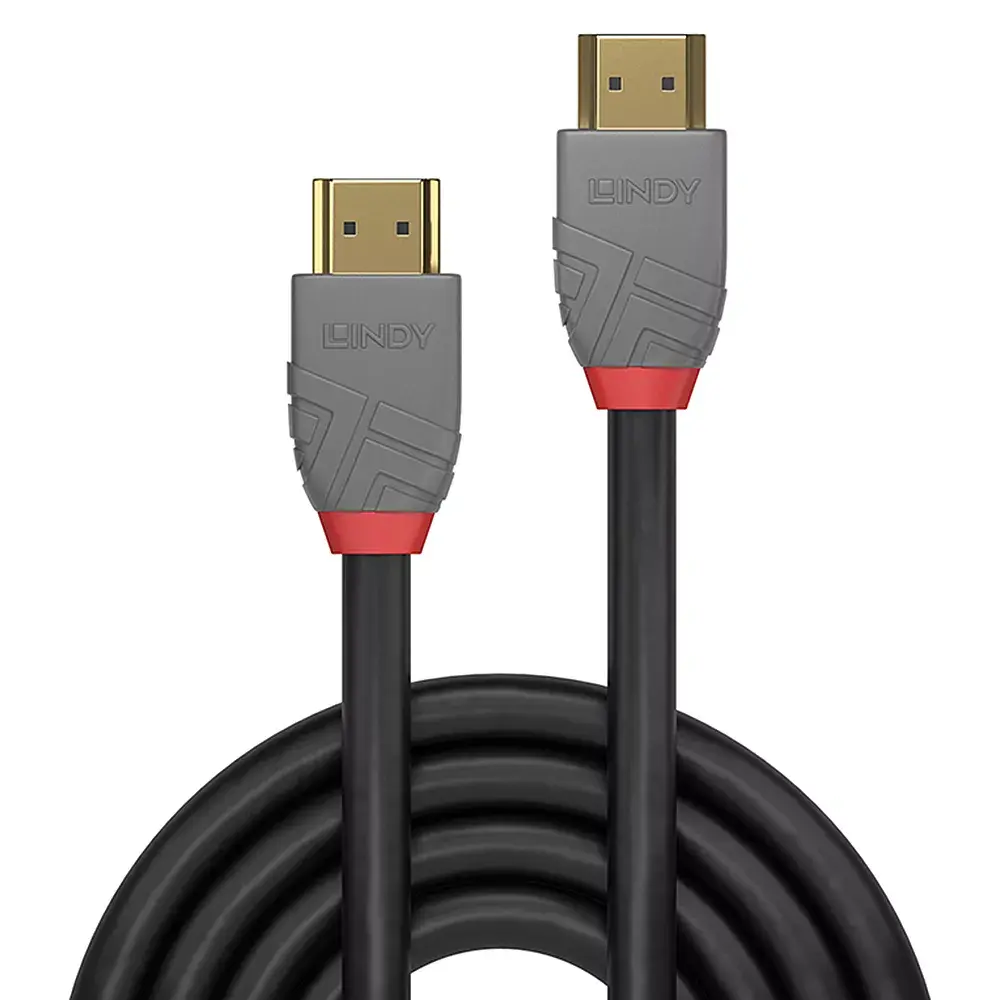

Cable length:
How long the cable is.
-
5 m
-
Connector 2 gender:
The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.
-
Male
-
Connector 2:
This is the second connector in the device.
-
HDMI Type A (Standard)
