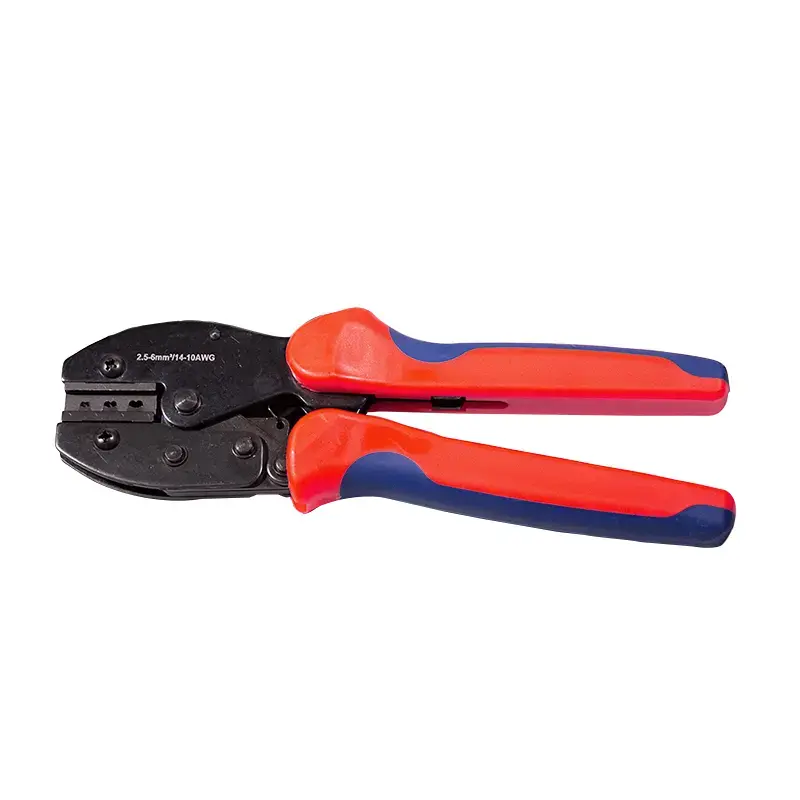

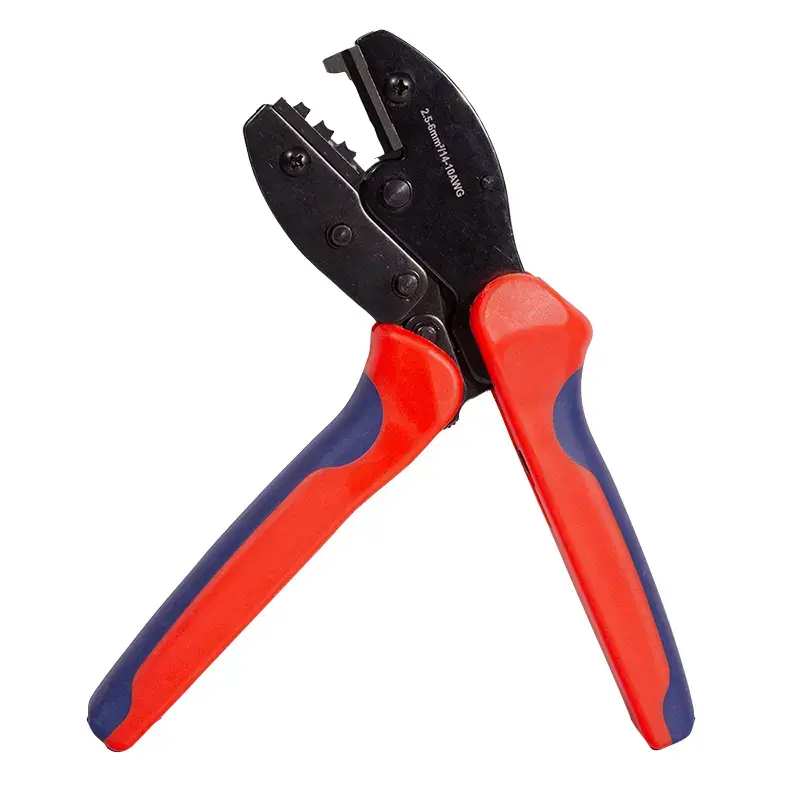

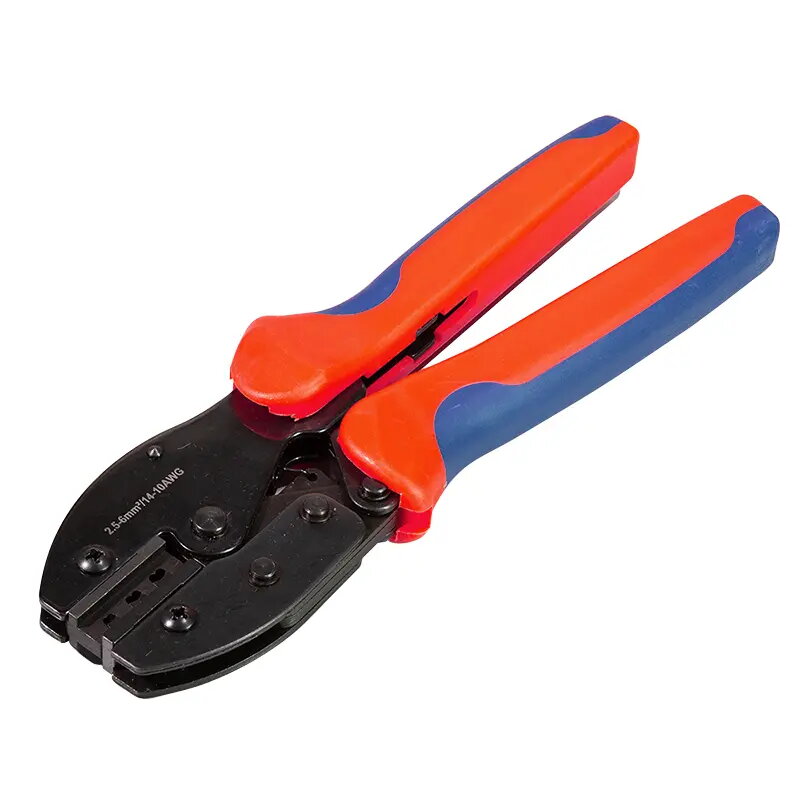

LogiLink PHT0101 Crimping Tool for Photovoltaic Connectors

The LogiLink PHT0101 is a professional-grade crimping tool engineered specifically for the reliable installation of photovoltaic connectors. This robust hand tool is designed to facilitate the creation of secure, high-quality electrical connections essential for solar power systems. By ensuring precise crimping, it helps maintain optimal electrical conductivity and long-term durability for solar panel cabling, even when exposed to demanding environmental conditions.

Advantages

This tool offers exceptional reliability through its integrated ratchet mechanism, which features an unlockable lock to ensure a complete and consistent crimping cycle every time. The construction utilizes high-quality metal, providing the necessary strength and longevity for frequent professional use. Furthermore, the ergonomic design includes non-slip plastic handles, which significantly improve user comfort and safety by providing a firm, stable grip during operation, thereby reducing hand fatigue during repetitive tasks.

Suitable for

• Professional solar power system installations
• DIY solar panel cable assembly
• Crimping PV cables with cross-sections of 2.5 mm², 4.0 mm², and 6.0 mm²
• Maintenance and repair of photovoltaic connection cables

This tool may not be suitable for crimping non-photovoltaic connectors or cables that fall outside the specified cross-section range of 2.5 to 6.0 mm². It is not intended for heavy-duty industrial cable cutting or for use with electrical connectors that require different crimping profiles or die shapes.

Key specifications

• Compatible cable sizes: 2.5 mm², 4.0 mm², 6.0 mm²
• Mechanism: Ratchet system with unlockable lock
• Material: High-quality metal
• Handle material: Non-slip plastic
• Dimensions: 217 mm length, 72 mm width, 28 mm height

To use the tool, first strip the insulation from your photovoltaic cable to the appropriate length. Insert the contact pin into the corresponding slot on the crimping die. Place the stripped wire into the contact pin and squeeze the handles firmly until the ratchet mechanism releases, indicating that the crimping cycle is complete. Ensure the cable is held securely throughout the process to maintain connection integrity.

What to consider before purchase

• Verify that your specific PV connector type is compatible with this crimping profile
• Ensure your cable cross-section is within the supported 2.5–6.0 mm² range
• Assess the frequency of use to ensure this manual tool meets your project requirements

For best results, always inspect the crimped connection visually to ensure the wire strands are fully captured and the contact is securely fastened before finalizing the installation.
