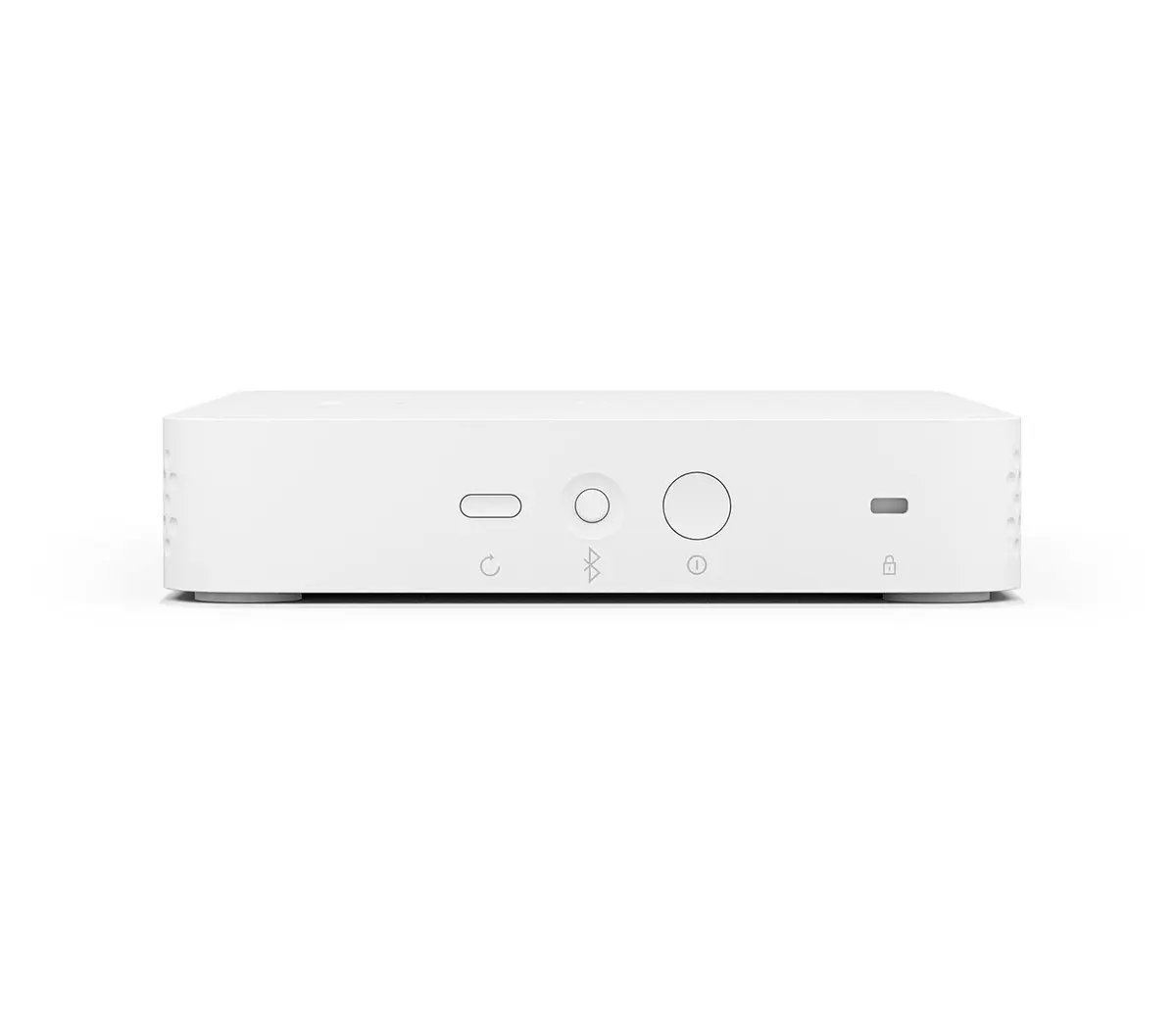

Video conferencing service management system Logitech RoomMate

Wi-Fi standards: The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Security algorithms: Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.

128-bit AES

Supported network protocols: Network protocols tested as compatible with this product e.g. FTP,HTML, POP.

IPv4, IPv6

Ethernet LAN: An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.

Yes

Remote control included: Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance.

Yes

Wi-Fi: Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.

Yes

HDMI ports quantity: The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.

3

Ethernet LAN data rates: The different speed levels of the Ethernet LAN connection.

10, 100, 1000

Power cable length:

1.5 m

Mounting kit:

Yes

AC input voltage: The voltage of the AC electricity that is inputted into the product.

100 - 240

DC input voltage:

19

Power plug type:

Type C

VESA mounting:

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:

3

HDMI input ports quantity:

1

HDMI output ports quantity:

2

Logistics data

Master (outer) case height:

244 mm

Master (outer) case width:

251 mm

Master (outer) case gross weight:

8378 g

Master (outer) case length:

369 mm

Harmonized System (HS) code:

85176990

Packaging content

Packaging content:

Logitech RoomMate Power supply AC cable Mounting plate Remote control User documentation

AC adapter included:

Yes

Quick start guide: Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.

Yes

Cables included:

DC, AC

Weight & dimensions

Package weight: Weight of the packaged product.

1974.5 g

Height: The measurement of the product from head to foot or from base to top.

34.5 mm

Package depth: The distance from the front to the back of the packaging.

360 mm

Package height: The distance from the top to the bottom of the packaging.

228 mm

Package width: The distance from one side of the packaging to the other.

60 mm

Depth: The distance from the front to the back of something.

211 mm

Width: The measurement or extent of something from side to side.

161 mm

Battery

Battery capacity: A measure of the charge stored by the battery. Determined by the mass of active material contained in the battery.

0.675 Wh

Battery capacity: A measure of the charge stored by the battery. Determined by the mass of active material contained in the battery.

220 mAh

Battery technology: The type of battery in the device, e.g. nickel–cadmium (NiCd).

Lithium

Operational conditions

Operating relative humidity (H-H):

10 - 95

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.

-40 - 70

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 40

Ports & interfaces

Cable lock slot: Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.

Yes

USB connector type: The type of USB connector/port that this product has.

USB Type-A

Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1

Cable lock slot type:

Kensington

Power

Number of batteries supported: The number of batteries that can be used with the product.

2

Current:

4.74 A

Power source type: What the power source is.

AC

Features

Product type: The sub-category of the product.

Video conferencing service management system

Product colour: The colour e.g. red, blue, green, black, white.

White
