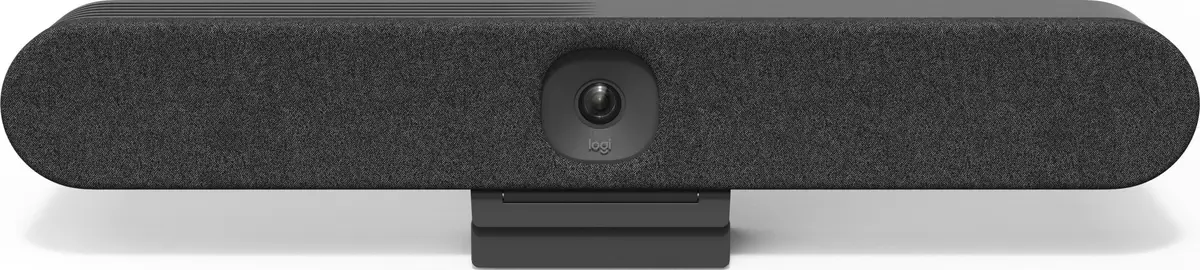

Group video conferencing system Logitech Rally Bar Huddle Graphite

Digital zoom:

4 x

Wi-Fi standards:

802.11b, 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Security algorithms:

128-bit AES

Zoom capability:

Yes

Supported network protocols:

IPv4, IPv6 Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file

Ethernet LAN:

Yes

Speaker power:

8 W

Tilt angle range:

-32 - 32

Built-in speaker(s):

Yes

Pan range:

-48 - 48

Line-out impedance:

4 Ω

Wi-Fi:

Yes

Ethernet LAN data rates:

10, 100, 1000

Microphone pick-up range:

7 m

PTZ control:

Yes

Output voltage Total Harmonic Distortion (THD):

2 %

Camera type:

Single camera

Power cable length:

2.5 m

AC input voltage:

100-240

Driver diameter:

55 mm

Horizontal field of view:

113 °

Vertical field of view:

80 °

Diagonal field of view:

120 °

Camera cable length (max):

2.2 m

HD type:

4K Ultra HD

Product type:

Group video conferencing system

Sample rates:

0 - 48

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

1

DC output voltage:

19 V

Privacy camera:

Yes

Privacy type:

Privacy shutter

Telepresence:

No

HDMI cable length:

2 m

HDMI input ports quantity:

1

HDMI output ports quantity:

1

Features

Product colour:

Graphite

Echo cancellation:

Yes

Windows operating systems supported:

Windows 10, Windows 11

Sound pressure level (max):

83 dB

Audio beamforming:

Yes

Microphone

Microphone frequency:

90 - 16000

Microphone sensitivity:

-36 dB

Number of microphones:

6

Ports & interfaces

Bluetooth:

Yes

Power

Current:

2.1 A

Power source type:

AC

Weight & dimensions

Weight:

1.8 kg

Height:

78.9 mm

Width:

549.6 mm

Depth:

76 mm

Operational conditions

Operating relative humidity (H-H):

10 - 90

Storage temperature (T-T):

-25 - 70

Operating temperature (T-T):

0 - 40

Packaging content

AC adapter included:

Yes

Cables included:

USB Type-A to USB Type-C, HDMI, DC, AC

Packaging content:

Rally Bar Huddle Multi-Mount Power supply AC power cord HDMI cable USB cable
