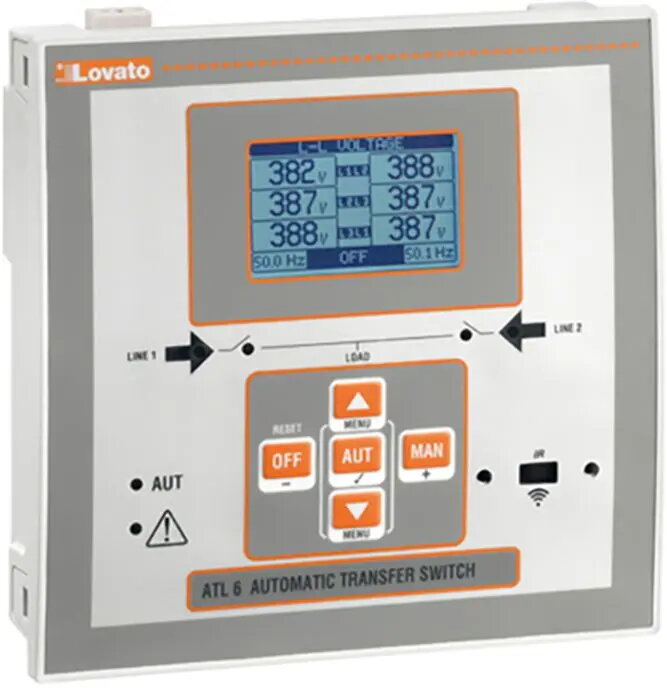

Lovato Electric ATL610 Automatic Transfer Switch Controller 12-24V DC / 100-240V AC with EXP Module Expansion Support

The Lovato Electric ATL610 is a high-performance automatic transfer switch controller engineered for precise power management in critical electrical systems. This device ensures reliable monitoring and switching between two power sources, such as mains and generator sets, to maintain continuous power supply. Housed in a standard 144x144mm enclosure, it is designed for panel mounting and offers versatile power supply compatibility, accepting both 12-24V DC and 100-240V AC inputs. The controller is built to support system scalability through the integration of EXP series expansion modules, making it a robust solution for complex power distribution requirements.

Advantages

The primary benefit of the ATL610 controller is its exceptional flexibility and ease of integration into existing electrical infrastructures. By supporting a wide range of supply voltages, it eliminates the need for multiple controller variants in diverse installation environments. The modular design, facilitated by EXP expansion support, allows users to customize the unit's functionality to meet specific project needs without replacing the core controller. Its intuitive interface and robust construction ensure long-term operational stability and simplified maintenance for facility managers and electrical engineers.

Suitable for

• Automatic transfer switching between utility mains and standby generators
• Industrial power distribution systems
• Commercial building backup power management
• Critical infrastructure requiring seamless source transition

This controller may not be suitable for applications requiring high-voltage direct switching without external contactors or circuit breakers, as the unit acts as a control interface rather than a power switching device. It is also not intended for use in environments exceeding the specified operating temperature or humidity ranges defined for standard industrial electronic equipment.

Key specifications

• Supply voltage range: 12-24V DC or 100-240V AC
• Housing dimensions: 144x144mm
• Expansion capability: Supports EXP series modules
• Mounting type: Panel mount
• Application: Automatic transfer switch control

To use the Lovato Electric ATL610, mount the unit securely into a standard 144x144mm panel cutout. Connect the power supply lines and the voltage sensing inputs from both power sources according to the wiring diagram. Configure the switching parameters, such as voltage thresholds and delay times, using the front-panel interface. If additional inputs, outputs, or communication protocols are required, install the appropriate EXP expansion modules into the designated slots on the rear of the device before finalizing the installation.

What to consider before purchase

• Verify that the control voltage matches your system requirements
• Ensure the panel space is sufficient for the 144x144mm dimensions
• Check if specific EXP modules are needed for your communication or I/O requirements
• Confirm compatibility with your existing contactors or motorized circuit breakers

For optimal performance and safety, ensure all electrical connections are tightened to the manufacturer's torque specifications and that the device is protected by appropriate fuses. Regularly test the automatic transfer sequence during scheduled maintenance to verify system readiness.
