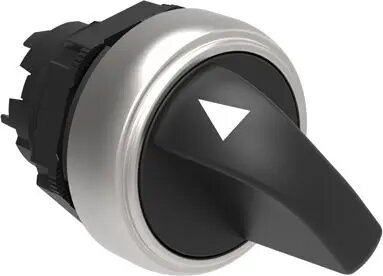

LOVATO Electric LPCS121 2-Position Selector Switch Actuator, Black, Spring Return

The LOVATO Electric LPCS121 is a high-quality 2-position selector switch actuator designed for professional industrial control panels. This robust component features a sleek black finish and is engineered for reliable manual operation of electrical circuits. With its integrated spring return mechanism, the switch automatically returns to its original position, ensuring precise and repeatable control in demanding automation environments.

Advantages

This selector switch actuator stands out due to its durable construction and ergonomic design, which facilitates seamless integration into standard control systems. The spring return functionality enhances operational safety by preventing the switch from being left in an unintended state. Its high-grade materials ensure long-term performance even in environments subject to frequent mechanical use, making it a dependable choice for industrial automation tasks.

Suitable for

• Industrial control panels and machinery interfaces
• Manual override systems for automated processes
• Selection of operating modes in electrical equipment
• Control of motor starters and circuit breakers

When it may not be suitable

This actuator is not suitable for applications requiring a maintained or latched position, as the spring return mechanism will always revert the switch to its default state. It is also not intended for use in environments with extreme chemical exposure or high-pressure washdown conditions unless housed in an appropriately rated enclosure.

Key specifications

• Positions: 2-position
• Operation: Spring return
• Color: Black
• Application: Industrial control panels
• Compatibility: Standard 22mm mounting holes

How to use

To install the LOVATO Electric LPCS121, mount the actuator into a standard 22mm hole on your control panel enclosure. Secure the locking nut firmly to ensure the unit is stable. Once installed, the actuator can be connected to a compatible contact block to complete the electrical circuit. To operate, simply turn the selector knob to the desired position; the spring return mechanism will automatically move the knob back to the neutral position once released.

What to consider before purchase

• Verify that your control panel has a standard 22mm mounting diameter.
• Ensure that a spring return (momentary) action is required for your specific control logic.
• Check if you need additional contact blocks to complete your circuit configuration.

Usage recommendations

Regularly inspect the actuator for any signs of mechanical wear or debris accumulation to ensure smooth rotation. Ensure that the contact blocks are correctly aligned and securely fastened to the actuator base during installation to maintain optimal electrical connectivity.
