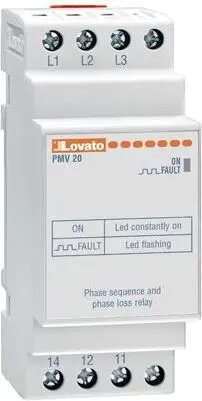

LOVATO Electric PMV20A575 Phase Sequence and Loss Monitoring Relay 1P 208-575V AC

The LOVATO Electric PMV20A575 is a precision-engineered phase sequence and phase loss monitoring relay designed to ensure the stability and safety of industrial electrical systems. Operating across a wide voltage range of 208-575V AC, this device provides continuous monitoring of three-phase power supplies to detect critical faults such as phase loss or incorrect phase sequence. By identifying these issues in real-time, the relay helps prevent damage to motors, compressors, and other sensitive electrical equipment, thereby reducing downtime and maintenance costs in automated environments.

Advantages

This monitoring relay offers exceptional reliability through its robust design and high-precision sensing capabilities. Its ability to handle a broad voltage spectrum makes it a versatile solution for various international power standards, simplifying inventory management for facility maintenance. The device is built to withstand demanding industrial conditions, ensuring consistent performance and long-term operational integrity. By integrating this relay into a control circuit, users gain an essential layer of protection that automatically triggers a response when power quality deviates from safe parameters, effectively safeguarding expensive machinery from electrical irregularities.

Suitable for

• Industrial motor control centers
• HVAC system protection
• Automation and control panels
• Power distribution monitoring
• Compressor and pump protection

This relay may not be suitable for single-phase electrical systems, as it is specifically designed for three-phase monitoring applications. Additionally, it should not be used in environments where the operating voltage consistently falls outside the specified 208-575V AC range, as this could lead to inaccurate detection or device failure.

Key specifications

• Operating voltage range: 208-575V AC
• Monitoring functions: Phase sequence and phase loss
• Output configuration: 1P (single-pole)
• Application: Three-phase electrical systems
• Mounting: DIN rail compatible

To use the LOVATO Electric PMV20A575, mount the device onto a standard DIN rail within your control cabinet. Connect the three-phase power lines to the designated input terminals according to the wiring diagram provided with the unit. Ensure that the output contacts are integrated into the control circuit of your motor starter or PLC to allow the relay to interrupt power when a fault is detected. Once installed, verify that the status indicators reflect the correct phase sequence and that the relay is energized under normal operating conditions.

What to consider before purchase

• Verify that your system voltage is within the 208-575V AC range.
• Confirm that your application requires monitoring for both phase loss and sequence.
• Ensure there is sufficient space on the DIN rail for installation.
• Check compatibility with your existing control circuit voltage requirements.

Usage recommendations

Always ensure that the power supply is disconnected before performing any wiring or maintenance on the relay. Regularly test the device to confirm that it correctly triggers a shutdown during simulated phase loss conditions to maintain optimal safety standards.
