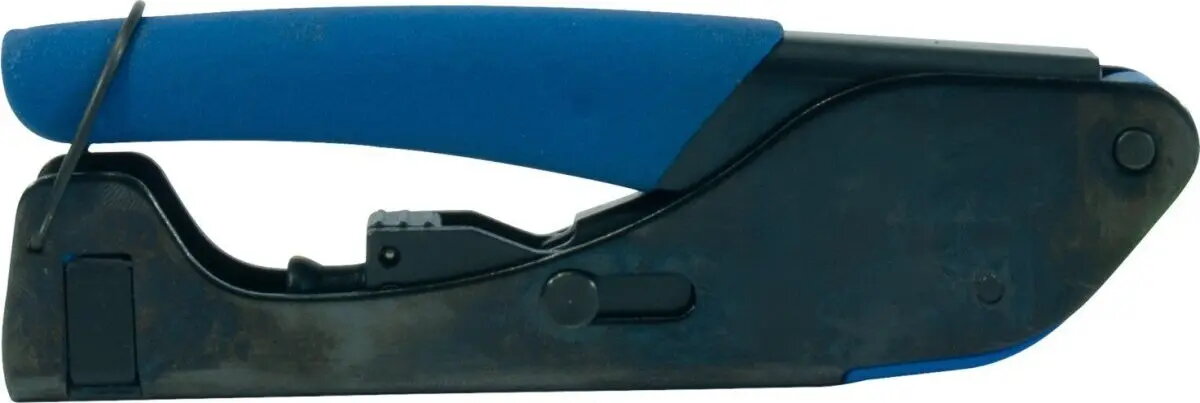

Compression F-connector Crimping Tool Master model 216301 for F-type compression connectors

The Master Compression F-connector Crimping Tool model 216301 is a handheld tool designed for installing compression F-type coaxial connectors. It performs mechanical compression to create secure RF cable terminations on coaxial cables used in TV, satellite and broadband installations. The tool is intended to provide consistent connector seating and repeatable crimping performance for both field technicians and competent DIY users working with F-type compression connectors.

Advantages

The crimping pliers are engineered to deliver uniform compression force, ensuring reliable electrical contact and mechanical retention of F-type connectors without deforming the connector body. Its compact, ergonomic design supports single-handed operation and reduces hand fatigue during repeated use. The tool's construction focuses on durability and consistent alignment of the compression die, which helps achieve repeatable results on multiple cable runs.

Suitable for

• Installing compression F-type connectors on coaxial cables for TV and satellite systems
• Broadband and cable internet coax terminations
• On-site field service and residential or small commercial installations
• Experienced DIYers performing home antenna or cable repairs

Key specifications

• Tool type: hand-operated compression crimping pliers for F-type connectors
• Compatibility: F-type compression coaxial connectors and standard RG coax cables
• Operation: mechanical compression die designed for uniform force application
• Ergonomics: compact profile with grips for improved handling during repeated use
• Build: metal working components with wear-resistant contact surfaces

How to use

Prepare the coaxial cable by stripping the jacket, dielectric and exposing the centre conductor to match the connector manufacturer's recommended dimensions. Slide the compression F-type connector onto the prepared cable end until it seats firmly. Position the connector into the tool's compression die and apply steady pressure until the die completes the compression cycle. Verify that the connector is securely seated and that there is no looseness or visible deformation beyond the compressed sleeve.

Usage recommendations

Use the tool with connectors and cable types that match each other in size and specification. Periodically inspect the compression die for wear and ensure the tool remains clean of debris to maintain consistent crimps. For repeated professional use, follow routine maintenance and check alignment before each job to reduce the risk of poor terminations.
