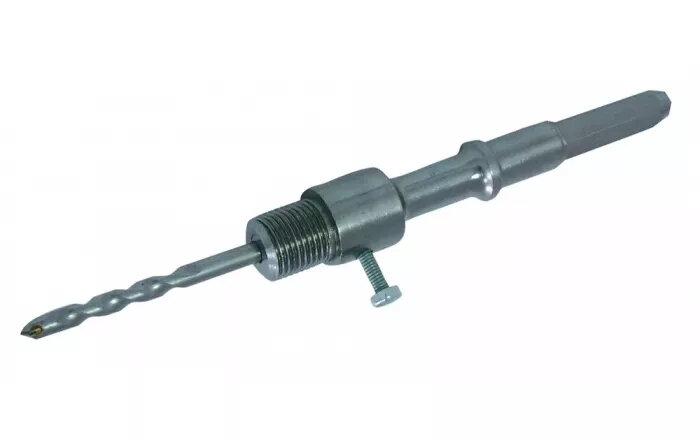

Drill Holder MEGA 5829825 hex shank adapter for drill bits

Hex 13 mm adapter for concrete core drill bits with a 13 mm hex shank. Total length 160 mm with M22 thread and an 8 mm pilot drill diameter, suitable for use with compatible concrete core drilling systems and holders.

Advantages

The MEGA 5829825 adapter provides a secure hex connection for 13 mm shank core drill bits, ensuring reliable torque transfer. Its 160 mm length offers convenient reach for deeper or recessed drilling, while the M22 thread ensures compatibility with standard core bit fittings. The integrated 8 mm pilot drill diameter helps guide the core bit during initial penetration.

Suitable for

• Mounting 13 mm hex-shank concrete core drill bits
• Drilling into concrete, masonry and similar construction materials when used with appropriate core bits
• Use with drills and holders that accept M22-threaded core bits

Key specifications

• Brand: MEGA
• Model / MPN: 5829825
• Shank type: 13 mm hex
• Length: 160 mm
• Thread: M22
• Pilot drill diameter: 8 mm
• Category: Drill Bits / Adapter for core bits
• EAN: 5903755829825

How to use

Attach the adapter to the drill or holder by inserting the 13 mm hex shank into the chuck or quick-change system and secure it. Screw the core bit onto the M22 thread until firmly seated. Ensure the 8 mm pilot drill is aligned before starting the drill. Operate the drill at appropriate speed and with steady pressure suitable for concrete core drilling, following safety guidelines and using proper cooling or flushing if required for the specific core bit.

Usage recommendations

Check that the drill, holder and core bit are compatible with the adapter's 13 mm hex shank and M22 thread. Use appropriate personal protective equipment, maintain steady feed, and apply water cooling or dust extraction when drilling into concrete to prolong tool life and improve cutting performance.
