Mercusys MA14H Wireless Network Card

Name: Mercusys MA14H Wireless Network Card MA14H
Brand: MERCUSYS
SKU: 11575027
Price: 9.99 EUR
Availability: OutOfStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

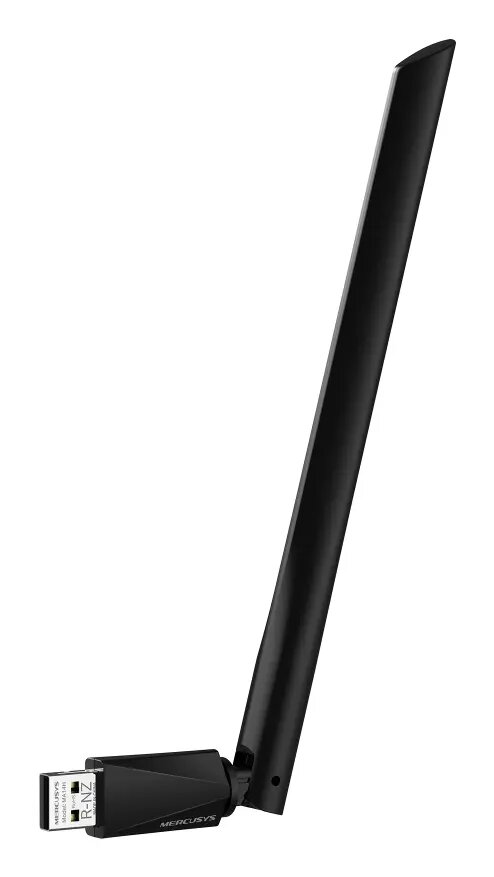

Mercusys MA14H Wireless Network Card USB Wi-Fi 6 287 Mbit/s Single-Band 2.4 GHz Black

Mercusys MA14H Wireless Network Card Photo 1

Mercusys MA14H Wireless Network Card Photo 2

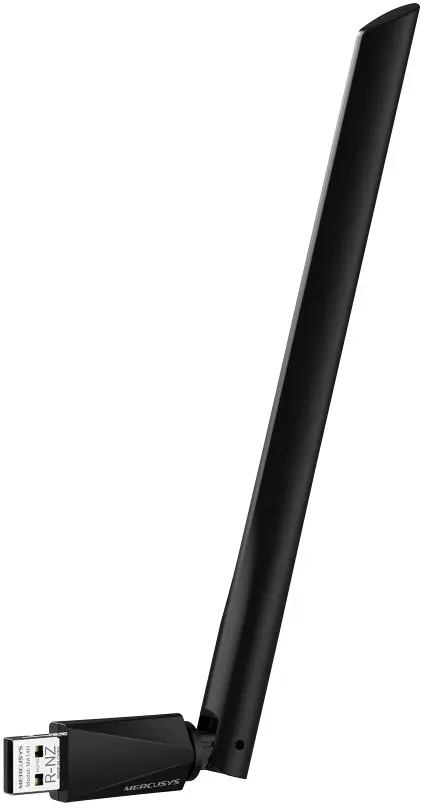

Mercusys MA14H Wireless Network Card Photo 3

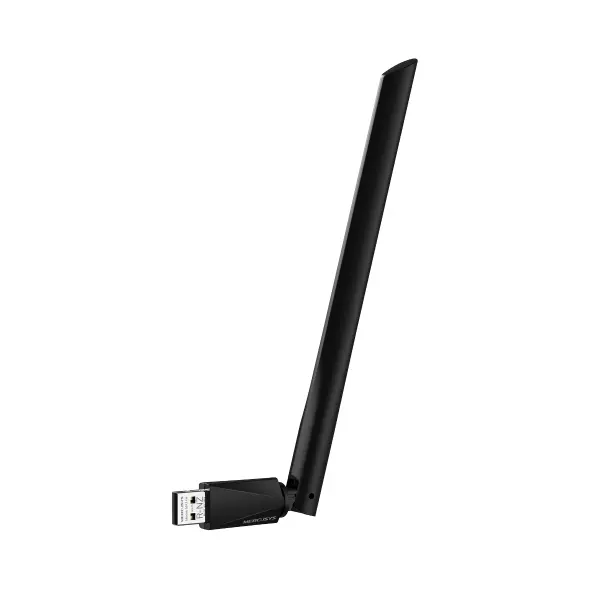

Mercusys MA14H Wireless Network Card Photo 4

Short description

The Mercusys MA14H is a wireless network card featuring a USB host interface and Wi-Fi 6 technology, delivering a maximum data transfer rate of 287 Mbit/s on a single 2.4 GHz band. Designed in a compact black form factor, it provides reliable wireless connectivity for desktop computers and laptops, supporting IEEE 802.11ax and backward-compatible networking standards for efficient internet access.

Warranty: 3 Years

SKU: 11575027

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Mercusys MA14H Wireless Network Card USB Wi-Fi 6 287 Mbit/s Single-Band 2.4 GHz Black is a compact and efficient networking solution designed to upgrade your desktop computer or laptop with modern Wi-Fi 6 capabilities. Utilizing a standard USB host interface, this wireless adapter provides reliable internet access and stable connections for daily tasks, web browsing, and streaming over the 2.4 GHz frequency band.

Advantages

This wireless network card integrates advanced Wi-Fi 6 technology, bringing faster data transfer rates and improved network efficiency compared to older adapter generations. Equipped with a high-performance, adjustable multi-directional antenna, it extends signal coverage and enhances directional precision to maintain a stable connection even at a distance. The pre-loaded internal driver simplifies the setup process, allowing for quick installation without the need for external optical discs or complicated downloads.

Suitable for

Upgrading older desktop computers and laptops with modern Wi-Fi 6 technology
Browsing the internet, checking emails, and handling daily office tasks
Streaming standard definition media and attending online meetings
Use in environments requiring compatibility with Windows and Linux operating systems

This device may not be suitable for high-bandwidth activities such as competitive online gaming or heavy 4K video streaming, as it operates exclusively on a single 2.4 GHz band with a maximum speed of 287 Mbit/s. It is also not designed for local network file transfers of massive data volumes where multi-gigabit speeds or dual-band 5 GHz and 6 GHz frequencies are strictly required.

Key specifications

Wireless connectivity technology
USB host interface
Maximum data transfer rate of 287 Mbit/s
Single-band 2.4 GHz frequency
Wi-Fi 6 (802.11ax) technology with backward compatibility
High-gain adjustable multi-directional antenna
Black product colour

To use the Mercusys MA14H, insert the adapter into an available USB port on your computer. For most supported operating systems, the pre-loaded internal driver will initiate a straightforward installation automatically. Once the setup is complete, select your wireless network from your operating system settings, enter the security key, and establish your connection.

What to consider before purchase

Verify that your computer has an available USB port
Check your operating system compatibility with Windows 11, 10, 7, or Linux Kernel 3.10 and later
Confirm that a single-band 2.4 GHz connection meets your network performance requirements

Usage recommendations: Adjust the multi-directional antenna position to find the optimal signal angle for your workspace. Keep the device free from physical obstructions to ensure maximum wireless stability and performance.

Specifications

Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.: Wireless
Interface: Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2.: WLAN
Host interface: Interface that enables a host controller to communicate with a driver.: USB
Maximum data transfer rate: The maximum speed with which data can be transmitted from one device to another.: 287 Mbit/s
Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.: IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Product colour: The colour e.g. red, blue, green, black, white.: Black

All features

Wi-Fi standards: The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.: Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11b
Component for: What this product is used as a part of (component for).: Laptop
Antenna design:: External

Ports & interfaces

Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.: Wireless
Interface: Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2.: WLAN
Host interface: Interface that enables a host controller to communicate with a driver.: USB
Internal: The product is built in.: No
USB version: Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one.: 2.0

Bandwidth

Maximum data transfer rate: The maximum speed with which data can be transmitted from one device to another.: 287 Mbit/s

Network

Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.: IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Wireless LAN features

Wi-Fi: Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.: Yes
Wi-Fi band: The frequency bands the product features.: Single-band (2.4 GHz)
Top Wi-Fi standard: Connection of this device is done via Wi-Fi in a high standard.: Wi-Fi 6 (802.11ax)

Antenna

Antenna:: Yes

Performance

Security algorithms: Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.: WPA2-PSK, WPA2, WPA-PSK, WPA
Windows operating systems supported: Windows vesions wich can be used with the device.: Windows 7, Windows 11, Windows 10
Linux operating systems supported: 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3): Linux Kernel 6.5, Linux Kernel 6.2, Linux Kernel 5.9, Linux Kernel 5.8, Linux Kernel 5.4, Linux Kernel 5.19, Linux Kernel 5.15, Linux Kernel 5.14, Linux Kernel 5.13, Linux Kernel 5.12, Linux Kernel 5.11, Kernel 4.6.4, Kernel 3.3, Kernel 3.17, Kernel 3.12, Linux Kernel 5.10

Design

Product colour: The colour e.g. red, blue, green, black, white.: Black

Weight & dimensions

Height: The measurement of the product from head to foot or from base to top.: 173.4 mm
Width: The measurement or extent of something from side to side.: 16.8 mm
Depth: The distance from the front to the back of something.: 57.8 mm

Power

USB powered: The device can be powered via a USB connection.: Yes

Packaging content

Quick installation guide:: Yes

Hide Show all

Instructions

mercusys-MA14H-11575027.pdf

Description

Instructions

mercusys-MA14H-11575027.pdf

Machine translation.

Show details Hide details

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Customer reviews

Show all reviews

Customer questions

FAQ

What payment options are available?

AiO.lv offers several payment methods: Bank transfer. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All MERCUSYS products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized MERCUSYS service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: connectivity technology, interface, host interface, maximum data transfer rate, networking standards, product colour, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for Mercusys MA14H Wireless Network Card?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.
