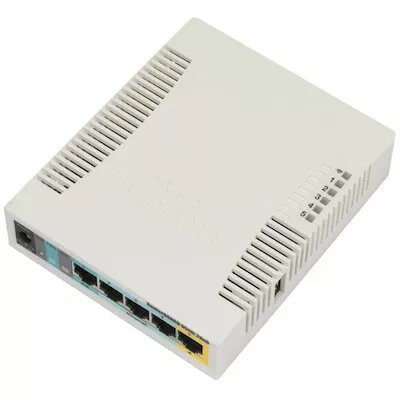

Wireless Router MikroTik RB951Ui-2HnD White, 2.4 GHz, 10/100 Mbps LAN, Internal Antennas 2.5 dBi, PoE 7–31 V

Internal: The product is built in.

No

Power consumption (max): The maximum amount of power used by the device.

7 W

2.4 GHz:

Yes

Logistics data

Harmonized System (HS) code:

85176990

Other features

USB connector type: The type of USB connector/port that this product has.

USB Type-A

Frequency band: A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones.

2.4

Operational conditions

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

-20 - 50

Features

Internal memory: The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.

128 MB

Built-in processor: Whether or not a processor is built into the device.

Yes

Internal memory type: The type of internal memory such as RAM, GDDR5.

DDR2

Processor frequency: The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time.

600 MHz

Processor model: The model number for the processor in a computer.

Qualcomm Atheros AR9344-DC3A

Antenna

Antenna gain level (max): Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction.

2.5 dBi

Antenna type: Type of antenna, also known an aerial, e.g. external, internal.

Internal

Packaging content

Bundled software: Software distributed with another product such as a piece of computer hardware or other electronic device, or a group of software packages which are sold together. A software suite is an example of bundled software, as is software which is pre-installed on a new computer.

MikroTik RouterOS

Design

LED indicators:

Yes

Housing material: What the casing of the product is made of.

Plastic

Product colour: The colour e.g. red, blue, green, black, white.

White

Ports & interfaces

USB 2.0 ports quantity: Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.

1

Power over Ethernet (PoE): The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.

Yes

Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

5

Network

Receiver sensitivity:

802.11g: -96dBm @ 6Mbit/s to -80dBm @ 54Mbit/s 802.11n: -96dBm @ MCS0 to -78dBm @ MCS7

Ethernet LAN data rates: The different speed levels of the Ethernet LAN connection.

10, 100

Wireless LAN features

Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.11n, IEEE 802.11b, IEEE 802.11g, IEEE 802.3u, IEEE 802.3

Modulation: Modulation is the process of varying one or more properties of a periodic waveform, called the carrier signal (High Frequency Signal), with a modulating signal which typically contains information to be transmitted. The aim of digital modulation is to transfer a digital bit stream over an analog bandpass channel, for example over the public switched telephone network (where a bandpass filter limits the frequency range to between 300 and 3400 Hz), or over a limited radio frequency band. The aim of analog modulation is to transfer an analog baseband (or lowpass) signal, for example an audio signal or TV signal, over an analog bandpass channel at a different frequency, for example over a limited radio frequency band or a cable TV network channel.

QPSK, OFDM, DSSS, DQPSK, DBPSK, CCK, BPSK, 64-QAM, 16-QAM

Weight & dimensions

Height: The measurement of the product from head to foot or from base to top.

29 mm

Depth: The distance from the front to the back of something.

113 mm

Width: The measurement or extent of something from side to side.

138 mm

Power

AC input voltage: The voltage of the AC electricity that is inputted into the product.

7 - 31
