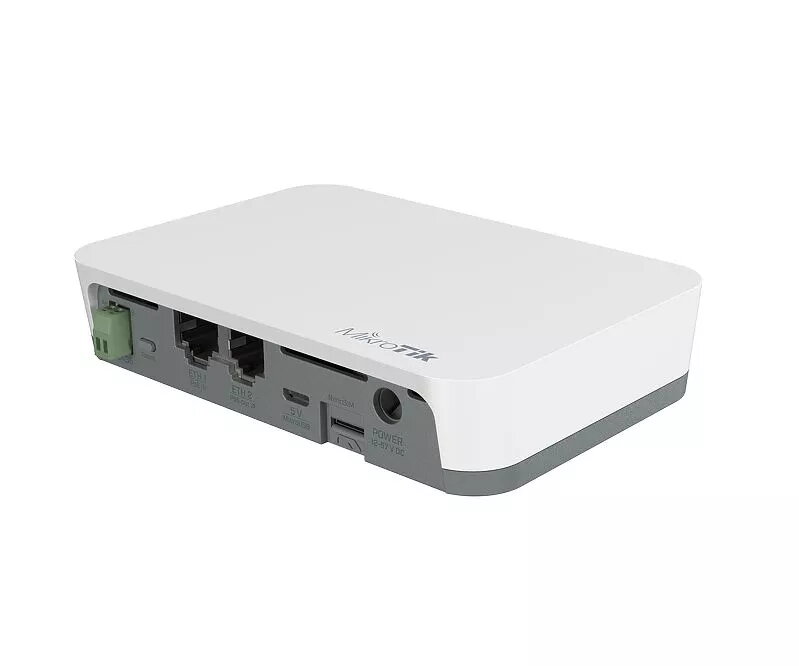

Gateway Mikrotik RB924I-2ND-BT5&BG77 Wi-Fi 2.4GHz IEEE 802.11n

Wi-Fi standards: The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.

802.11b, 802.11g, Wi-Fi 4 (802.11n)

Number of processors installed: Number of processors in the product.

1

Serial interface type:

RS-485

Wireless connection: Wireless is a term used to describe telecommunications in which electromagnetic waves (rather than some form of wire) carry the signal over part or all of the communication path.

Yes

WLAN data transfer rates supported:

300

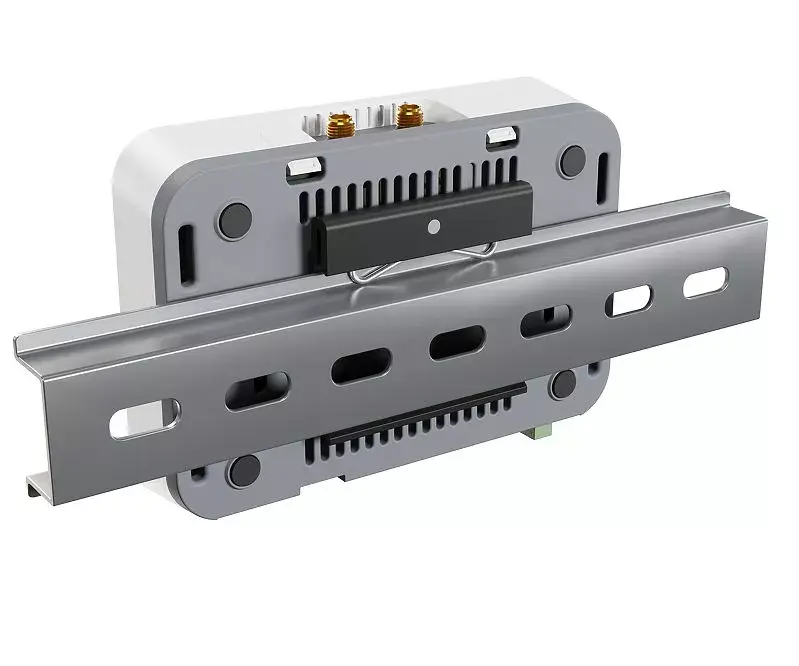

Mounting type: Type of mounting e.g. wall mounting.

DIN-rail

Forwarding rate:

300 Mpps

Micro-USB 2.0 ports quantity:

1

Wi-Fi band: The frequency bands the product features.

Single-band (2.4 GHz)

WLAN data transfer rate (max):

300 Mbit/s

Top Wi-Fi standard: Connection of this device is done via Wi-Fi in a high standard.

Wi-Fi 4 (802.11n)

Logistics data

Harmonized System (HS) code:

85176990

Operational conditions

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

-40 - 70

Weight & dimensions

Height: The measurement of the product from head to foot or from base to top.

26 mm

Depth: The distance from the front to the back of something.

87 mm

Width: The measurement or extent of something from side to side.

122 mm

Certificates

Certification:

CE, FCC, IC, EAC, ROHS

Technical details

Wi-Fi: Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.

Yes

Mobile network

SIM card type:

NanoSIM

SIM card slot: Whether the device features a SIM card slot.

Yes

Performance

Compatible operating systems: List of desktop operating systems tested as compatible with this product.

RouterOS

Internal memory: The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.

64 MB

Flash memory:

16 MB

Processor frequency: The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time.

650 MHz

Processor model: The model number for the processor in a computer.

QCA9531

Built-in processor: Whether or not a processor is built into the device.

Yes

Antenna

Antenna gain level (max): Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction.

1.5 dBi

Design

International Protection (IP) code: The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

IP20

Product colour: The colour e.g. red, blue, green, black, white.

White

Power

Power consumption (typical): Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.

18 W

Power over Ethernet (PoE): The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.

Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

2

Features

Bluetooth version: The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).

5.2

Bluetooth: Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.

Yes

Cabling technology: Type of cable technology performance.

10/100Base-T(X)

Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.3at, IEEE 802.11a, IEEE 802.3af, IEEE 802.11b, IEEE 802.11n, IEEE 802.11g

Ethernet LAN data rates: The different speed levels of the Ethernet LAN connection.

100, 10
