Access Point MikroTik cAP-2nD 2.4 GHz Wi-Fi 802.11n, 22 dBm, 1x RJ-45 PoE, ceiling mount

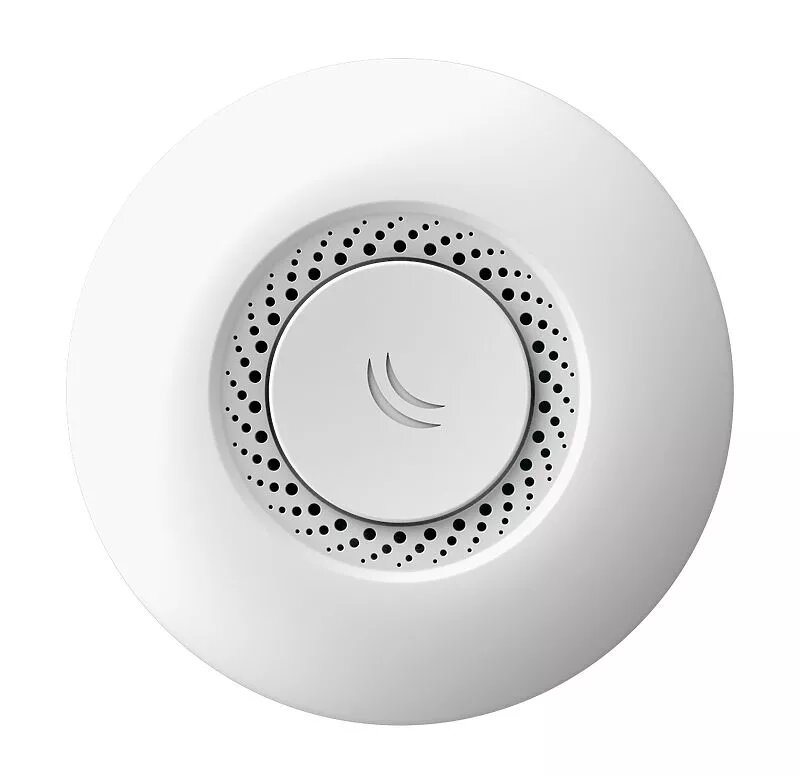

The MikroTik cAP-2nD is a compact ceiling-mounted access point operating on the 2.4 GHz band with support for IEEE 802.11b/g/n. Designed for unobtrusive indoor installation, it suits hospitality and public venues such as hotels, airports and shopping malls. The unit supports Power over Ethernet (PoE) for simplified cabling and includes mounting accessories, a PoE injector and a power adapter for quick deployment.

Advantages

The cAP-2nD provides reliable 2.4 GHz wireless coverage with dual-chain 802.11n performance in a discreet white enclosure. It is compatible with MikroTik CAPsMAN, enabling centralized management of multiple access points without the need for a dedicated controller PC. The device has low power consumption (approximately 4 W) and a single 10/100 Mbps Ethernet port, making it easy to integrate into existing networks.

Suitable for

• Hotels and hospitality venues
• Airports and transportation hubs
• Shopping malls and retail spaces
• Offices and conference rooms with ceiling mounting

Key specifications

• Wi‑Fi standards: IEEE 802.11b/g/n (2.4 GHz)
• Ethernet: 1 × RJ‑45 10/100 Mbps

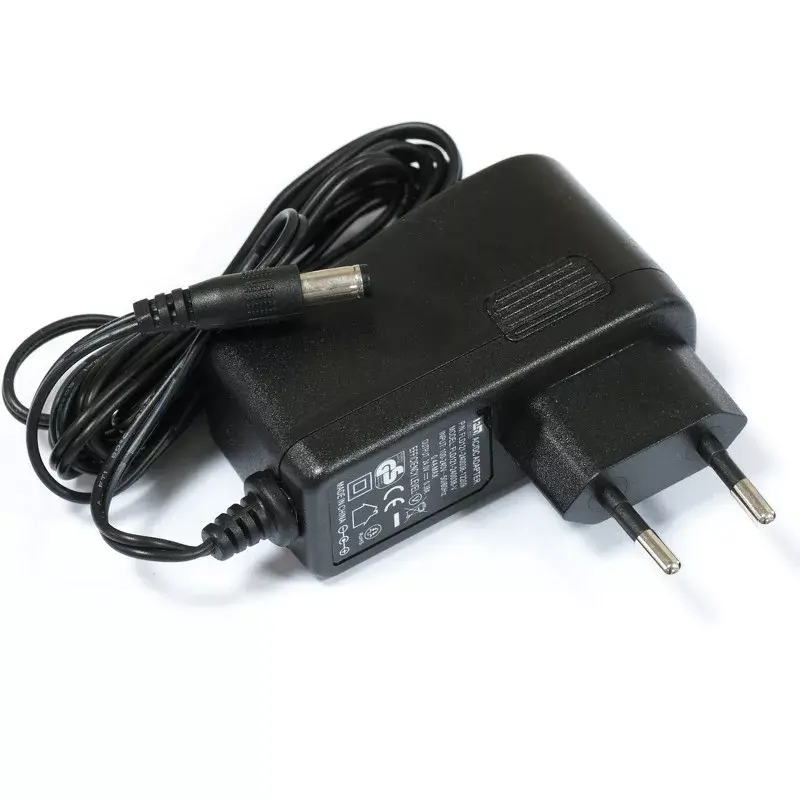

• Power: PoE support (IEEE 802.3af/802.3at), includes PoE injector and power adapter
• Maximum power consumption: ~4 W
• Colour: White

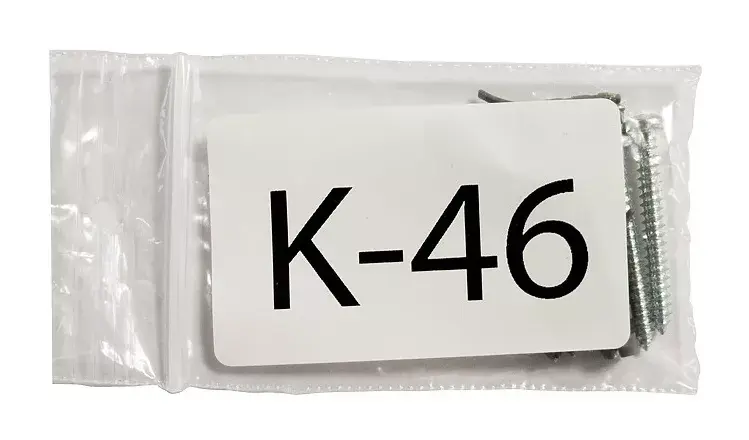

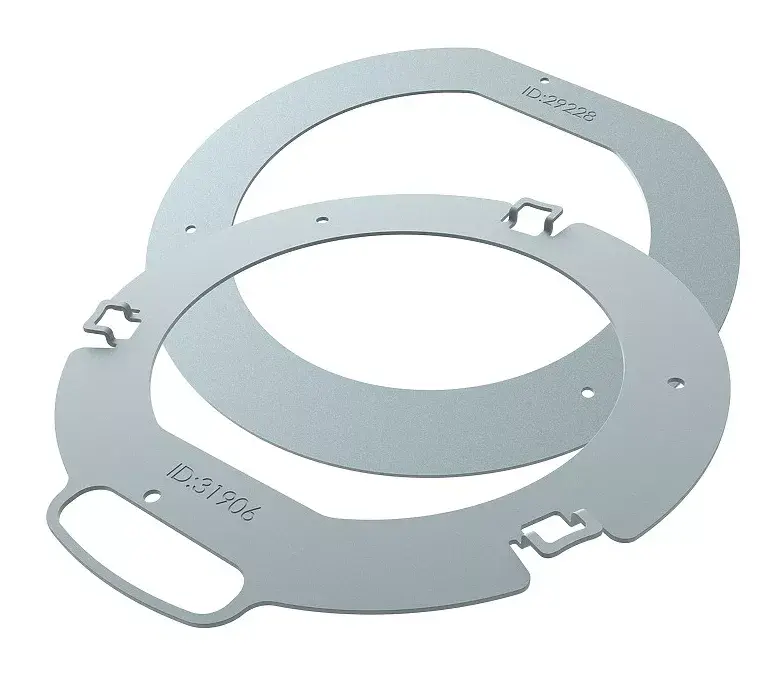

• Includes wall/ceiling mount, screws and anchors
• Manufacturer part number (MPN): RBCAP2ND
• EAN: 4752224001191

How to use

Install the cAP-2nD on a ceiling or wall using the supplied mounting kit. Connect the device to your network using the included PoE injector or a PoE-capable switch to provide both data and power via the Ethernet cable. Configure the access point locally or manage it centrally with MikroTik CAPsMAN running on a compatible RouterBOARD in your network. Follow standard network security practices when setting SSID, encryption and administrative access.

Usage recommendations

For optimal coverage, mount the access point centrally within the intended coverage area and avoid placing it near large metal objects or other sources of radio interference. Use CAPsMAN for unified configuration and monitoring when deploying multiple cAP-2nD units.
