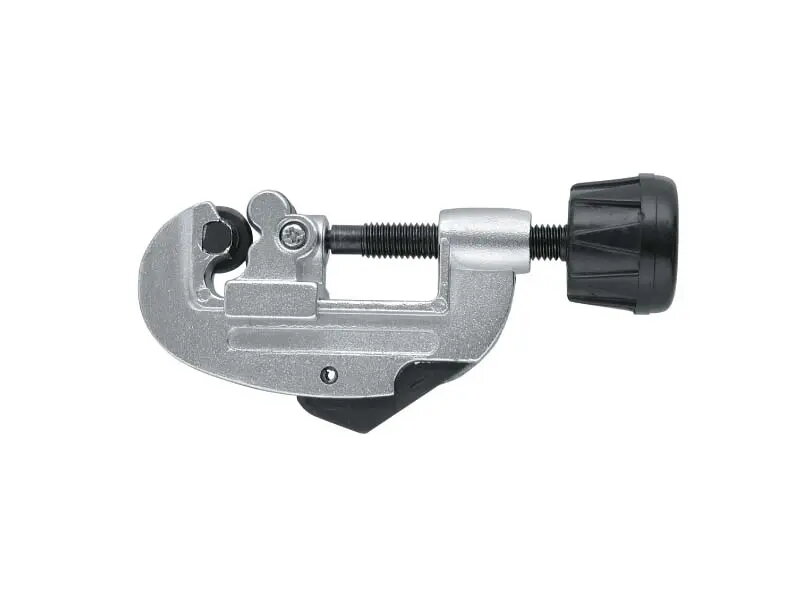

Tube Cutter MODECO MN-62-505 — rotary pipe cutter for aluminum pipes 3–30 mm

Modeco MN-62-505 is a compact rotary tube cutter designed for clean, repeatable cutting of small-diameter aluminium pipes. Engineered for diameters from 3 to 30 mm, the tool combines a roller-guided cutting wheel with a control knob to ensure even pressure and a smooth rotation around the pipe, reducing burrs and deformation. Its small footprint and simple adjustment make it suitable for tight spaces and on-site work in plumbing, HVAC installations and light metal fabrication.

Advantages

The cutter provides precise, burr-reduced cuts thanks to a hardened cutting wheel running on guiding rollers, which stabilise the pipe during the operation. Its adjustable clamping mechanism and ergonomic control knob allow rapid setup for varying tube diameters without the need for complex fixtures. The compact construction offers good accessibility in confined areas and improves handling during repetitive cutting tasks.

Suitable for

• Cutting aluminium tubing for plumbing and water supply lines
• HVAC installations where compact, accurate cuts are required
• Light metalwork and workshop tasks involving small-diameter pipes
• On-site service and maintenance jobs with limited working space

Key specifications

• Cutting range: 3–30 mm diameter
• Material compatibility: aluminium tubing (designed primarily for soft non-ferrous pipes)
• Cutting method: rotary cutting wheel with roller guidance
• Design: compact, handheld rotary cutter with adjustable clamp
• Typical result: smooth, low-burr cuts suitable for joining and further processing

How to use

Place the aluminium pipe in the cutter's rollers and position the cutting wheel at the intended cutting line. Tighten the clamp or adjust the control knob until the pipe is held firmly but not crushed. Rotate the cutter around the pipe while gradually increasing the pressure on the cutting wheel after each full rotation, allowing the wheel to score and then deepen the cut until separation occurs. After cutting, deburr the pipe ends if needed before installation or joining.

Usage recommendations

Use the cutter on clean, supported pipe sections and avoid excessive initial clamping force to prevent deformation. Replace the cutting wheel when cuts become uneven or require excessive pressure. For pipe preparation, inspect tube ends and remove any remaining burrs before joining or soldering.
