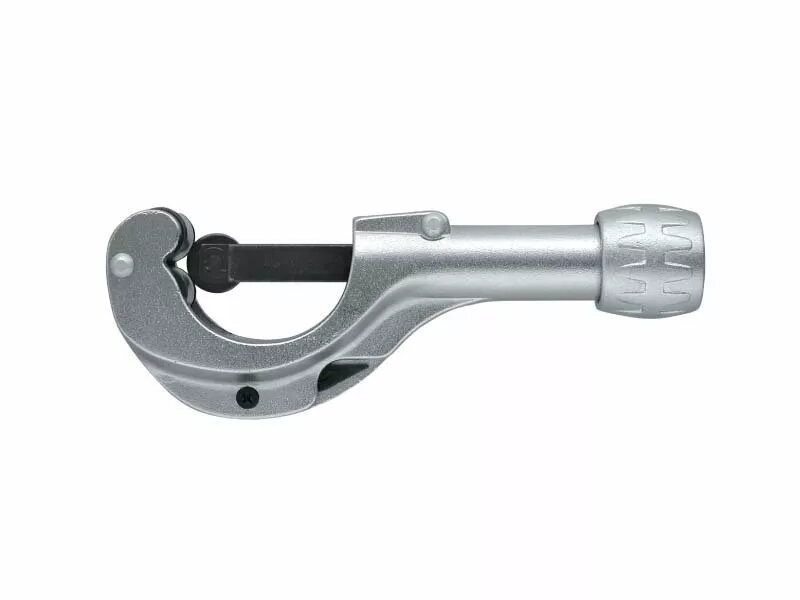

Pipe roller cutter MODECO MN-62-507 for cutting pipes 3–50 mm

MODECO MN-62-507 pipe roller cutter is designed for cutting round pipes and tubes with diameters from 3 to 50 mm. The tool uses a roller-guided cutting head and an adjustable clamping mechanism to hold the workpiece securely while producing straight, clean cuts. It is suitable for use on common metal and plastic tubing types within the specified diameter range and is intended for plumbing, HVAC and general maintenance where precise pipe lengths and neat edges are required.

Advantages

The roller-guided cutting head ensures consistent alignment along the pipe circumference, reducing the risk of angled or ragged cuts. Adjustable clamping provides stable fixation of pipes from small to medium diameters, improving cut quality and operator safety. The compact, handheld design allows access to confined spaces and simplifies cutting in situ without the need to remove long pipe runs. The cutter’s cutting wheel and rollers are configured to minimize deformation of soft plastic tubes while effectively scoring and separating harder metal tubing.

Suitable for

• Cutting copper, aluminium and plastic pipes used in plumbing
• Preparing tubing for HVAC installations and repairs
• On-site maintenance and retrofit work in restricted spaces
• Workshop tasks requiring quick, repeatable straight cuts of round tubing

Key specifications

• Pipe diameter range: 3–50 mm
• Cutting method: roller-guided cutting head with adjustable clamp
• Suitable materials: common metal and plastic tubing
• Design: compact handheld roller cutter for in-situ use
• Cut quality: designed to produce straight, clean edges with minimal deformation

How to use

Position the pipe between the rollers and adjust the clamp until the pipe is held firmly but without excessive compression. Rotate the cutter around the pipe while maintaining even pressure so the cutting wheel scores progressively deeper until the pipe separates. For plastic tubing, take care to avoid crushing by using lower clamping force and making successive passes rather than forcing a single deep cut. Inspect the cut edge and deburr if necessary before installation.

Usage recommendations

Use appropriate personal protective equipment such as gloves and eye protection. Match the clamp pressure and number of cutting passes to the pipe material—softer plastics typically require lighter clamping and more passes, while thin-walled metal tubes may need steadier pressure and fewer revolutions. Replace the cutting wheel when cuts become uneven or require excessive force.
