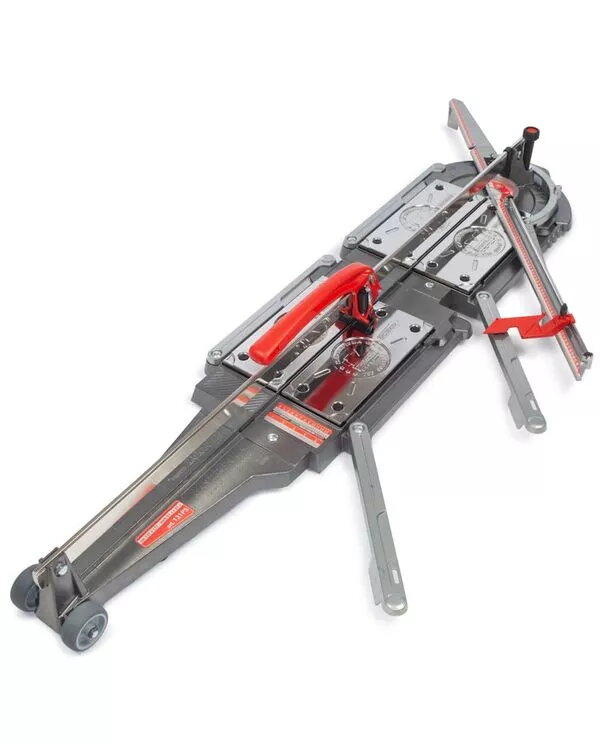

Tile cutter Montolit Masterpiuma Power 5 — cutting length 63 cm, thickness 2 mm, for ceramic

Montolit Masterpiuma Power 5 — cutting length 63 cm, thickness 2 mm, for ceramic is a manual tile cutter designed and manufactured in Italy for straight cuts in ceramic tiles. The tool offers a maximum cutting length of 63 cm and supports cutting thicknesses up to 2 mm. It is part of the Power 5 line, engineered with an “All in One” concept and optimized to handle modern ceramic materials including dense porcelain and delicate vitrified tiles while remaining compact and transportable for renovation and installation jobs in residential and light commercial projects.

Advantages

The Masterpiuma Power 5 features a structured modular frame in light alloy with reinforcement ribs at high-stress points to improve stability on front cuts and thick or full-body porcelain. An oversized multifunctional goniometrical square rotates to +45° and -45° for consecutive angled cuts and folds within the machine profile for quick setup and transport. The incision handle integrates strength indicators that allow precise control of incision depth and splitting force, a double trestle splitting system with a scratch-resistant polymer, an integrated lubricant dispenser, and a replaceable tungsten carbide engraving wheel. The R.A.S. (Roller Adjuster System) maintains consistent contact with the guiding bar to minimize lateral play and ensure accurate scoring. Expanded lateral supports provide improved backing for large tiles and diagonal cuts.

Suitable for

• Cutting straight ceramic tiles up to 63 cm in length
• Renovation and installation of residential ceramic flooring and wall tiles
• Light commercial tile installations requiring reliable manual straight cuts
• Working with modern dense porcelain and vitrified ceramic formats
• On-site jobs where compact, easily transportable tools are needed

Key specifications

• Maximum cutting length: 63 cm
• Maximum supported cutting thickness: 2 mm (effective for intended ceramic materials)
• Frame material: light alloy with reinforcement ribs
• Adjustable goniometrical square: rotation ±45° with folding stop
• Engraving wheel: tungsten carbide with titanium coating (replaceable)
• Splitting system: double trestle with scratch-resistant polymer component
• R.A.S. (Roller Adjuster System) for reduced lateral movement
• Lateral supports: expanded support surface for improved backing
• Origin: Made in Italy; components fully recyclable

How to use

Place the tile on the cutter bed, align the tile edge with the goniometrical square or guide for the required measurement and angle, then lock the square if needed. Use the incision handle to score the tile, controlling depth and pressure according to tile material and thickness. After scoring, apply steady splitting pressure using the handle and the double trestle system to snap the tile along the score line. For angled cuts, set the square to the desired angle and proceed with the same scoring and splitting steps. Use the integrated lubricant dispenser sparingly when cutting very dense porcelain to reduce friction and improve scoring quality.

Usage recommendations

Inspect the tungsten carbide engraving wheel periodically and replace it when scoring performance declines; moderate the incision pressure for thin or delicate vitrified tiles and increase control for thicker or full-body porcelain. Use the folding goniometric square for repeated angled cuts and keep lateral supports extended for large-format tiles to ensure stable support during cutting.
