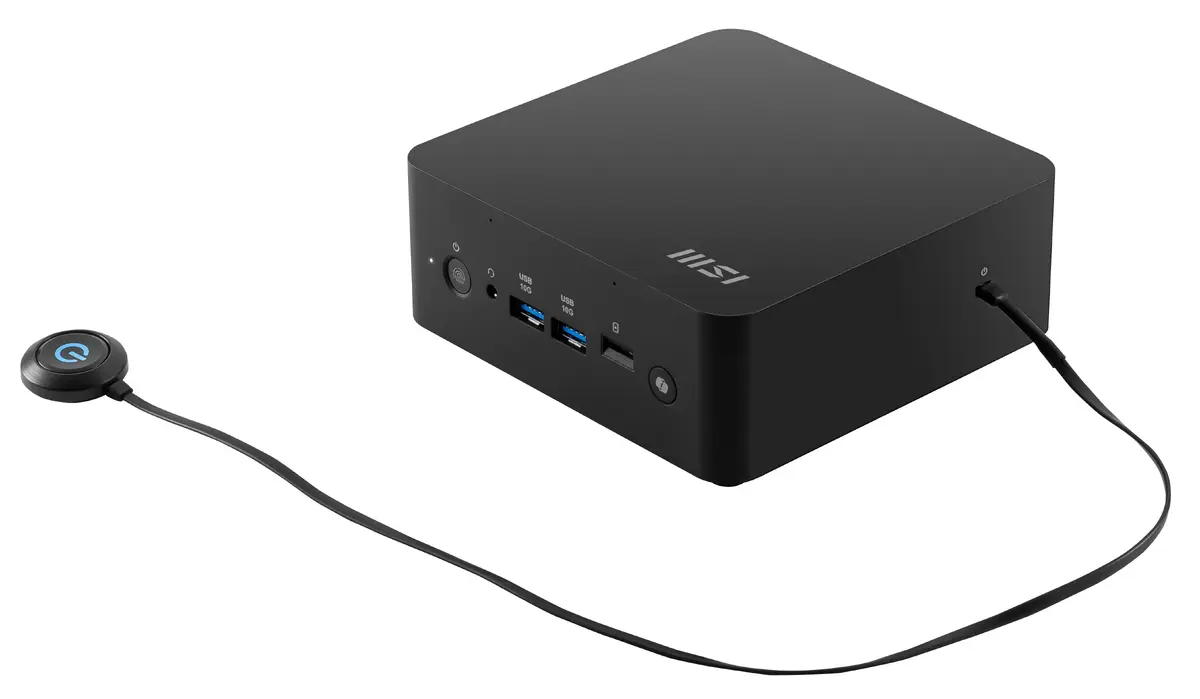

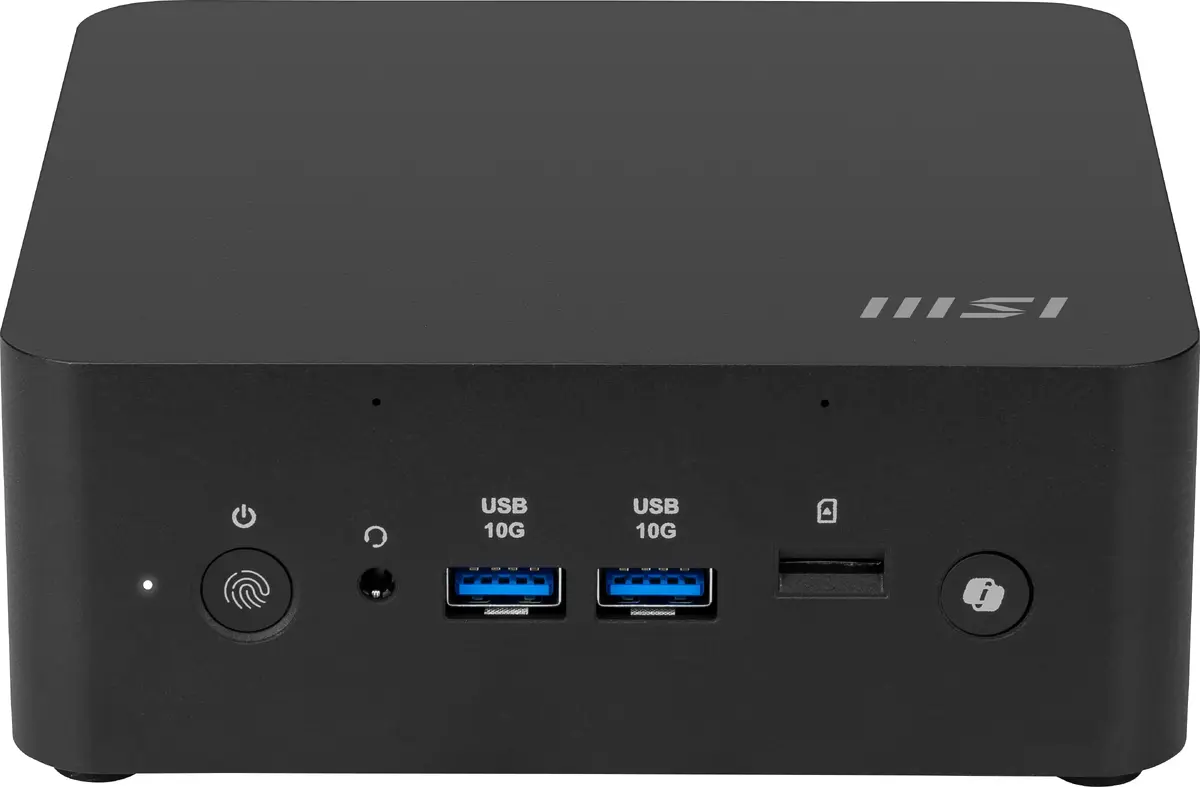

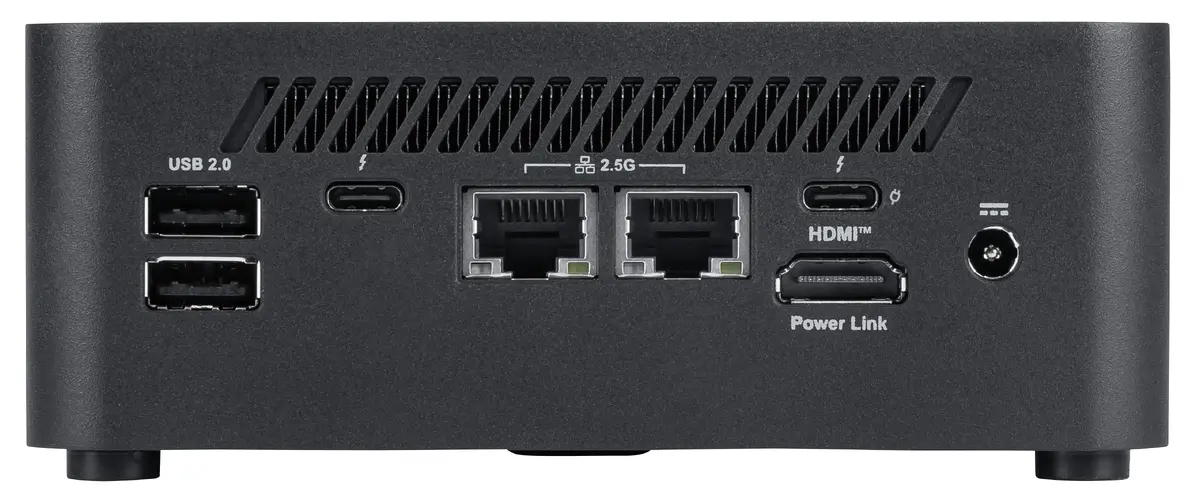

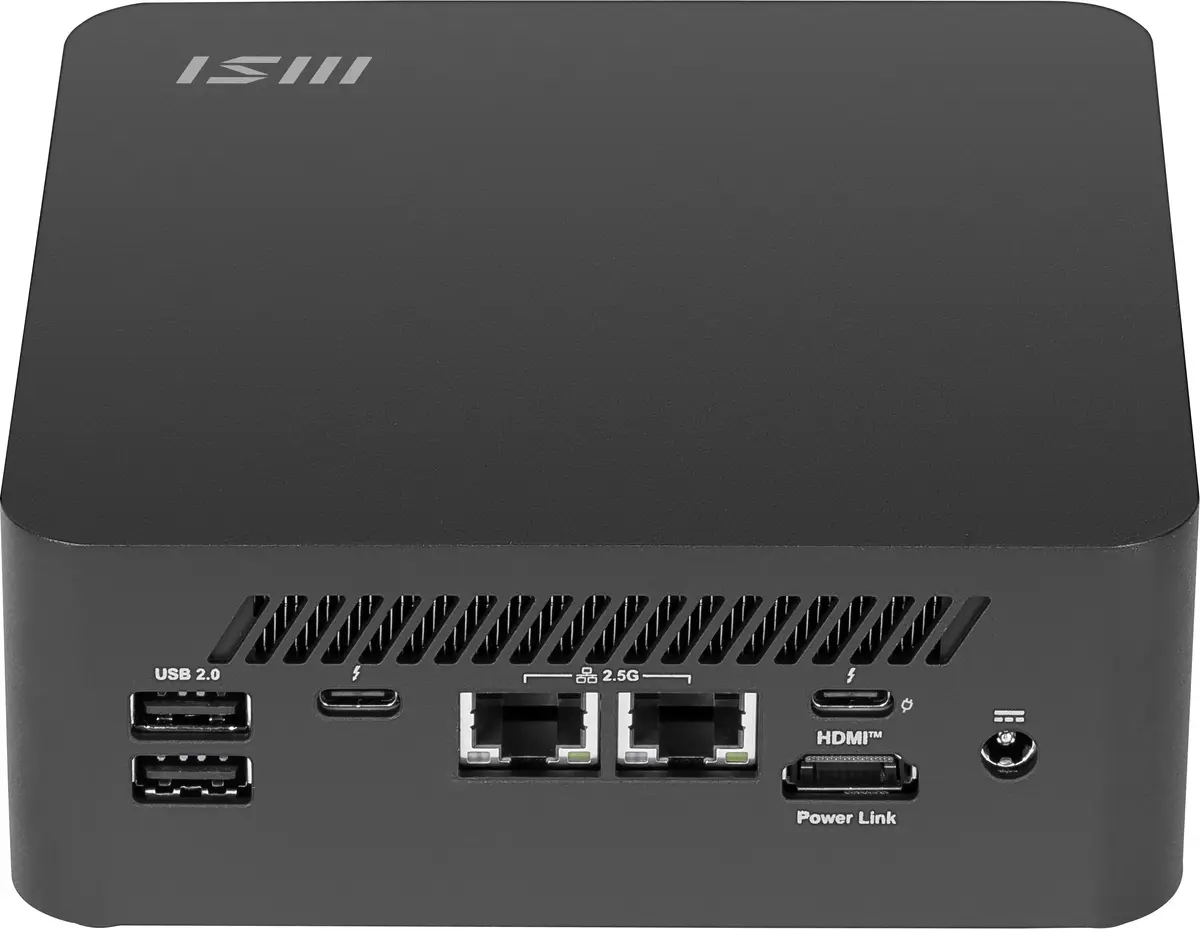

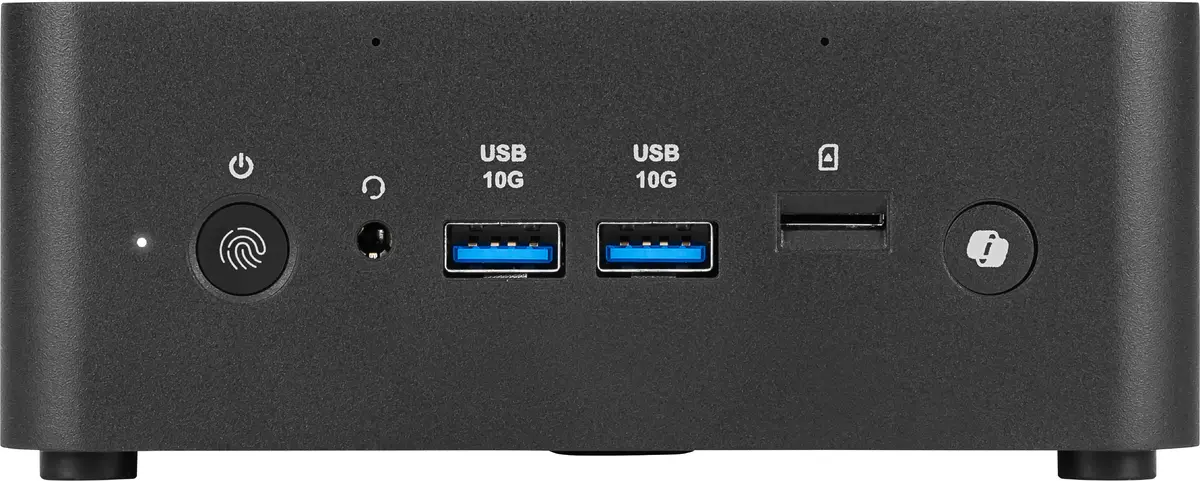

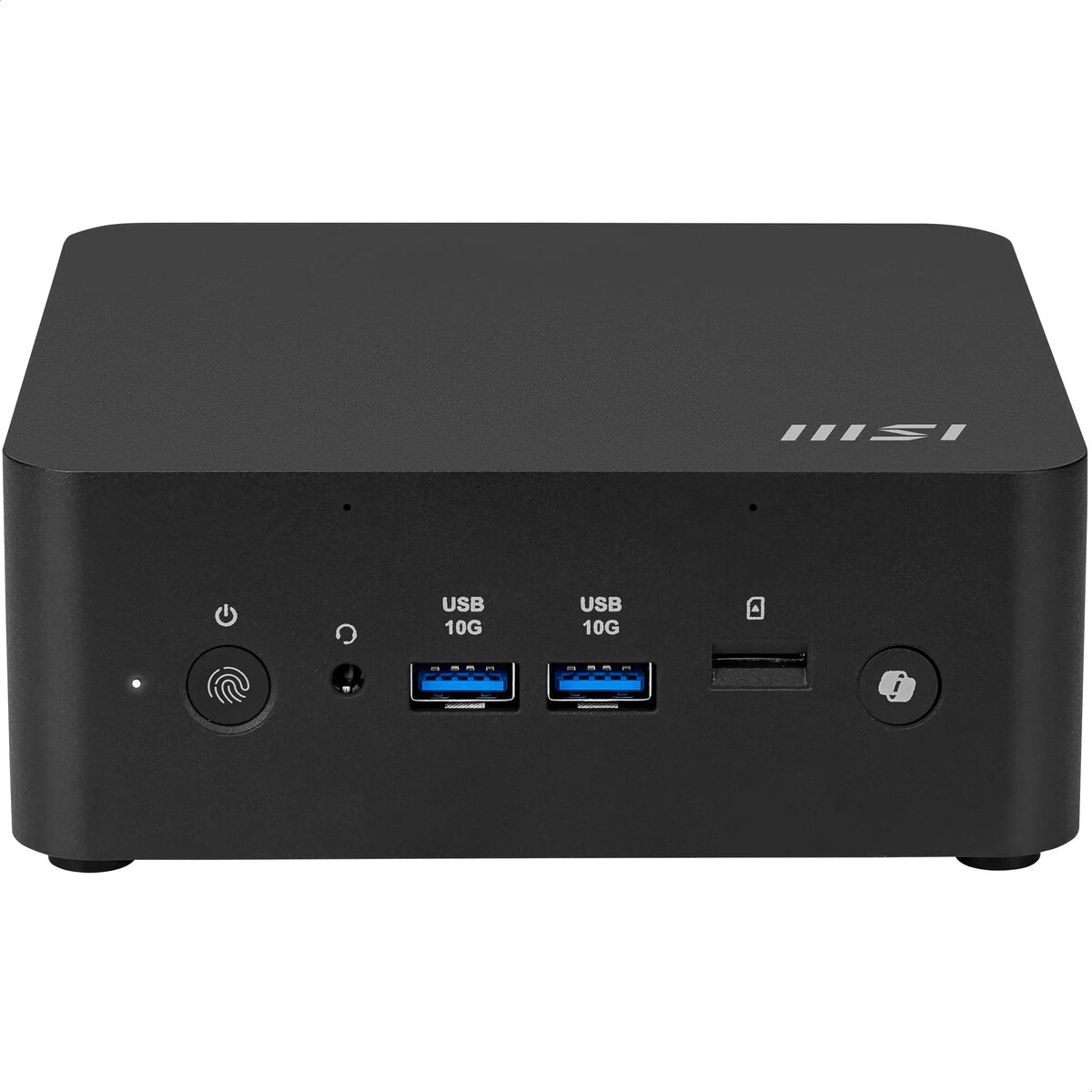

Mini PC MSI Cubi NUC AI+ 2MG-007EU Intel Core Ultra 9 32GB 1TB SSD Intel Arc Windows 11 Pro

USB Type-C DisplayPort Alternate Mode:

Yes

Powered by:

MSI

Processor

Processor family:

Intel Core Ultra 9

Processor model:

288V

Processor boost frequency:

5.1 GHz

Processor cores:

8

Processor threads:

8

Processor cache:

12 MB

Processor cache type:

Smart Cache

Processor manufacturer:

Intel

Processor base power:

30 W

Maximum turbo power:

37 W

Performance-core base frequency:

3.3 GHz

Processor generation:

Intel Core Ultra (Series 2)

Performance-core Max Turbo Frequency:

5.1 GHz

Performance cores:

4

Low Power Efficient-cores:

4

Low Power Efficient-core Max Turbo Frequency:

3.7 GHz

Low Power Efficient-core Base Frequency:

3300 MHz

Memory

Internal memory:

32 GB

Internal memory type:

LPDDR5x-SDRAM

Maximum internal memory:

32 GB

Storage

Total storage capacity:

1000 GB

SSD capacity:

1000 GB

SSD interface:

PCI Express

Number of SSDs installed:

1

Compatible memory cards:

MicroSD (TransFlash)

Card reader integrated:

Yes

Storage media:

SSD

SSD form factor:

M.2

NVMe:

Yes

Total SSDs capacity:

1000 GB

SSD memory type:

TLC

M.2 SSD size:

2280 (22 x 80 mm)

Graphics

Discrete graphics card model:

Not available

Discrete graphics card:

No

On-board graphics card:

Yes

On-board GPU manufacturer:

Intel

Network

Wi-Fi:

Yes

Wi-Fi standards:

Wi-Fi 6E (802.11ax)

Bluetooth:

Yes

Ethernet LAN:

Yes

Bluetooth version:

5.3

Ethernet LAN data rates:

2500

Top Wi-Fi standard:

Wi-Fi 6E (802.11ax)

Antenna type:

2x2

WLAN controller model:

Intel Wi-Fi 6E AX211

WLAN controller manufacturer:

Intel

Ports & interfaces

Ethernet LAN (RJ-45) ports:

1

USB 2.0 ports quantity:

2

Headphone outputs:

1

Microphone in:

Yes

HDMI ports quantity:

1

HDMI version:

2.1

Combo headphone/mic port:

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

0

Thunderbolt 3 ports quantity:

0

Number of USB ports with PowerShare support:

1

Thunderbolt 4 ports quantity:

2

Intel® Thunderbolt 4:

Yes

Software

Operating system installed:

Windows 11 Pro

Expansion slots

PCI Express x16 slots:

1

PCI Express x1 slots:

1

PCI Express x1 (Gen 3.x) slots:

1

Technical details

Statement of conformance & platform certificate included:

Yes

Compliance certificates:

CB, Federal Communications Commission (FCC)

Not classified as hazardous under GHS:

Yes

Design

Product colour:

Black

Chassis type:

Mini PC

Cable lock slot:

Yes

Number of 2.5" bays:

1

Cable lock slot type:

Kensington

VESA mounting:

Yes

Operational conditions

Operating relative humidity (H-H):

0 - 85

Storage temperature (T-T):

-20 - 60

Operating temperature (T-T):

0 - 35

Storage relative humidity (H-H):

0 - 90

Weight & dimensions

Weight:

0.667 kg

Package weight:

1682 g

Height:

50.1 mm

Width:

135.6 mm

Depth:

132.5 mm

Package depth:

220 mm

Package height:

94 mm

Package width:

205 mm

Volume:

0.826 L

Packaging content

Mouse included:

No

Keyboard included:

No

Other features

Cabling technology:

10/100/1000Base-T(X)

Number of 3.5" bays:

1

Power supply:

120 W

Motherboard form factor:

NUC

Display included:

No

Audio

Audio system:

High Definition Audio

Built-in speaker(s):

Yes

Performance

Optical drive type:

No

Placement supported:

Horizontal/Vertical

Trusted Platform Module (TPM):

Yes

Market positioning:

Business

Trusted Platform Module (TPM) version:

2.0

Product type:

Mini PC

Audio chip:

Realtek ALC256

Neural processor unit (NPU)

Sparsity support:

Yes

Windows Studio effects support:

Yes

AI software frameworks supported by NPU:

DirectML, OpenVINO, Windows ML, ONNX RT

Total processor performance up to:

120 TOPs

NPU performance up to:

48 TOPs

Neural processor unit (NPU):

Intel AI Boost

GPU performance up to:

67 TOPs

Copilot+ PC:

Yes
