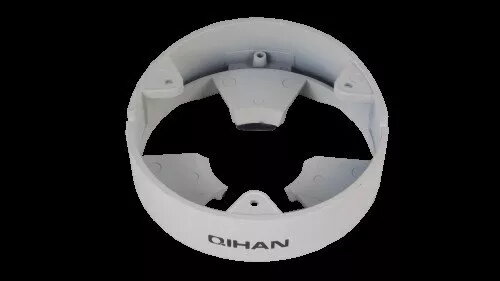

Additional Connection Base for X51 Series Bullet Surveillance Cameras QH-junction – junction adapter for bullet camera mounting

The Additional Connection Base QH-junction is an installation accessory designed for X51 series bullet surveillance cameras. It functions as a junction adapter that organizes and protects power and signal cables while providing a secure interface between the camera housing and mounting surfaces. The product is compatible with bullet-type camera housings in the X51 family and is intended to simplify wiring and to create a stable mounting point for indoor and outdoor camera installations.

Advantages

The junction adapter allows concealed cable routing to reduce visible wiring and protect connections from weather and accidental strain. It provides a robust mechanical interface that improves camera stability on walls, ceilings, or specialty mounts. The design facilitates faster installations by grouping power and signal lines into a single access point and supports professional-grade and residential CCTV setups without requiring custom conduit work.

Suitable for

• Mounting X51 series bullet surveillance cameras on walls and ceilings
• Concealing and protecting power and signal cables during CCTV installation
• Upgrading existing bullet camera mounts to a unified junction point
• Indoor and sheltered outdoor camera installations where neat wiring is required

Key specifications

• Compatibility: designed for bullet-type camera housings within the X51 series
• Function: junction adapter for routing and protecting power and signal cables
• Mounting: provides a flat, stable interface for wall or ceiling attachment
• Material characteristics: durable construction suitable for standard CCTV installation environments
• Cable access: provisions for grouping multiple cables and securing connections

How to use

Position the QH-junction base at the chosen mounting location and mark drill points on the surface. Route power and signal cables through the adapter’s cable entry, then fasten the base securely to the wall or ceiling using appropriate screws and anchors for the substrate. Connect cables to the camera following the camera manufacturer’s wiring diagram, seat the camera housing onto the junction base, and secure the camera according to the X51 camera attachment method. Verify cable strain relief and that all connections are weatherproofed if used outdoors.

Usage recommendations

Use corrosion-resistant fasteners and weather sealant for outdoor installations, and ensure cable entries are sealed to prevent moisture ingress. Verify compatibility with the specific X51 bullet housing before installation and follow local electrical codes for camera power connections.
