GPS receiver Navilock NL-8004P

Name: GPS receiver module Navilock NL-8004P 62527
Brand: Navilock
SKU: 1610501
Price: 146.99 EUR
Availability: InStock

Aquaphor

Filters you can trust. Pure water every day.

GPS receiver module Navilock NL-8004P

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The Navilock NL-8004P GPS receiver module features 72 channels and a sensitivity of -167 dBmW, ensuring accurate positioning. Its compact dimensions (62x62x21 mm) make it easy to integrate into various applications. Compatible with Windows 10 and 7 operating systems, this module is ideal for navigation and tracking solutions.

Available for order: 100 pcs.

Warranty: 2 Years

SKU: 1610501

Manufacturer: Navilock

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

15.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

15.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

20.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.34 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

20.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

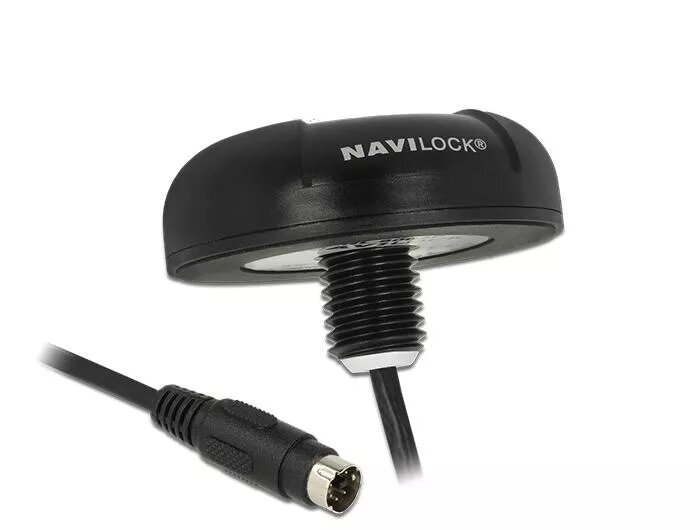

The Navilock NL-8004P GPS receiver module is a compact vehicle-mountable GNSS receiver based on the u-blox 8 chipset with an integrated high-sensitivity antenna. It supports multi-GNSS tracking with 72 channels and a sensitivity of -167 dBmW, and connects to a computer via the MD6 universal connector and optional USB or serial cables. With dimensions of 62 x 62 x 21 mm and supplied mounting hardware, the unit is suitable for installation on car, truck or bus roofs and is compatible with Windows 10 and Windows 7 for navigation and tracking applications.

Advantages

The NL-8004P offers high satellite sensitivity and multi-GNSS capability for reliable position fixes. Its built-in antenna and compact housing simplify installation on vehicle roofs, while the MD6 universal connector allows flexible connection options using USB or serial cables. Included mounting materials enable straightforward integration into vehicle concepts without additional accessories.

Suitable for

Vehicle navigation on cars, trucks and buses
Fleet tracking and vehicle positioning
Integration with laptop-based routing or mapping software

Key specifications

Brand: Navilock
Model: NL-8004P (MPN 62527, EAN 4043619625277)
GNSS chipset: u-blox 8
Channels: 72
Sensitivity: -167 dBmW
Dimensions: 62 x 62 x 21 mm
Connector: MD6 universal connector (supports optional USB or serial cables)
Compatibility: Windows 10, Windows 7

How to use

Mount the NL-8004P on a vehicle roof using the supplied installation material so the integrated antenna has a clear view of the sky. Connect the receiver to a laptop or other host using the MD6 universal connector and the appropriate USB or serial cable. Launch compatible routing or tracking software on a Windows 10 or Windows 7 system and configure the software to receive NMEA or protocol output from the GNSS receiver. Verify satellite reception and position output before starting navigation or tracking tasks.

Usage recommendations

Install the unit where the antenna has an unobstructed sky view for optimal signal reception. Use shielded USB or serial cables if routing cables through metal vehicle structures, and check software baud rate and protocol settings to match the receiver output.

All features

Interface:: MD6 Navilock
Chipset:: u-blox 8
Operating temperature (T-T):: -20 - 60
Height:: 21 mm
Width:: 62 mm
Depth:: 62 mm
WAAS capability:: Yes
Product colour:: Black
Navigation signals supported:: L1
Channels quantity:: 72 channels
Acquisition times - cold:: 26 s
GPS accuracy - position:: 2.5 m
Update rate:: 18 Hz
Acquisition times - hot:: 1 s
Manual:: Yes
Antenna:: Internal
Sensitivity:: -167 dBmW
Baud rate:: 115.2 Kbit/s
Windows operating systems supported:: Windows 7 Professional, Windows 10 Home, Windows 10 Pro, Windows 7 Home Basic, Windows 7 Home Premium, Windows 8, Windows 8.1
Linux operating systems supported:: Y
Frequency:: 1575.42 MHz
Navigation protocols:: NMEA 0183, RMC, VTG, GSV, GSA, GGA
