header-product GPS receiver module USB Navilock NL-852ETTL
89.99 €

GPS receiver module USB Navilock NL-852ETTL

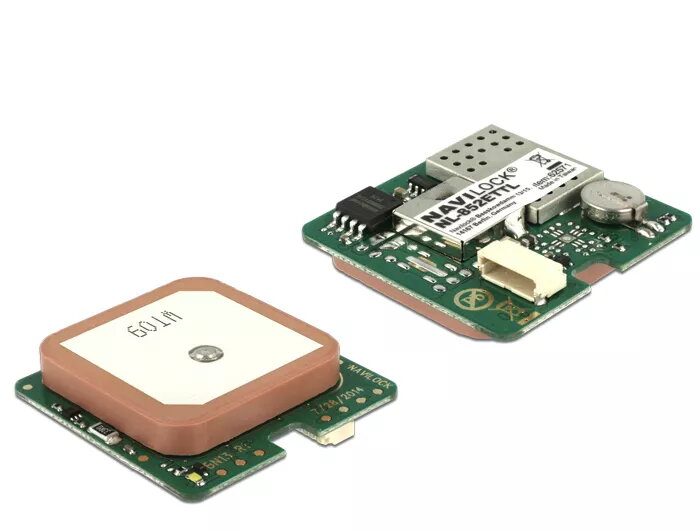

GPS receiver module Navilock NL-852ETTL Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

GPS receiver module USB Navilock NL-852ETTL

{{email}}
You keep track of price changes

GPS receiver module USB Navilock NL-852ETTL

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The Navilock NL-852ETTL is a compact USB GPS receiver module featuring u-blox 8 chipset with a sensitivity of -167 dBmW. Measuring 30 mm in width, 30 mm in depth, and 7.9 mm in height, it is designed for easy integration into various applications. Ideal for precise location tracking, it offers reliable performance and is suitable for both personal and professional use.
Available for order: 100 pcs.
Warranty: 2 Years
SKU: 1610454
Manufacturer: Navilock
free shipment

Cheapest delivery:

Venipak Locker LV

Pick-up points

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
23.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
28.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.03 kg)
Parcel couriers
Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Latvijas Pasts nodaļa
28.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Bank transfer
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Navilock NL-852ETTL is a compact USB GNSS receiver module that integrates a patch antenna, backup battery and a u-blox 8 UBX-M8030-KT chipset. Designed for USB connection and TTL 3.3 V serial interfacing, the module supports multiple satellite systems and provides reliable positioning for embedding into devices and systems where space is limited.

Advantages

The module accepts signals from up to 72 satellites simultaneously and supports multi-GNSS (GPS, GLONASS, BeiDou/COMPASS, Galileo and QZSS), improving availability and fix reliability. It offers high sensitivity (−167 dBm), selectable update rates (up to 18 Hz single-GNSS, 10 Hz multi-GNSS), SBAS support for enhanced accuracy and fast start times (cold start ~26 s, hot start ~1 s). Built-in LED indicates GPS status, and the unit is USB 2.0 compatible with auto baud up to 115200 bps.

Suitable for

  • Embedded devices and custom hardware requiring a compact USB GNSS receiver
  • Portable navigation and location-tracking applications
  • Data logging, fleet management and asset tracking where multi-constellation reception improves coverage

Key specifications

  • Connector: WTB serial TTL (3.3 V)
  • Chipset: u-blox 8 UBX-M8030-KT
  • Supported frequencies: GPS L1 1575.4200 MHz; GLONASS L1 ~1602 MHz; BeiDou B1 1561.0980 MHz; Galileo E1 1575.4200 MHz; QZSS L1 1575.4200 MHz
  • Simultaneous satellite tracking: up to 72 satellites
  • Protocols: NMEA 0183 (GGA, GSA, GSV, RMC, VTG)
  • SBAS: WAAS, EGNOS, QZSS, MSAS
  • USB: 2.0; Auto Baud Rate up to 115200 bps
  • Update rate: single GNSS 18 Hz; multi-GNSS 10 Hz
  • Sensitivity: −167 dBm
  • Positioning accuracy: 2.5 m CEP; 2 m CEP with SBAS
  • Power supply: 5 V; max current consumption 45 mA
  • Operating temperature: −40 °C to 85 °C (without battery); −20 °C to 60 °C (with battery)
  • Start times: cold start ~26 s; hot start ~1 s
  • Dimensions (L×W×H): approx. 30 × 30 × 7.9 mm

How to use

Connect the Navilock NL-852ETTL to a USB port or to a serial interface using the WTB TTL connector at 3.3 V logic levels. Ensure a stable 5 V power supply to the module and confirm the host serial settings (auto baud is supported up to 115200 bps). Use standard NMEA sentences (GGA, GSA, GSV, RMC, VTG) to receive position, satellite and navigation data. Allow time for satellite acquisition—full cold start may require around 26 seconds, while hot starts are typically near 1 second.

Usage recommendations

For best reception, place the module where the patch antenna has a clear view of the sky and avoid metal enclosures or dense obstructions. Enable SBAS where available to improve horizontal accuracy, and select multi-GNSS mode to increase fix reliability in challenging environments.
All features
Interface:
USB
Chipset:
u-blox 8
Height:
7.9 mm
Width:
30 mm
Depth:
30 mm
Product colour:
White, Green, Brown
Navigation signals supported:
L1, E1, B1
Acquisition times - cold:
26 s
Acquisition times - hot:
1 s
Sensitivity:
-167 dBmW
Frequency:
1575.42 MHz
Navigation protocols:
GGA, VTG, RMC, GSV, GSA
