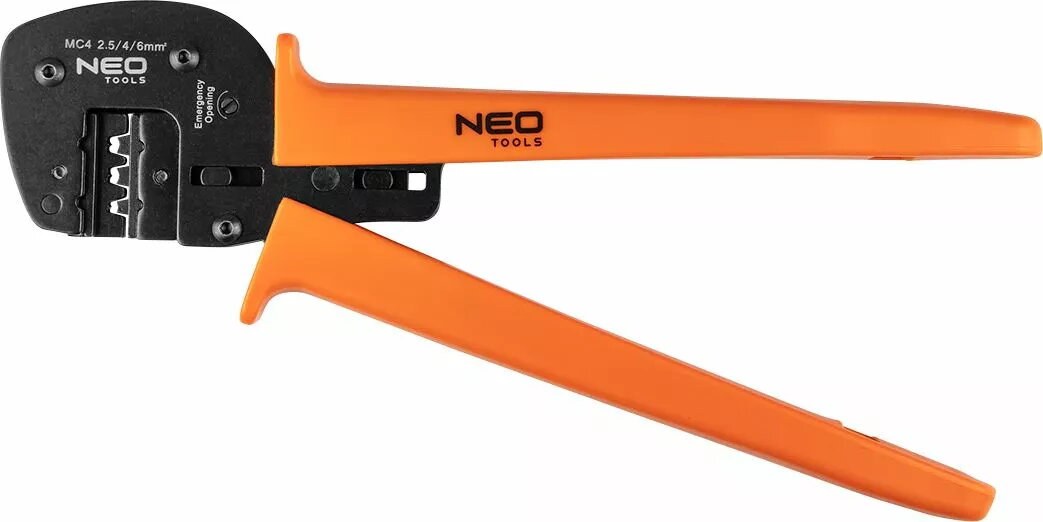

Crimping Pliers for MC4 Connectors NEO tools 01-555

Crimping Pliers for MC4 Connectors NEO tools 01-555 are hand-operated crimping pliers designed for reliable mechanical crimping of photovoltaic MC4 connector terminals. Manufactured by NEO tools, this tool is intended for field installation and maintenance of solar PV arrays where secure electrical and mechanical connections of solar panel wiring are required. The pliers are optimized for MC4-compatible female and male terminals and provide consistent compression force for repeatable crimps.

Advantages

The NEO tools crimping pliers deliver uniform crimp quality and a robust mechanical connection that helps ensure stable electrical contact in PV systems. Their ergonomic handles reduce hand fatigue during repetitive crimping tasks and the tool’s construction is made to withstand typical on-site conditions. The pliers are straightforward to operate, enabling installers and maintenance technicians to perform fast, consistent crimps without the need for powered equipment.

Suitable for

• Crimping MC4-compatible photovoltaic connector terminals on solar panel leads
• Field installation of solar arrays and rooftop PV systems
• Routine maintenance and replacement of damaged MC4 terminals
• Small-scale solar projects and on-site electrical wiring tasks

Key specifications

• Tool type: manual crimping pliers for MC4 connector terminals
• Compatibility: MC4 and MC4-compatible male and female photovoltaic terminals
• Operation: mechanical hand-crimp action for consistent compression
• Handle: ergonomic grips for improved comfort during repetitive use
• Use environment: designed for field use on solar PV installations

How to use

Strip the cable insulation to the correct length for the selected MC4 terminal, insert the conductor into the terminal barrel, position the terminal in the crimping die, and apply steady pressure until the crimp is complete. Verify the mechanical and electrical integrity by performing a pull test on the conductor and visually inspecting the crimped joint. Use the pliers on clean, correctly sized terminals and conductors to achieve optimal results.

Usage recommendations

Use the pliers with appropriately sized MC4 terminals and conductors, keep the tool clean and free of corrosion, and periodically inspect the crimping dies for wear. For safety, de-energize circuits before crimping and follow PV installation standards and manufacturer instructions for connector assembly and testing.
