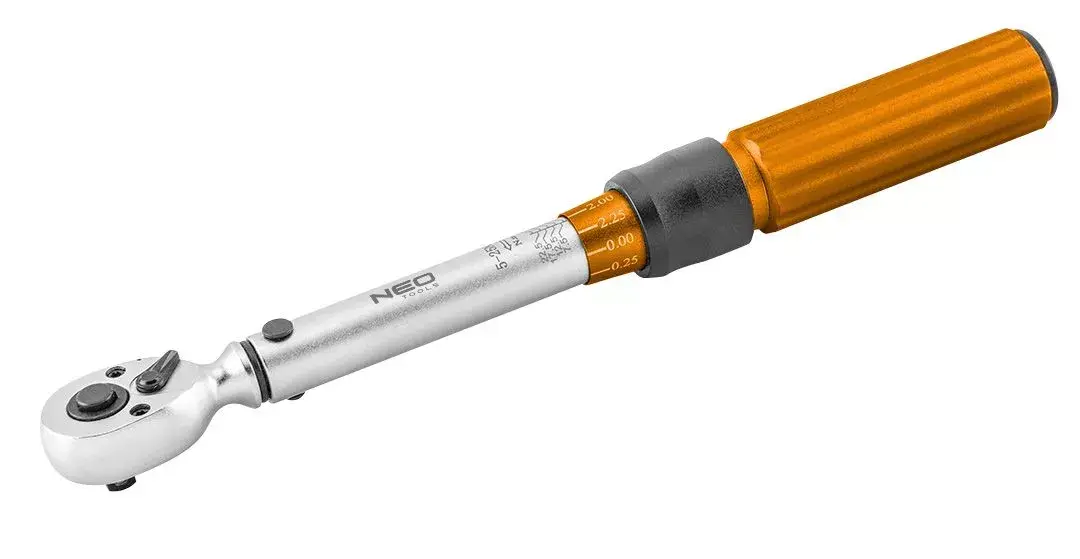

Torque Wrench NEO tools 08-821 1 pc 716 g

Bidirectional torque wrench 1/4', 5-25 Nm, set of 21 pieces (08-821, NEO) is a mechanical torque wrench designed for automotive, bicycle and home repair tasks. It accepts 1/4' drive sockets and provides a torque range from 5 to 25 Nm. The wrench features a directional switch for tightening and loosening right- and left-hand threaded fasteners and a handle-mounted knob for precise torque adjustment. The set includes the torque wrench and a selection of commonly used 1/4' sockets in a compact carrying case.

Advantages

The bidirectional spring mechanism enables reliable torque delivery in both clockwise and counterclockwise directions. A clear double-click feedback notifies the operator when the preset torque is reached, reducing the risk of over-tightening. The ratchet with right-left switch simplifies switching between tightening and loosening without changing the tool. Compact 1/4' drive and included socket set make the kit versatile for workshop, bicycle maintenance and household use.

Key specifications

• Drive square size: 1/4'
• Torque range: 5–25 Nm
• Torque adjustment increment: 1 Nm
• Accuracy: ±3% (right-hand threads)
• Accuracy: ±6% (left-hand threads)
• Mechanism: bidirectional spring (double-click type)
• Finish: tool steel

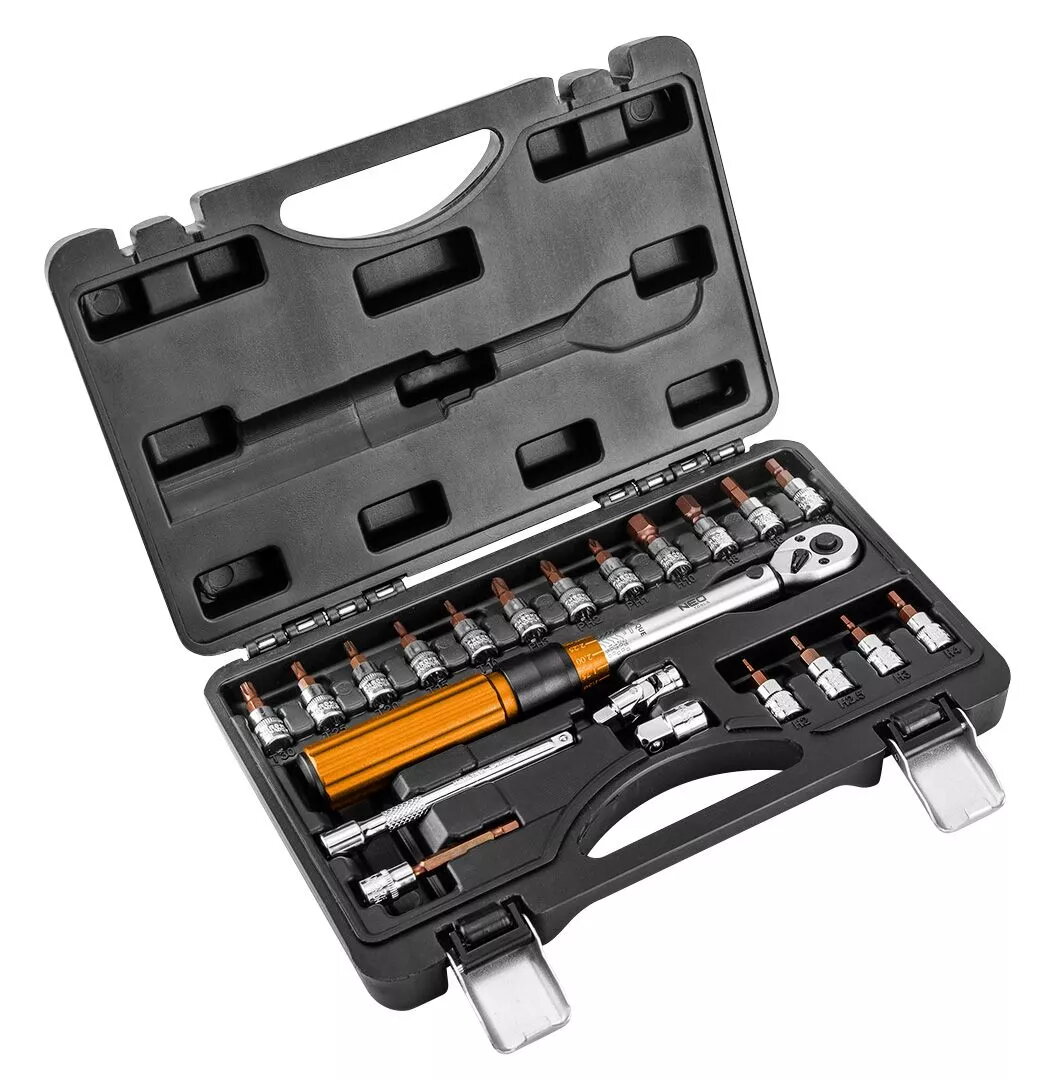

• Set composition: torque wrench + set of 1/4' sockets, carrying case

How to use

Select the appropriate socket and attach it to the 1/4' drive. Set the required torque value using the knob on the handle, noting the 1 Nm adjustment increment. Use the directional switch to choose clockwise or counterclockwise operation depending on whether you tighten or loosen the fastener. Apply force steadily; the wrench will emit two distinct clicks when the preset torque is reached, at which point you should stop applying additional force.

Recommendations

For reliable results, calibrate the torque wrench periodically according to the manufacturer's recommendations and avoid using the tool beyond the specified 5–25 Nm range. Store the wrench in its carrying case and release the torque setting to the minimum position before long-term storage.
